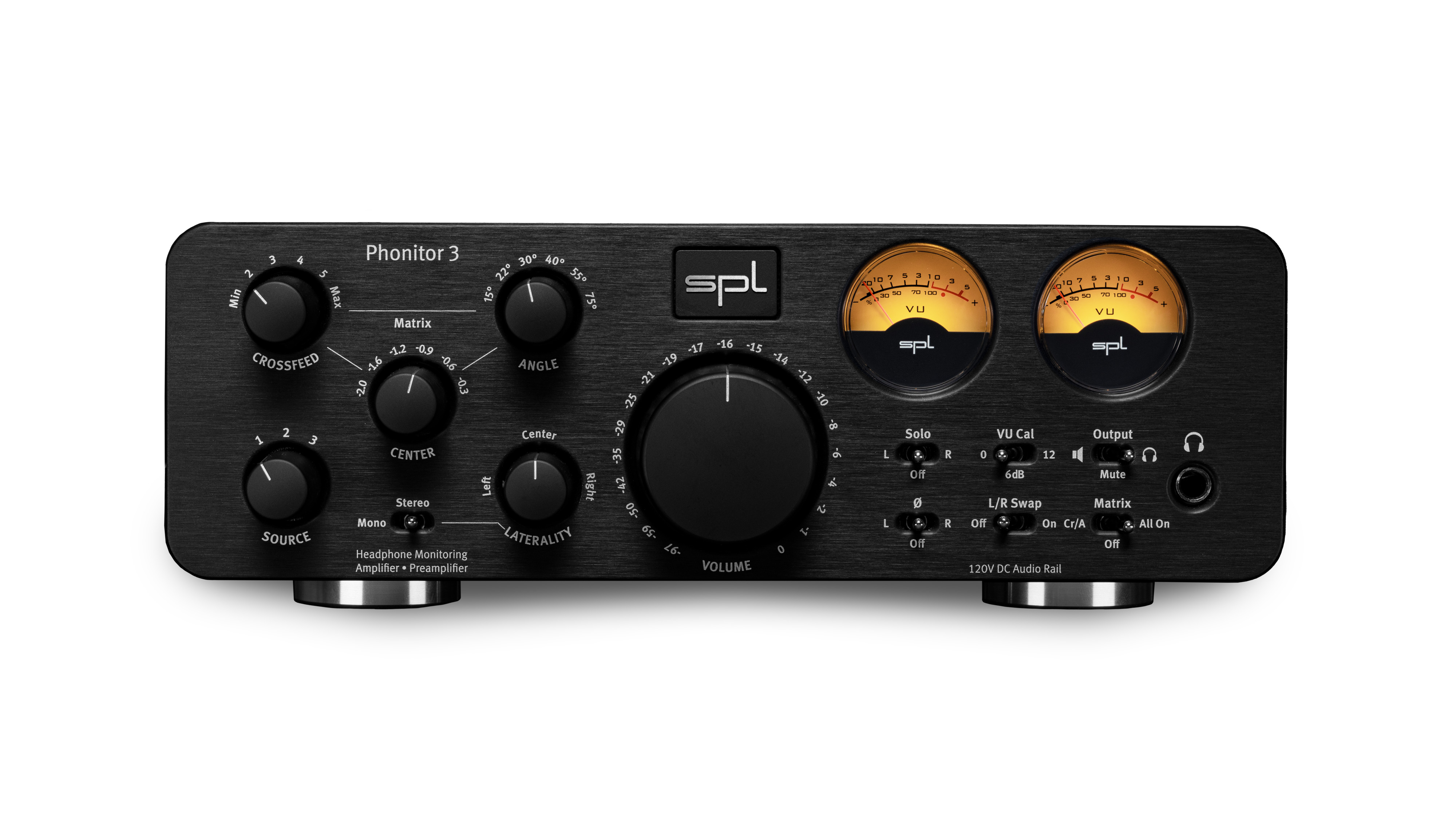

The headphone amplifier, monitoring controller and DAC with 120V technology Phonitor 3 DAC is not only the ultimate headphone amplifier and monitoring controller with 120V technology – the integrated DAC makes it the perfect monitoring centerpiece for demanding producers as well as sound and mastering engineers working with digital sources or in the DAW.
Whether if USB, AES/EBU or S/PDIF – the integrated DAC with analog SLP120 converts digital PCM audio signals with a resolution of 32 bit and a sampling rate of up to 768 kHz. It converts DSD signals with a resolution of up to DSD256.
On the analog side, the Phonitor 3 DAC, based on the SPL 120V technology, offers the same monitoring quality as the big SPL mastering consoles – on loudspeakers and headphones.
The analog Phonitor Matrix allows mixing and mastering on headphones in the highest quality – with the same spatial perception of the stereo stage as on loudspeakers.
Great sound – for headphones
The Phonitor 3 offers connection for a standard headphone with a stereo jack plug on the front. Thanks to the enormous output power, all kind of headphones are driven effortlessly. Thus, it plays out the advantages of the SPL 120V technology and rewards the listener with an honest, detailed and at the same time vivid sound experience.
Great sound – also for loudspeakers

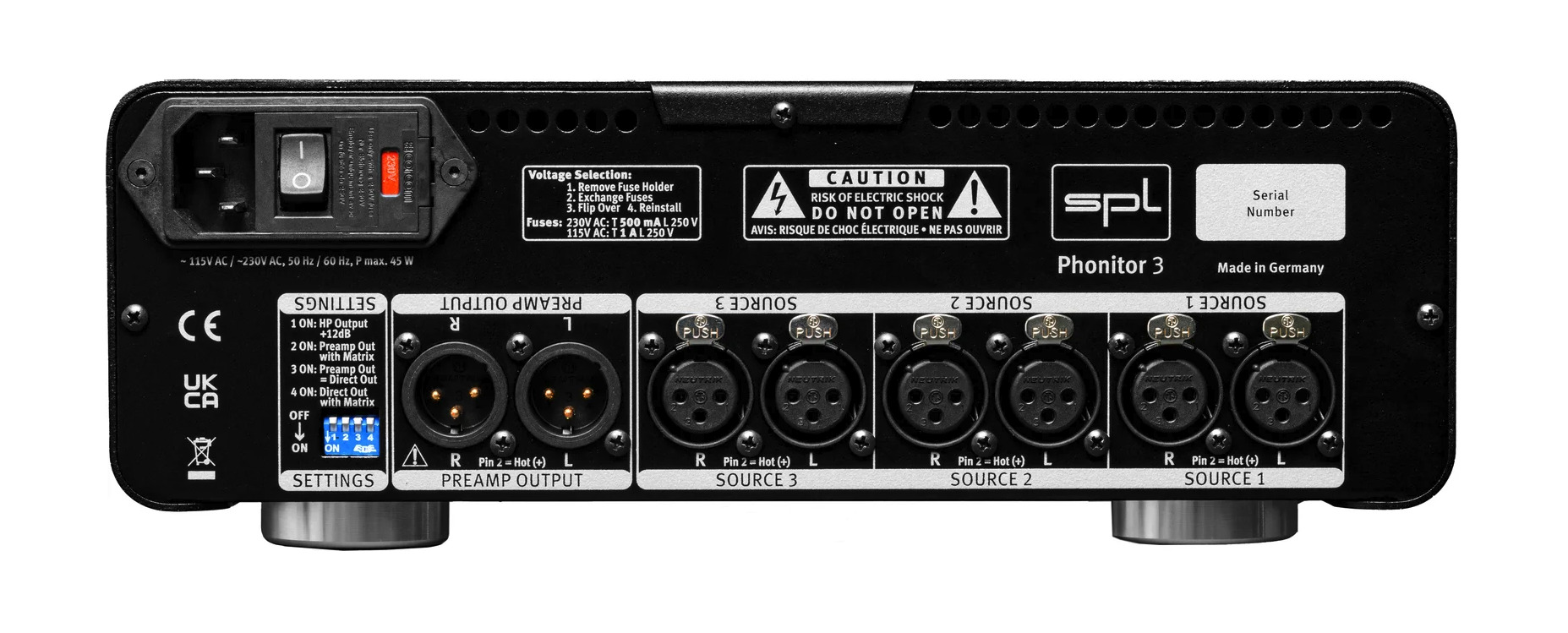

On the rear of the device, Phonitor 3 offers
a stereo output which makes it a high-quality
monitoring controller for any monitoring situation. Active speakers with an integrated power amplifier
or passive speakers in combination with a power amplifier can be connected at this output.
Monitoring at the highest level
Phonitor 3 offers the same key technology –
SPL 120V technology – and signal quality as the
big SPL DMC and MMC mastering consoles.
Χαρακτηριστικά
- 3 Analogue stereo inputs: 3x XLR stereo
- Output switch for easy switching from headphone to speaker playback and mute function in the centre position
- Phonitor matrix with crossfeed, speaker angle and centre level
- Mono/Stereo
- Laterality control: shifts the stereo image to the left or right to centre the stereo centre on the listening side
- Solo L/R
- Phase inversion for L and R
- L/R Swap
- 120 V technology
- Headphone output can be boosted by 12 dB via DIP switch on the rear panel
- Phonitor matrix can be output to preamp out
- Complete monitor controller
- Output power headphone output (1 kHz, 1 % THD, 250 Ohm): 2 x 5 W
- Output power headphone output (1 kHz, 1 % THD, 32 Ohm): 2 x 1 W
- Frequency range: 10 - 100,000 Hz
- Dynamic range: 134.5 dB
- Dimensions (W x H x D): 278 x 100 x 300 mm
- Weight: 3.9 kg
