Περιγραφή

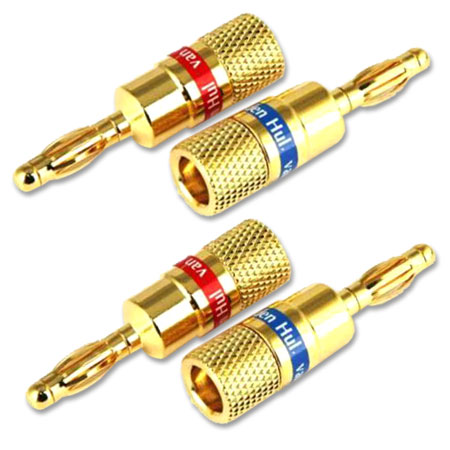

DIY SCREW-ON SPEAKER CONNECTORS 4 PCS

Versatile and easy-to-assemble DIY gold plated connectors. They offer high quality contact over long periods of intensive use and are very effective in keeping oxidation away.

24 carat gold plated, screw-on, solderless connectors
Available in packs of four angled spades (fork) or banana plugs with red or blue rings for polarity identification
Only suitable for multi-strand loudspeaker cable and wire types. Minimum values: AWG 12 (Ø2 mm), for the bare conductor, and Ø 6.5 mm for jacket diameter
The banana and the angled fork spade screw-on terminals are WBT binding post fitting. Both offer excellent mating properties and minimal contact resistance.
The high pressure clamping ensures low loss electrical connection and maximum signal transfer
Banana terminal (standard Ø4 mm pin)
Angled fork spade terminal fits studs from Ø 6.0 mm to Ø 8.5 mm.
Easy assembly instructions (4 steps):

Strip off 14mm of the multi-strand cable/wire jacket
Insert the stripped end through the screw-on collar
Fan out the strands and evenly fold them encircling the collar
Insert the banana pin/spade blade and screw-on to the collar
