Reloop Turn X

SKU: APA2024-01636
  • 36  Δόσεις
  • 2 years warranty
    2 Έτη Εγγύηση
  • 36  Δόσεις
  • 2 years warranty
    2 Έτη Εγγύηση
1.300
Διαθέσιμο για αποστολή εντός 2-3 ημερών
Παραλαβή απο το κατάστημα εντός 2-3 ημερών
Προσθήκη στο καλάθι
apa support icon
ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

TurnX

Sound & Quality par eXcellence.

Premium Class HiFi Turntable System

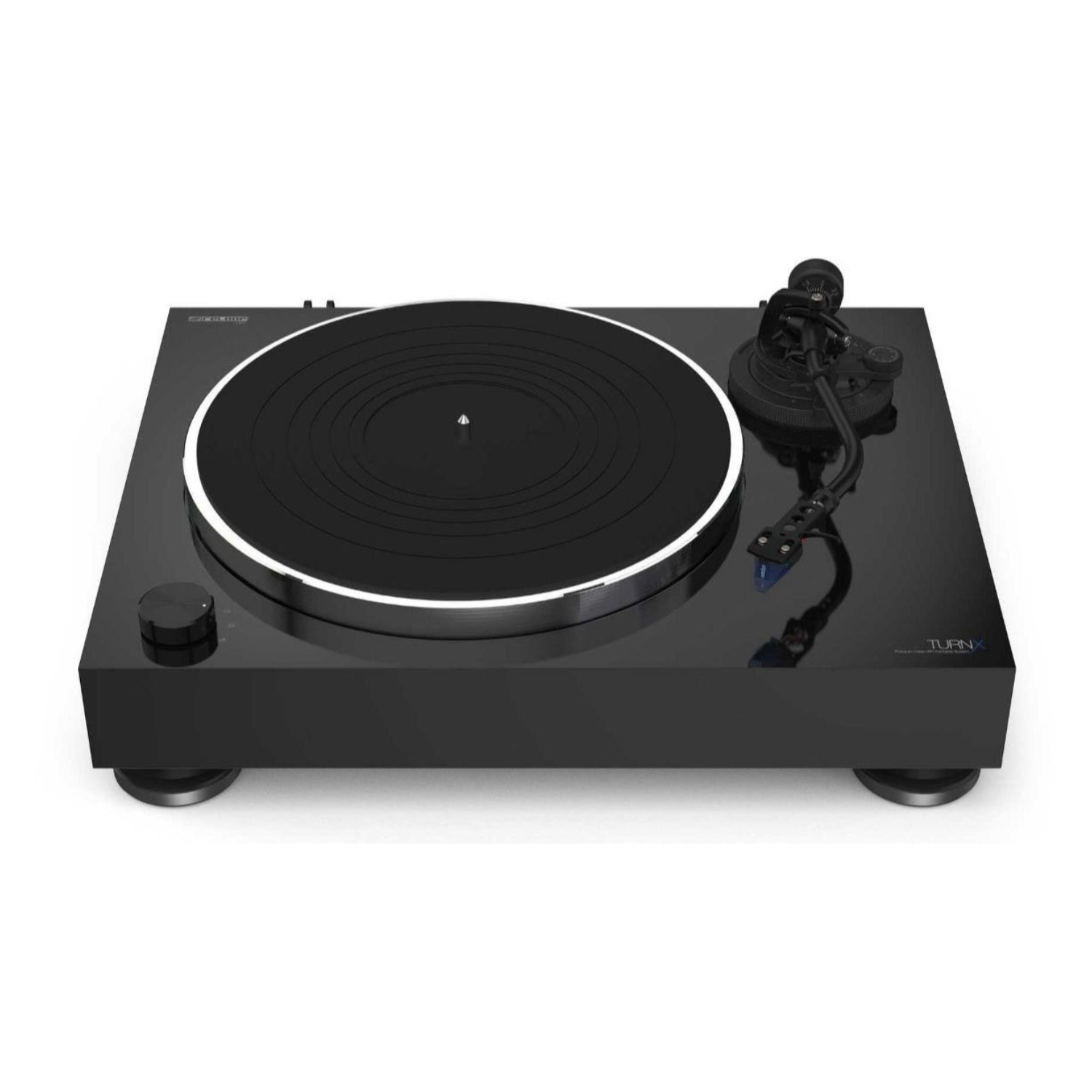

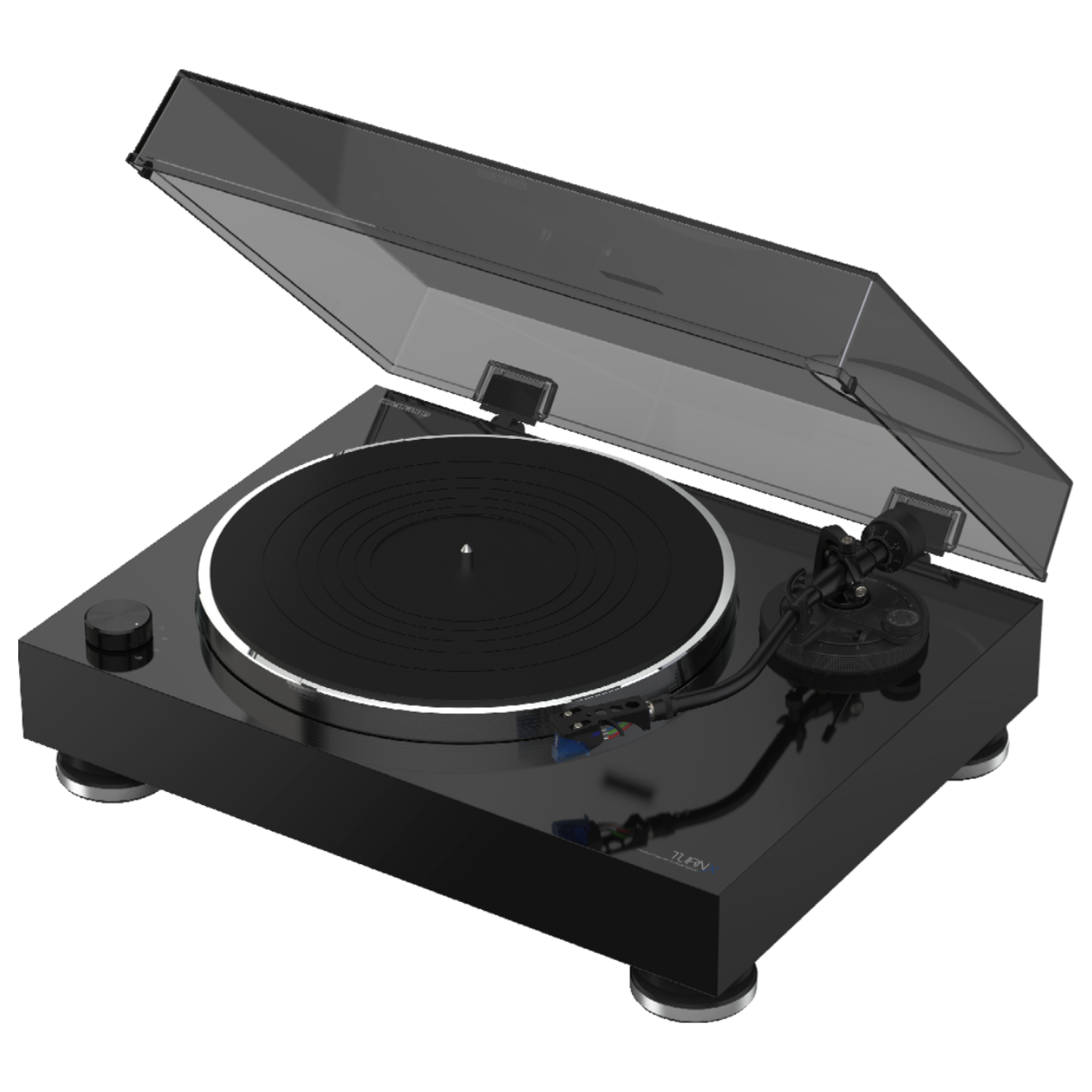

Reloop's Turn X is a quartz-driven, high-end turntable that impresses in more ways than just its sound and premium aesthetics.

Designed with precision from the outset

The Turn X's direct-drive DC motor offers incredibly accurate and consistent speeds. The high torque ensures lightning-fast start-up times and minimal variances of just +/-0.03%. The Turn X excels when operated in full manual mode, where its electronic brake and rotary switch for smooth starting and stopping, which also doubles as a speed selector (33, 45 and 78 RPM), shine.

Audiophile tonearm

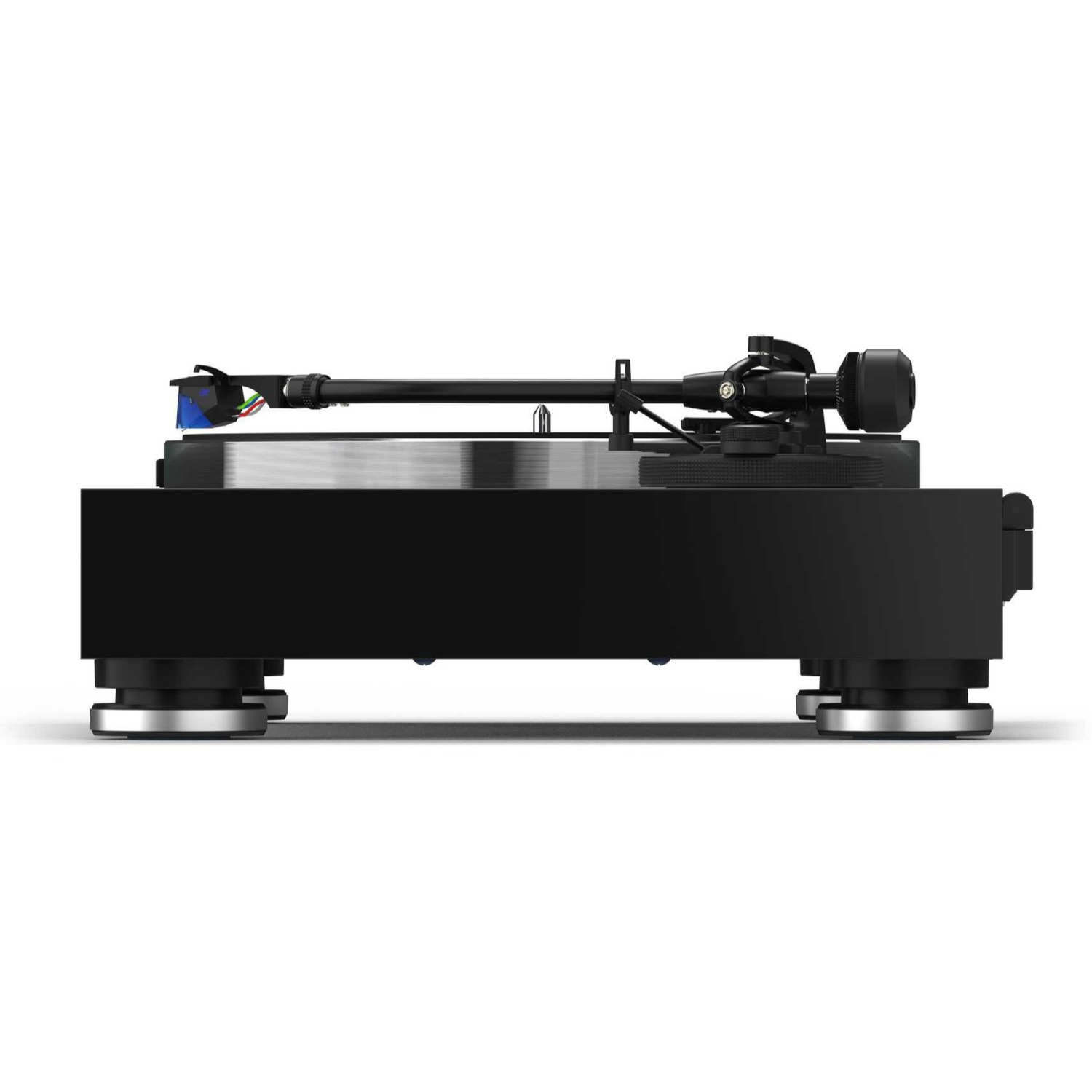

The statically balanced S-shaped tonearm can be adjusted in height to change the cartridge's vertical tracking angle (VTA). The tonearm design guarantees free and fluid movement and optimum cartridge performance.

Balance perfection

A solid aluminium block supports the record player's precision-machined die-cast platter. Its hefty 2.1 kg, 332 mm diameter and 22.5 mm thickness ensure smooth, even movement. The damping rubber coating on the back of the turntable and the rubber mat provide excellent isolation properties and minimise vibrations.

Crystal clear sound quality

The Turn X has a high-quality Ortofon 2M Blue cartridge pre-installed, ensuring excellent dynamics and sound resolution to satisfy even the most discerning audiophiles. Another highlight: The universal SME connector enables a quick and easy cartridge system change if required.

Sound and nothing but sound

The turntable's solid MDF chassis is exceptionally sturdy and robust, keeping unwanted resonances at bay from the outset. As a bonus, the Turn X is effectively decoupled thanks to the height-adjustable isolator feet.

Design without compromise

In addition to meeting the exacting demands of vinyl enthusiasts, the Reloop Turn X is a true visual showpiece. The record player's sleek design, sophisticated one-button control, and classy piano lacquer finish make it a real eye-catcher.

Attention to detail

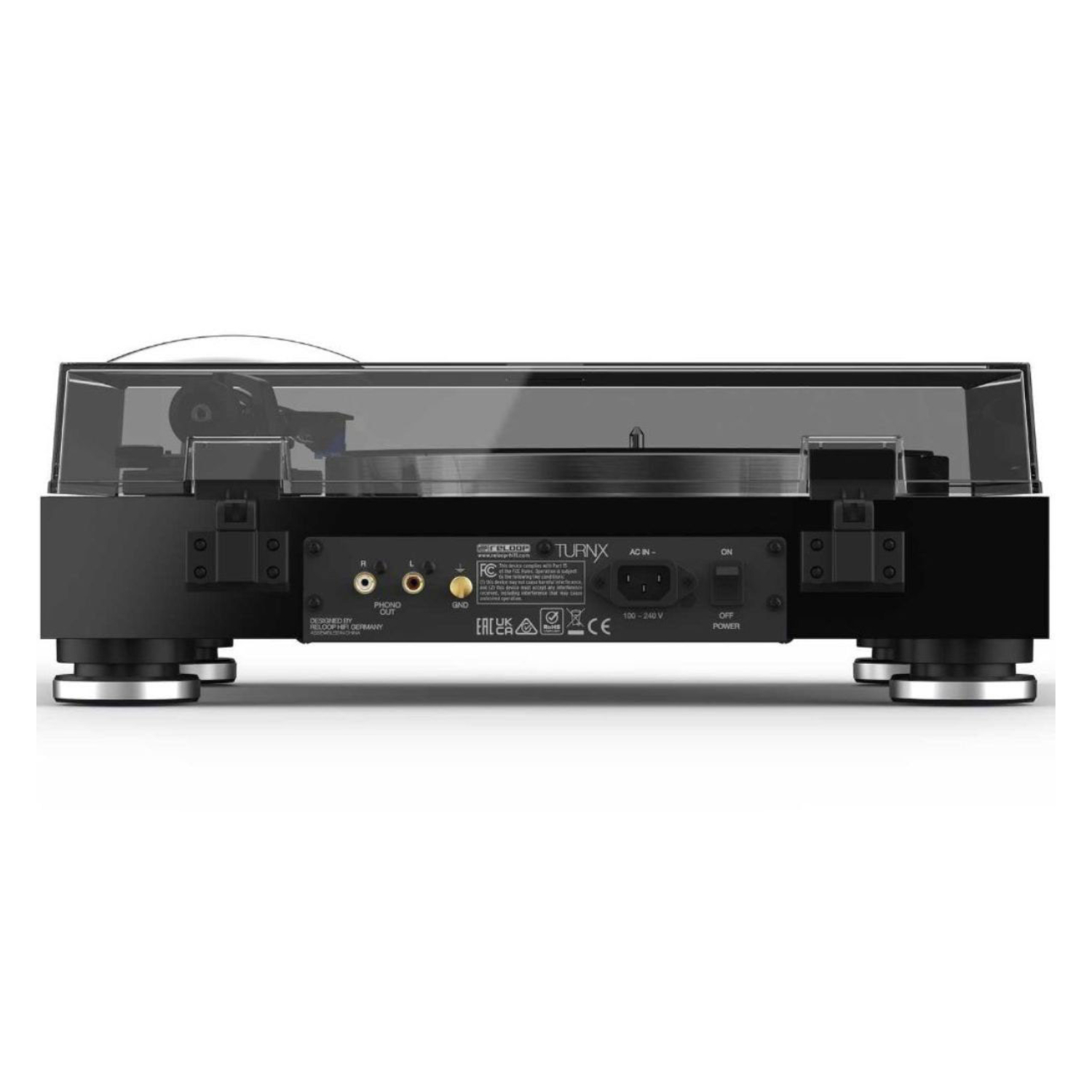

Last but not least, the Turn X features a gold-plated high-resolution phono output and a gold-plated ground connector for optimum signal transfer and corrosion resistance. Interference is reduced even further by the power switch's ultra-low noise insulation.

Χαρακτηριστικά

Turntable Section:

  • Type of turntable: Direct drive, fully manual
  • Drive: Quartz driven upper-torque direct drive with precision rotation
  • Motor: DC Motor, 16-Pole, 3-Phase, brushless
  • Rotation speeds: 33 1/3, 45 & 78 RPM
  • Starting Torque: More than 4500 g/cm
  • Start-up time / rpm change: Less than 0.3 sec.
  • Wow and Flutter: Less than 0.1% WRMS (JIS WTD)
  • S/N Ratio: More than 60dB (DIN-B)
  • Breaking System: Electronic brake

Turntable Platter:

  • Turntable Platter: Aluminium die-cast
  • 305 mm diameter
  • Weight About 2.1 kg

Tonearm Section:

  • Type: Static balanced S-Shape
  • Effective Length: 230 mm
  • Overhang: 15 mm
  • Tracking Error Angle: Less than 3 degrees
  • VTA Adjustment Range: 0-6 mm
  • Applicable Cartridge Weight: 17 – 25 g (incl. Headshell)
  • Anti-Skating Range: 0-3 g
  • Terminals: 1x PHONO Out (gold-plated), 1x GND Earth Terminal

Cartridge:

  • Type of cartridge: Ortofon 2M Blue
  • Output voltage at 1000 Hz, 5cm/sec.: 5.5 mV
  • Channel balance at 1 kHz: 1.5 dB
  • Channel separation at 1 kHz: 25 dB
  • Channel separation at 15 kHz: 15 dB
  • Frequency response: 20-20.000 Hz + 2 / - 1 dB
  • Tracking ability at 315Hz at recommended tracking force: 80 µm
  • Compliance, dynamic, lateral: 20 µm/mN
  • Stylus type: Elliptical
  • Stylus tip radius: r/R 8/18 µm
  • Tracking force range: 1.6-2.0 g (16-20 mN)
  • Tracking force, recommended: 1.8 g (18 mN)
  • Tracking angle: 20°
  • Internal impedance, DC resistance: 1.3 kOhm
  • Internal inductance: 700 mH
  • Recommended load resistance: 47 kOhm
  • Recommended load capacitance: 150-300 pF
  • Cartridge colour, body/stylus: Black/Blue
  • Cartridge weight: 7.2 g

General:

  • Power Supply: AC IN 100~240V, 50/60 HZ
  • Power consumption: 3W
  • Dimensions: 460(W) x 367.3(D) x 172.6(H) mm
  • Weight: 10.35 kg
  • Incl.: dust cover + 2x hinge, rubber mat, power supply cable, RCA cable with grounding connection (gold-plated), Headshell with Ortofon 2M Blue (pre-installed), turntable platter, operation manual & counterweight
