Eversolo AMP-F2

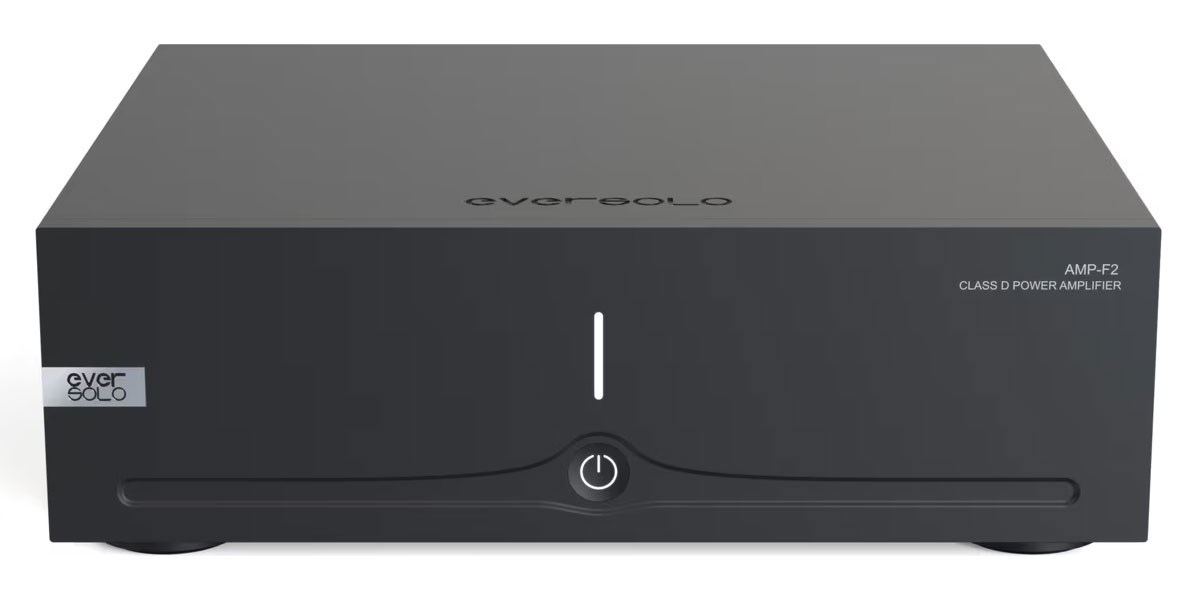

Eversolo AMP-F2 2ch Class D Power Amplifier

The Eversolo AMP-F2 is a 2 channel class D power amplifier, designed in collaboration with Starke Sound in California, and is based on the innovative NS600 module created by the Starke Sound team.

Pair with the DMP-A6 or A6 Master for the perfect mini system. The compact size of the AMP-F2 is a perfect match for the DMP-A6 / DMP-A6 Master / DAC-Z8 etc.

Key Features:

• 145W @ 8Ω (1% THD), 250W @ 4Ω (1% THD)
• 2 channel Class D power amplifier
• Bridgeable for mono applications
• Compact chassis is a perfect match for DMP-A6 / A6 Master / DAC-Z8 etc
• Developed in collaboration with Starke Sound
• NS600 amplifier module with PurePath™️ Ultra-HD technology
• Low-ripple, low-EMI switch mode power supply
• 12V trigger function works seamlessly with other Eversolo products
• USB to 12v trigger adpator cable included for connecting with DMP-A6/A6 Master/A8 streamers

Dynamic Power, Detailed Presentation

The Eversolo AMP-F2 is a 2 channel class D power amplifier, designed in collaboration with Starke Sound in California, and is based on the innovative NS600 module created by the Starke Sound team. The AMP-F2 features a high sampling rate of 600kHz and employs an efficient Class D amplification structure, coupled with optimised circuits to maximise audio quality. A newly designed SAPS audio-specific switch mode power supply significantly reduces noise and enhances dynamic performance. The AMP-F2 is also bridgeable, allowing flexible configuration for two channel or single channel setups.

Vigorous Output

The AMP-F2 is equipped with Starke Sound's NS600 amplifier module. Each channel can output a constant 250W RMS (4ohms) @ 1% THD+N. When bridged the AMP-F2 can support up to 450 W RMS (2ohms) with THD+N still below 1%. This ability to handle extremely low-impedance loads ensures ample energy even in large and challenging speaker setups, particularly during high-dynamic low-frequency outputs.

Accurate Sound, NS600 Module

The NS600 module by Starke Sound employs PurePath™️ Ultra-HD technology and advanced integrated feedback design, featuring high speed gate driver error correction functions. This technology achieves ultra-low distortion across the entire audio frequency range, delivering perfect high-end audio.

Powerful Drive

Featuring a 600W high-efficiency, low-ripple, low-EMI switch mode power supply, the AMP-F2 delivers consistent and powerful output, extremely low noise and enhanced dynamic performance across the system.

Environmentally Friendly Power Consumption

The AMP-F2 has an extremely low standby power draw (0.5W) and idle power consumption (14W) meaning it is kinder to your energy bill.

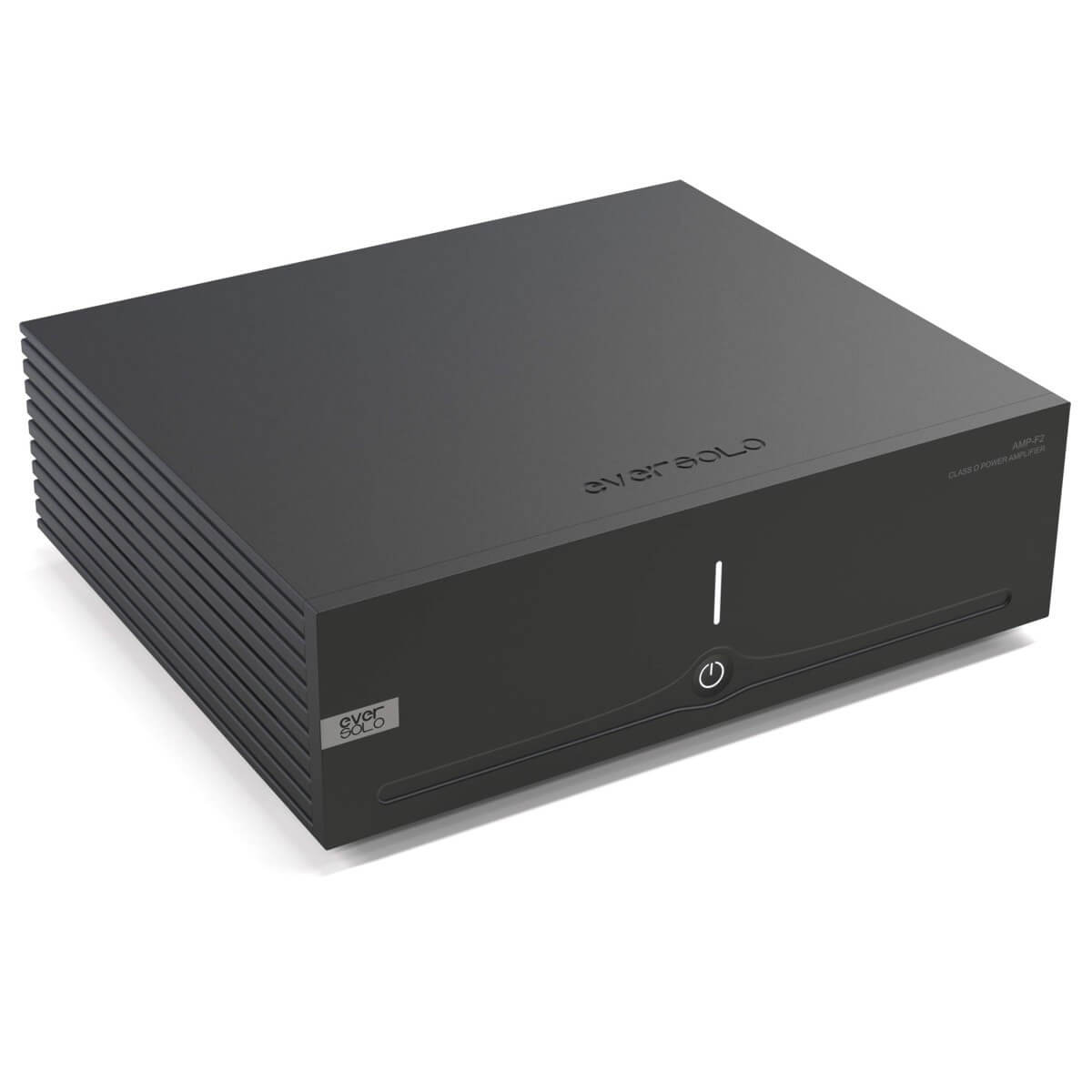

Aluminium Body, Shielded Design

The AMP-F2's chassis is made from aluminium with complete self-protection and an anti-interference design to avoid disturbances from various electrical environments.

The AMP-F2 is also designed to perfectly match the size of the DMP-A6, DMP-A6 Master, and DAC-Z8. IT is also compatible with the DMP-A8 and DAC-Z6.

One-touch Activation, Seamless Control

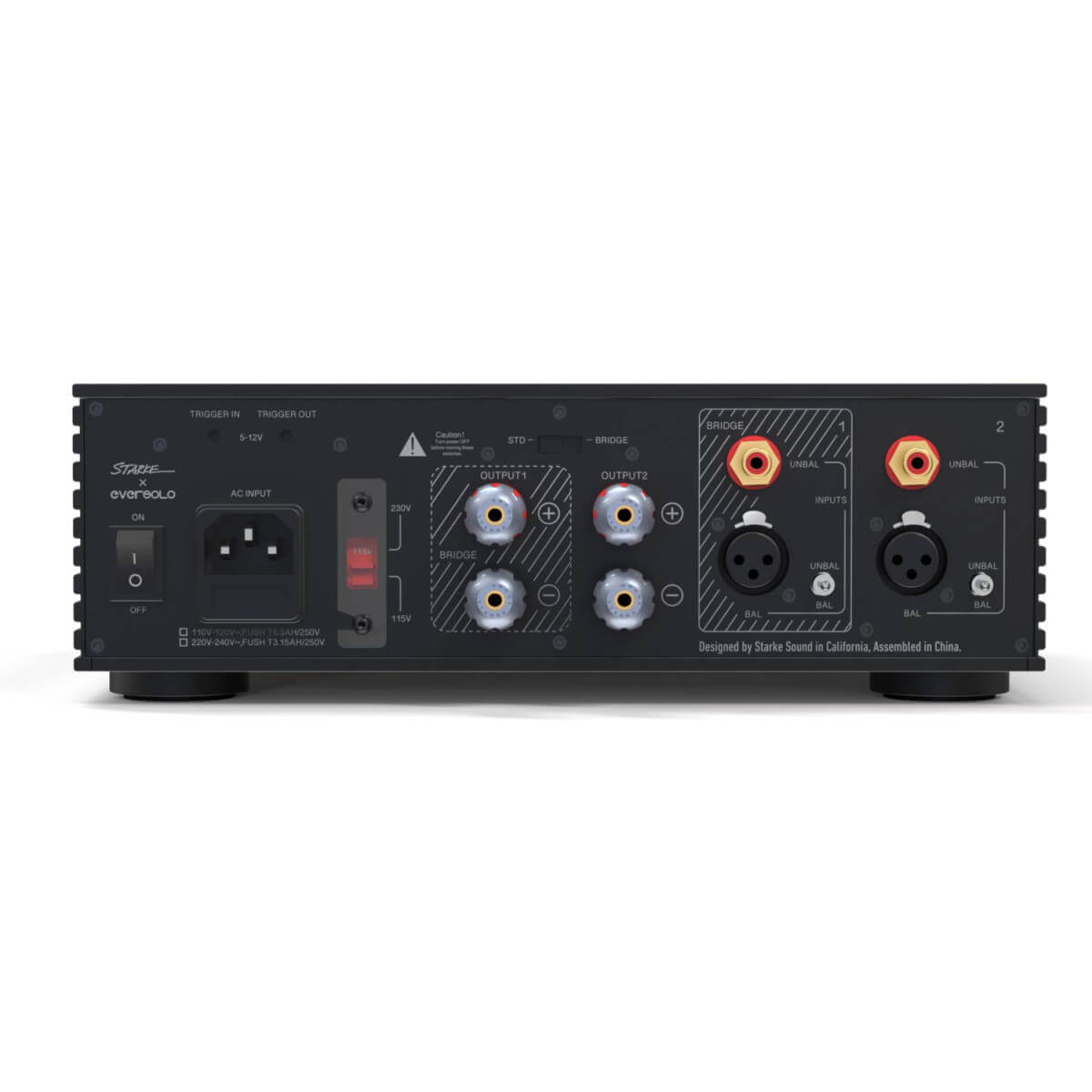

The AMP-F2 is equipped with standard 12V TRIGGER IN and TRIGGER OUT functions, allowing it to be synchronised with other devices that support the standard TRIGGER interface for power on and off; using the USB to TRIGGER adaptor cable provided with the AMP-F2, you can connect the USB Type-A interface of the DMP-A6 to the TRIGGER IN of the AMP-F2 to achieve synchronisation.
