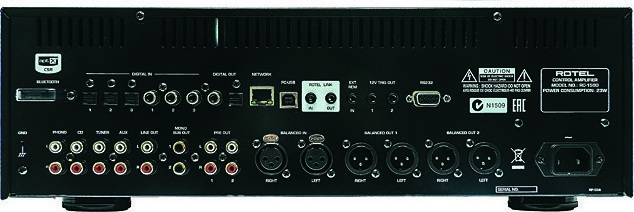

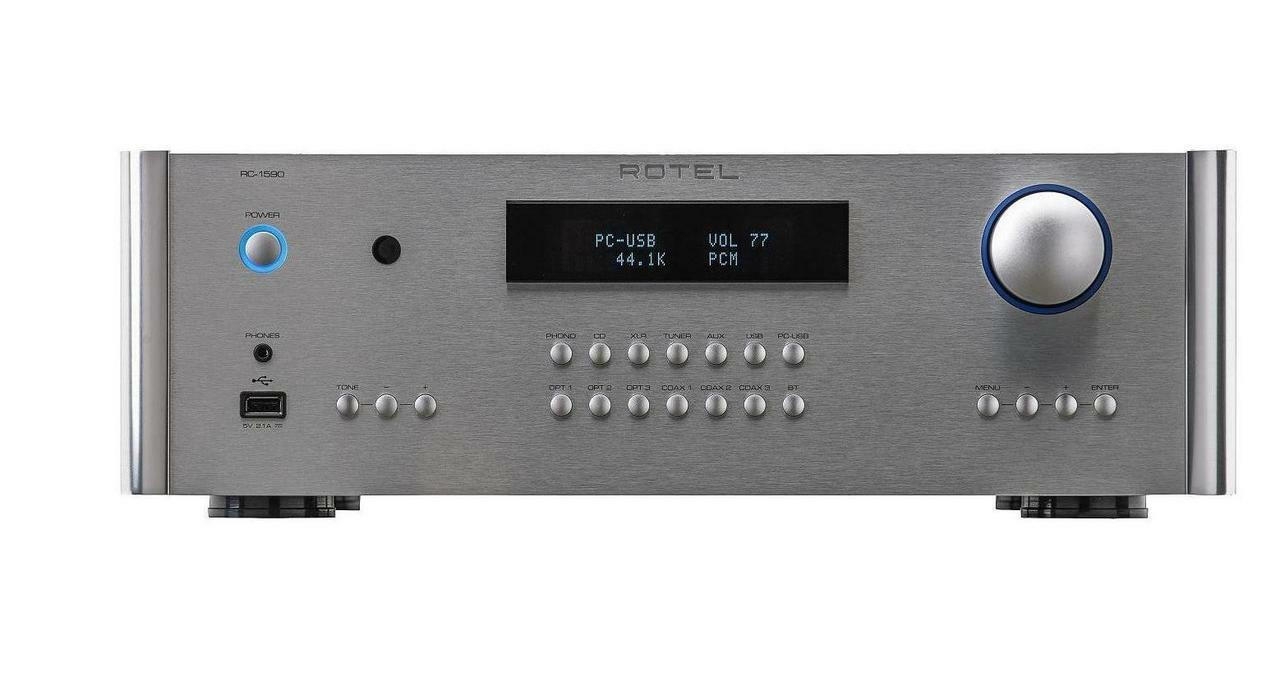

Rotel RC-1590 Silver

• Dimensions (W × H × D): 431 × 144 × 348mm, 17" × 5.7" × 13.9"
• Front Panel Height: 3U / 132.6mm (5.25")
• Power Requirements: 120V, 60Hz
• Power  Consumption: 45W
• Standby Power Consumption: <0.5W
• Net Weight:  9.2kg (20lbs.)
• Btu Rating : 78 BTU/h
• Total Harmonic Distortion (THD) (20Hz–20kHz):  <0.002%

Frequency Response

• Line Level Inputs: 10Hz - 100kHz ±0.1dB
• Digital Inputs: 20Hz - 20kHz ±0.5dB
• Phono Input: 20Hz - 20kHz ±0.2dB

S/N Ratio (IHF "A" Weighted)

• Line Level Inputs: 112dB
• Digital Inputs: 108dB
• Phono Input: 80dB

Input Sensitivity

• Line Level Inputs (RCA): 150mV
• Line Level Inputs (XLR): 250mV
• Phono Input (MM): 2.5mV

Input Impedance

• Line Level Inputs (RCA): 100kΩ
• Line Level Inputs (XLR): 100kΩ
• Digital Inputs: 75Ω
• Phono Input (MM): 47kΩ

Input Overload

• Line Level Inputs: 4V
• Phono Input: 30mV

Output Level

• Unbalanced (RCA): 1V
• Balanced (XLR): 2V

Channel Separation

• Line Level Inputs: >75dB
• Phono Input: >75dB

Tone Controls

• ±10dB at 100Hz / 10kHz

Coax/Optical Digital Input Signals

• LPCM (Up to 24-bit/192kHz)

Pc-Usb

• USB Audio Class 1 (up to 24/96)
• USB Audio Class 2 (up to 24/192)*
• *Driver Installation Required
• DSD/DoP 1x, 2x
