D-ILA Home Theater Projector

DLA-NZ500

All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Superior Resolution

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

Gen2 Frame Adapt HDR Function for

Brighter and More Colorful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyze the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colorful and have a wider dynamic range.

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximizes the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

Features

Completely redesigned interior and exterior results in world's smallest native 4K projector
New BLU-Escent Laser Light Source
New 80mm, 15-element, 11-group high-quality lens
Native Contrast Ratio of 40.000:1 translates to a spectacular Dynamic Contrast Ratio of ∞ :1
2x HDMI (32 Gbps, HDCP 2.3) inputs, supporting 4K60P input signals
HDR10+ metadata supported to automatically reproduce images as the creator intended.
Frame Adapt HDR dynamically tone maps any HDR10 content frame-by-frame or scene-by-scene and automatically performs adjustment to achieve optimal images. It includes improved gamma processing accuracy from 12- to 18-bit equivalent to reproduce smoother and finer gradation.
Auto Tone Mapping function automatically adjusts settings for optimum HDR10 image quality.
Color Management System with 6-axis Matrix
Wide Colour Gamut above exceeds DCI/P3 spec creating saturated, beautiful images that come to life.

Χαρακτηριστικά

Device

D-ILA Technology Yes
Chip Type 0.69-inch 4K D-ILA device
Native Resolution 4096 x 2160
Number Of Chips 3
Display Resolution 4096 x 2160

Light Source

Laser Yes
Type New BLU-Escent Laser Diode
Life Time (Standard Mode) 20000 hours


Brightness 2000 lm
Dynamic Contrast ∞ : 1
Native Contrast 40000 : 1
Dynamic Light Power control Yes
Modes Low,High,Balance,Off
Manual Aperture Yes
Range -15 (stops down) to 0 (opens up)
100% REC 709 Yes
Color Bit Depth 12 bit
ISFccc Certification [2] Yes

HDR

HDR10 Yes
HDR10+ Yes
Frame Adapt HDR Yes
Theater Optimizer Yes
HLG Yes
Mastering Info Display Yes
Info data MaxCLL and MaxFALL mastering data
HDR Picture Modes BT.709 / BT.2020 / DCI / HDR
Deep Black Tone Control Yes

Lens

Zoom 1.6 x
Throw Ratio 1.24 - 2.04 (16:9)
Diameter 80 mm
Build 15-element, 11-group in full aluminium lens barrel.
Lens Shift Yes
Range Horizontal ± 28 %
Range Vertical ± 70 %
Motorized Zoom Yes
Motorized Shift Yes
Motorized Focus Yes
Projection Display size (diagonal) 60 - 200 inch
Memory Function Yes
Number of user presets 5
Lens Cover Yes

HDMI

HDMI [6] Yes
Number of Inputs 2
Data Rate 32 Gbps
HDCP Version 2.3
4K60P signal input Yes
Video Signal range 480p, 576p, 720p 60/50, 1080p 60/ 50/ 30/ 25/ 24, 3840 x 2160p 60/ 50/ 30/ 25/ 24, 4096 x 2160p 60/ 50/ 30/ 25/ 24
PC Signal range 640x480, 800x600, 2048x1080, 1600x1200, 1920x1200, 2048x1536, 2560x1440
Input Level Adjustment Auto / Standard (16-235) / Enhanced (0-255) / Super White (16-255)
Color Space Range Auto/ YCbCr444 / YCbCr422 / RGB
EDID Modes Standard, Option1 , Option2 (older hardware may need to use Option1 or Option2 settings)

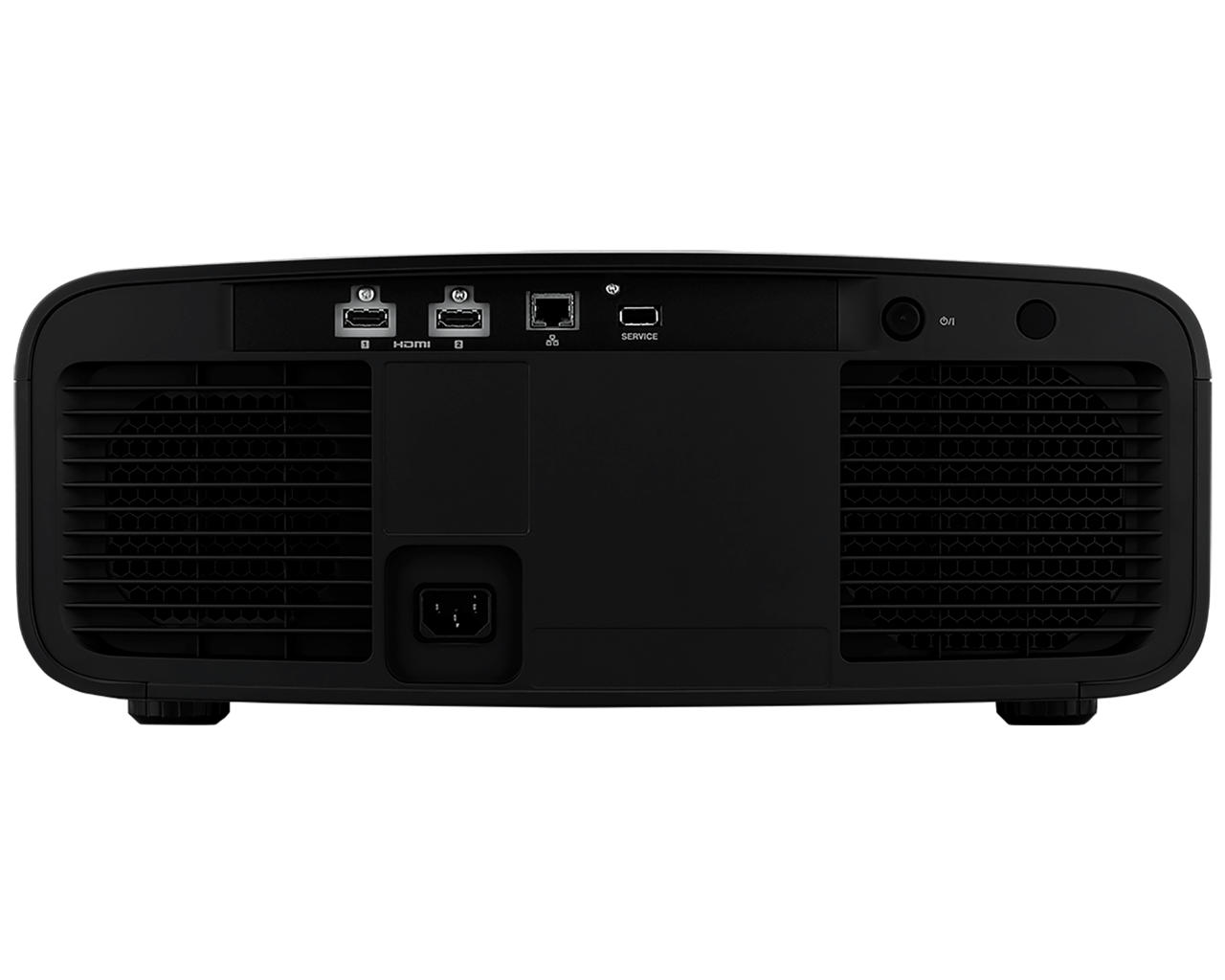

Connections

LAN Yes
Connector RJ45
Service Yes
Connector USB (Type A) for firmware update or backup

3D Capability Yes
3D Versions Frame Packing, Side-by-Side, Top & Bottom
Frame Packing Resolutions 720p 60/50, 1080p 24
Side-by-Side Resolutions 720p 60/50, 1080p 60/50/24, 1080i 60/50
Top & Bottom Resolution 720p 60/50, 1080p/24
3D Emitter (Optional) Yes, PK-EM2
3D Glasses (Optional) Yes, PK-AG3

Picture Settings

Picture Modes Natural, Cinema, Filmmaker, Vivid, Frame Adapt HDR1,Frame Adapt HDR2, HDR10+, HLG, FilmMaker, 4 User modes
Color Temperatures Xenon 1, Xenon 2, 5500K, 6500K, 7500K, 9300K, High Bright, HDR10+, HDR10, HLG, Custom 1, Custom 2
Gamma Processing Depth 12 bit
Gamma Adjust HDR (Auto), HDR(PQ), HDR(HLG), 2.2, 2.4, 2.6, Cinema 1, Cinema 2, 3 Custom mode
Color Management 6-Axis adjustable CMS
MPC Yes
Filmmaker Mode [7] Yes
Low Latency Mode Yes
Clear Motion Drive Yes
Auto Calibration Yes
Optional Probe needed Yes
Installation Mode Yes
Number of modes 5
Included settings Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Adjust, Installation Style, Keystone, and Aspect
Anamorphic Modes 4 Modes (A, B, C, D)
Control4 SDDP Yes

Power & Environment
