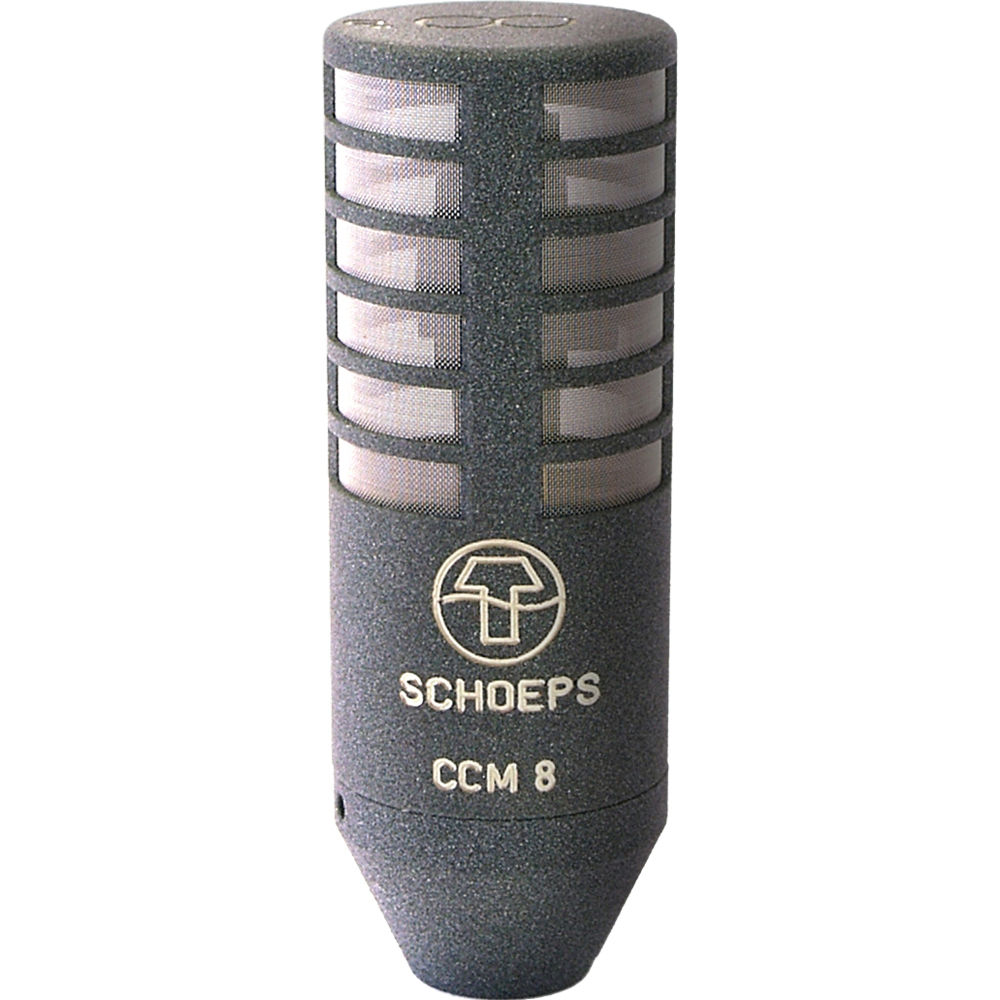

Schoeps CCM 8

This capsule type is a true dipole (bidirectional) transducer, operating with a single diaphragm. Its main axis is at a right angle to the capsule, and is marked at 0° and 180° with a red and a black dot respectively.


Προδιαγραφές:

• Pure pressure-gradient transducer
• Figure-8 pattern with near-ideal consistency across the frequency range
• Side-addressed (pickup perpendicular to the microphone body)
• Optimal for use in M/S and Blumlein stereo recording

Χαρακτηριστικά:

• Current consumption with 12 V: 8 mA
• Current consumption with 48 V: 4 mA
• Impedance: 90 Ω
• Minimum recommended load impedance: 600 Ω
• Low-cut frequency: 20 Hz
• Length (L version): without connector: 46 – 58 mm
• Length (U version): 46 – 58 mm
• Diameter: 20 mm
• Weight (U-version): 33 g
• Weight (L-version): 43 g
• Surface finish: matte gray
