SPL Hermes Black

Write your review |

SKU: APA2020-00903

Δωρεάν Μεταφορικά
36 Δόσεις
2 Έτη Εγγύηση

Δωρεάν Μεταφορικά
36 Δόσεις
2 Έτη Εγγύηση

5.085 €

Κατόπιν Παραγγελίας

Προσθήκη στο καλάθι

Δόσεις:

ΕΧΕΙΣ ΑΠΟΡΙΕΣ;

Οι ειδικοί μηχανικοί μας μπορούν να σε βοηθήσουν!

Περιγραφή

Mastering Router with dual Parallel Mix

Hermes revolutionizes mastering. Now it is possible to have an audio signal processed by up to eight 2-channel processors in any order that can be stored. At the push of a button you can compare up to four complex processing chains.

Connect, route, store, compare

Hermes accelerates mastering workflows in an unprecedented achievable way. The time-consuming replugging of the patchbay alone had made true comparison almost impossible.

Now you can change, store and compare processing chains in seconds. All with real buttons, relays and without additional software.

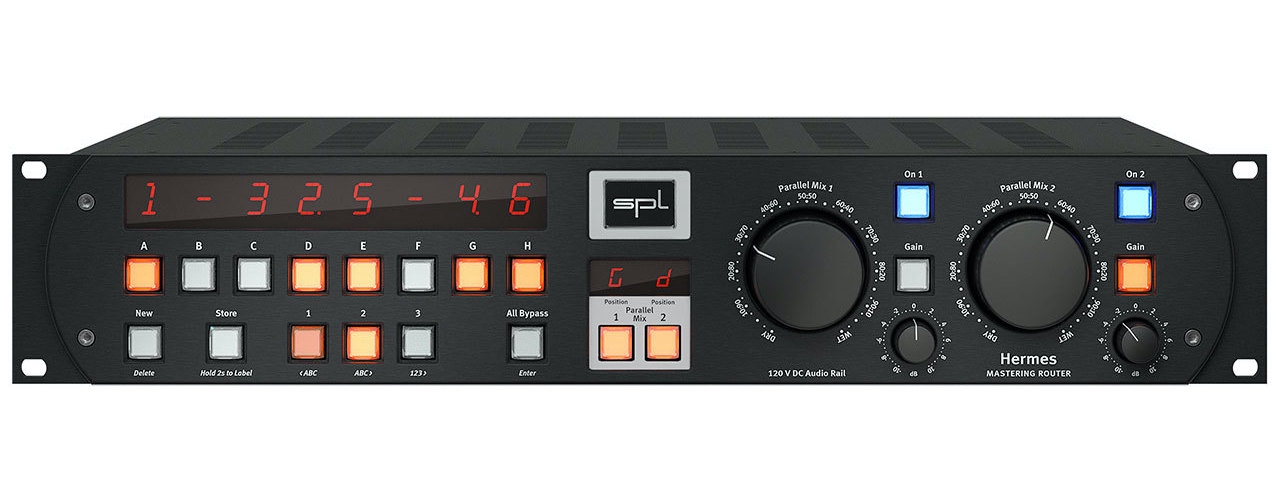

Simply push the processor buttons A to H in the order in which the audio signal should pass through the processors and store it.

All processors can be named for a better overview. The name always appears briefly in the display when an insert button is pressed.

Free routing of two parallel mix stages

Hermes has two parallel mix stages that can be freely assigned to each of the eight processors and stored with a processing chain.

This means that even two compressors with different parallel mix settings can be compared quickly and easily.

The routing is completely passive with gas-encapsulated and gold-plated high-end relays.

All active stages, such as the input/output stages and the parallel mix stages work in 120V technology.

Sends & Returns

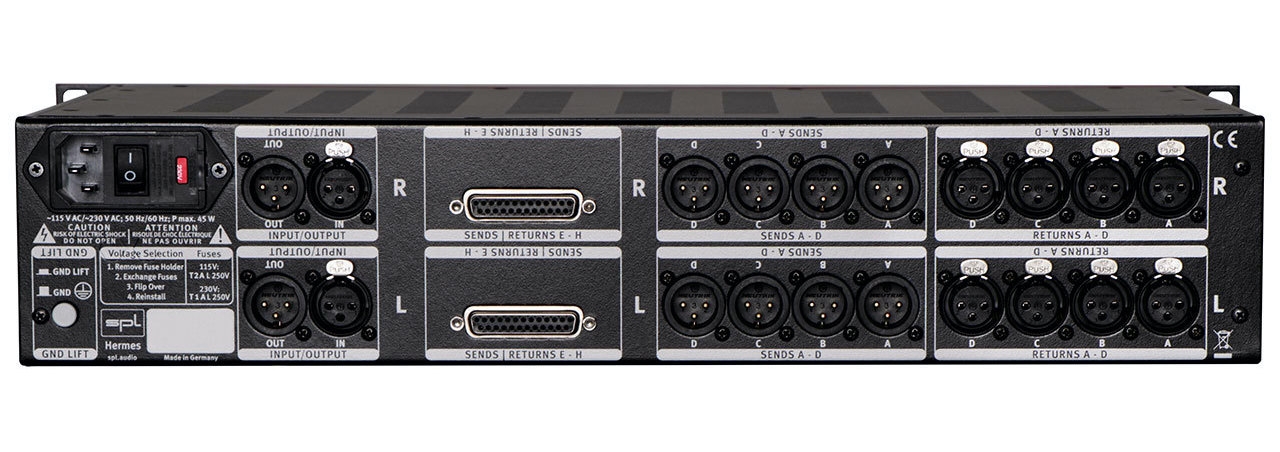

The inserts are connected with XLRs for the first four stereo processors and with DB25 for the second four stereo processors.

Specifications:

Analog inputs & output; XLR & DB25 (balanced)

Maximum input & output gain: 32.5 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Frequency range (-3 dB): 4 Hz to 300 kHz
Common mode rejection: -75 dBu
Crosstalk (1 kHz, 0dBu): -130 dBu
Crosstalk (1 kHz, 0dBu, P-Mix on): -110 dBu
Noise (A-weighted): -121 dBu
Noise (A-weighted, P-Mix on): -104 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 1 A
Fuse for 115 V: T 2 A
Power consumption: max. 40 VA

Dimensions & Weight

W x H x D (width x height x depth): 482 x 88 x 300 mm
Unit weight: 9 kg
Shipping weight (incl. packaging): 12 kg
