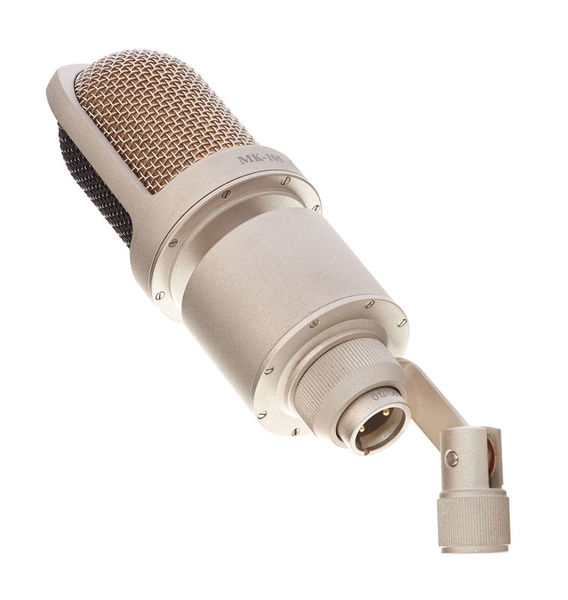

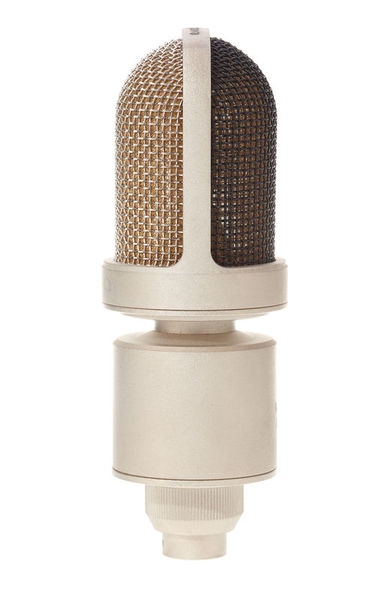

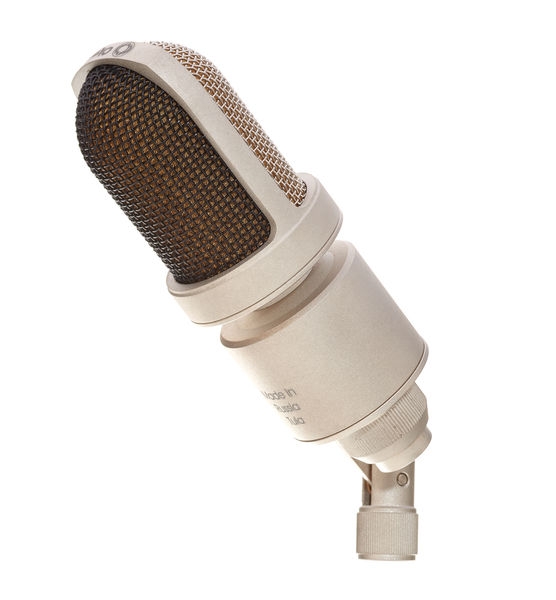

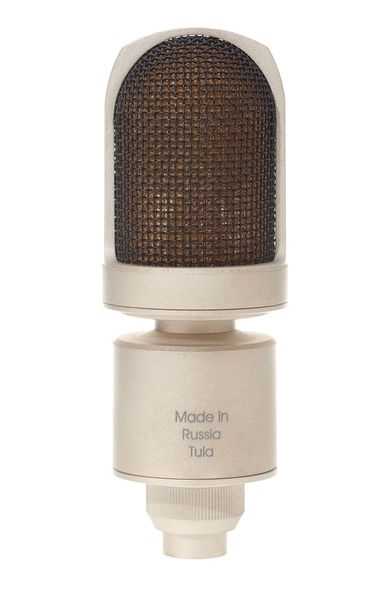

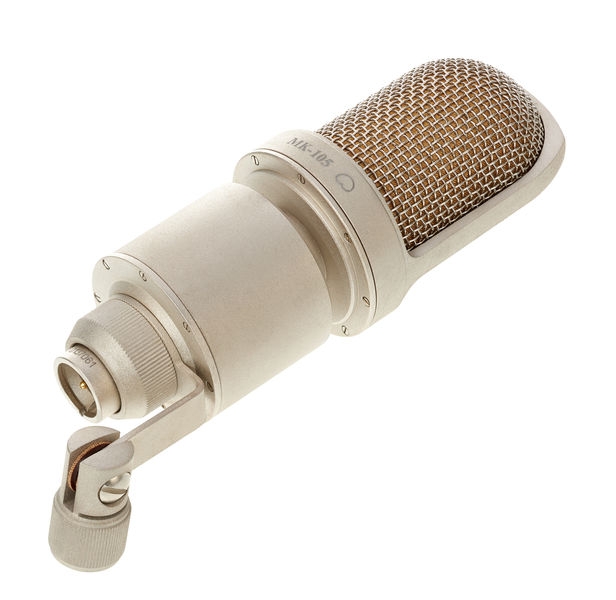

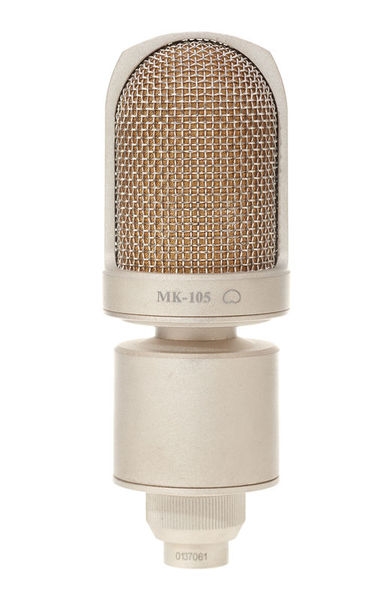

Oktava MK-105 Silver

The MK-105 retains the authorative lower midrange power Oktava is known for but adds some top end sparkle. The combination of the new capsule, headbasket and transformerless circuit produces a more transparent or hi-fi sound when compared to the classic transformer output coloration and soft top end of the MK-219/319.

The Capsule

The large 27.5 mm capsule with precision-drilled backplate holes in conjunction with the headbasket design produces a gentle +4dB rise from 4 kHz to 12 kHz to lend a touch of presence and air to vocal or instrument sources.

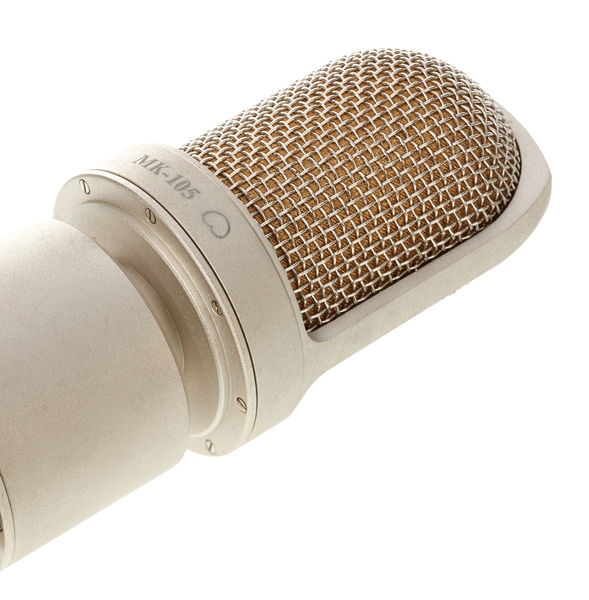

The Headbasket

Inside the headbasket, the capsule is mounted on a conical diffuser designed to reduce standing waves and smooth the capsule / headbasket system frequency response.

The Circuit

The MK-105 employs the highly regarded transformerless circuit found in one of the most widely used mics in existence – the MK-102 (over 90,000 in use worldwide) to deliver the alluring sound of direct phantom power applied to a large diaphragm capsule.

The Sound

On-axis - A carefully crafted “double peak” high frequency response provides subtle emphasis of both presence and “air” frequencies while suppressing the sibilance range. This results in a more modern or “Hi-Fi” sound when compared to the classic midrange-rich 219/319 sound but without the harsh sibilance found in many modern mics. Off-axis - Frequency response at 90 degrees resembles 0 degree response but attenuated a nominal l0dB. 180 degree rejection increases to 16dB below 2kHz but the top end over 4kHz stays just 8-10 dB or so below the on-axis response. This means the MK-105 has a very natural off-axis response out to 90 degrees with a pleasingly bright room ambience. The MK-105 excels where the recordist wants a large diaphragm cardioid mic with a musically useful proximity effect, a sparkling top end free from sibilance and a bright room ambience sound.

Specifications:

• Freq. Response, Hz: 20-20000
• Output sensitivity, mV/Pa: 16
• Max SPL, dB for 0,5% THD: 120
• Self Noise (DIN), dBa: <18
• Output impedance, ohm: 150
• Powering, V: 48
• The difference in free field sensitivity between 0° and 90°, db: ≥ 4
• The difference in free field sensitivity between 0° and 180°, db: ≤18
• Weight, g: 380
• Length /  max diameter, mm: 160 / 55

Included in delivery:

• 1 x microphon

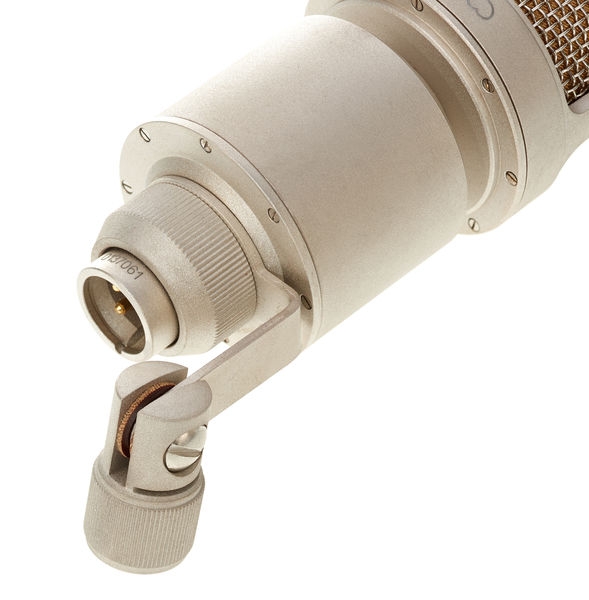

• 1 x mic holder (shock mount is not included)

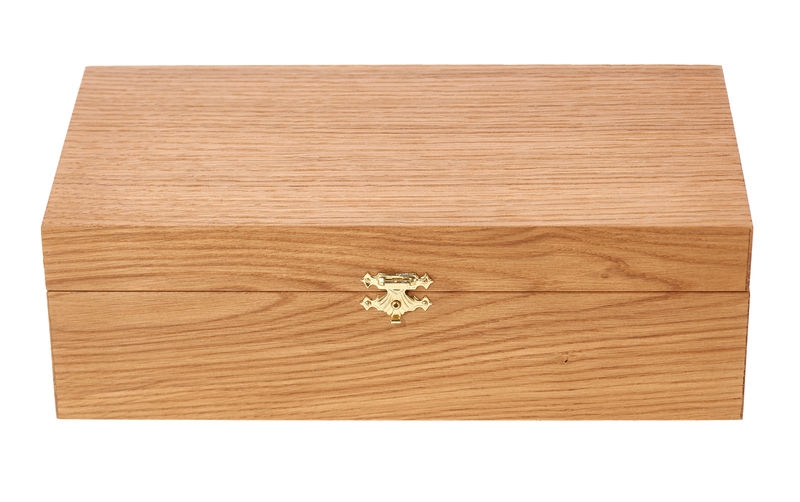

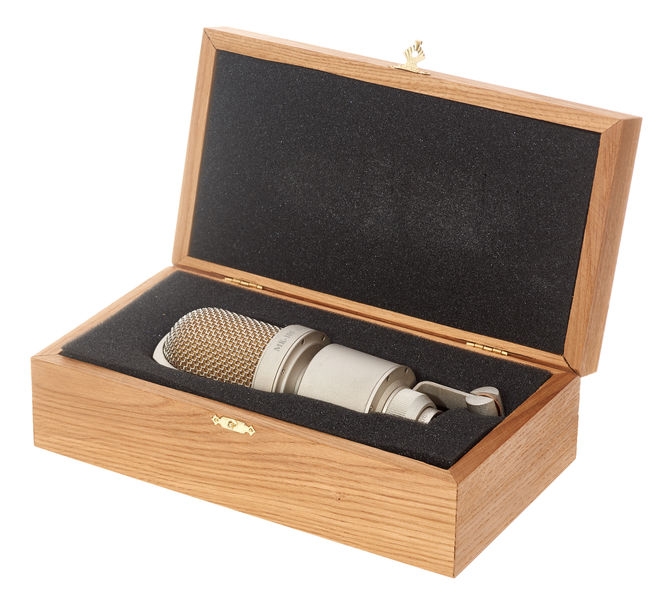

• 1 x wooden box
