Grace Design m905 Black

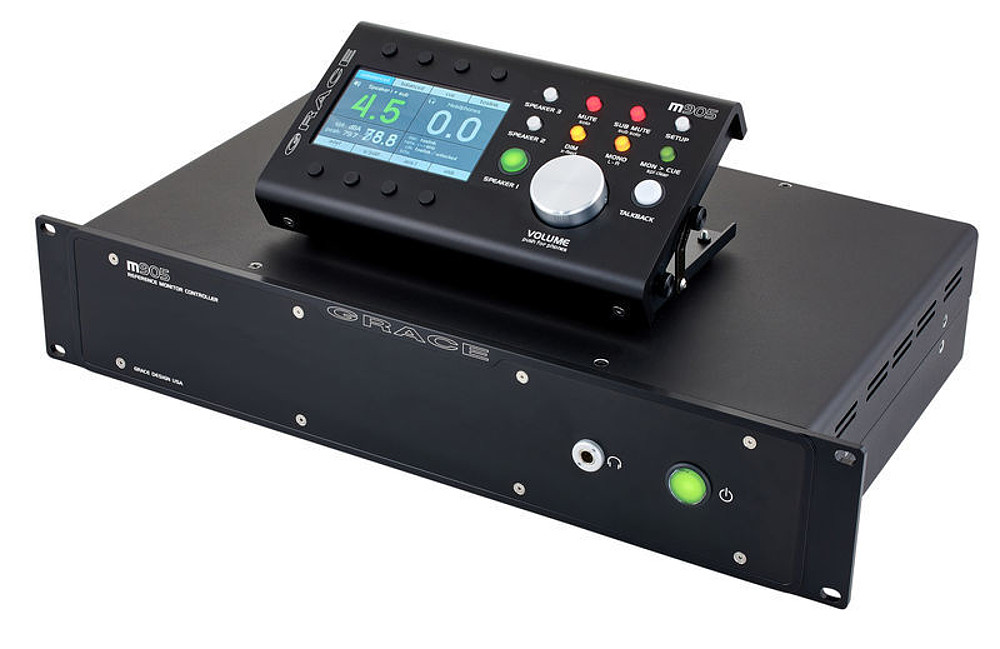

The m905 is our second generation stereo monitor controller, engineered from the ground up to provide unrivaled audio playback performance with a comprehensive and intuitive feature set.

Included are all requisite professional audio inputs and outputs, both analog and digital, with an asynchronous USB input for jitter free 24/192 computer playback. Outputs include 3 stereo speaker sets, two subwoofer, and our reference headphone amplifier.

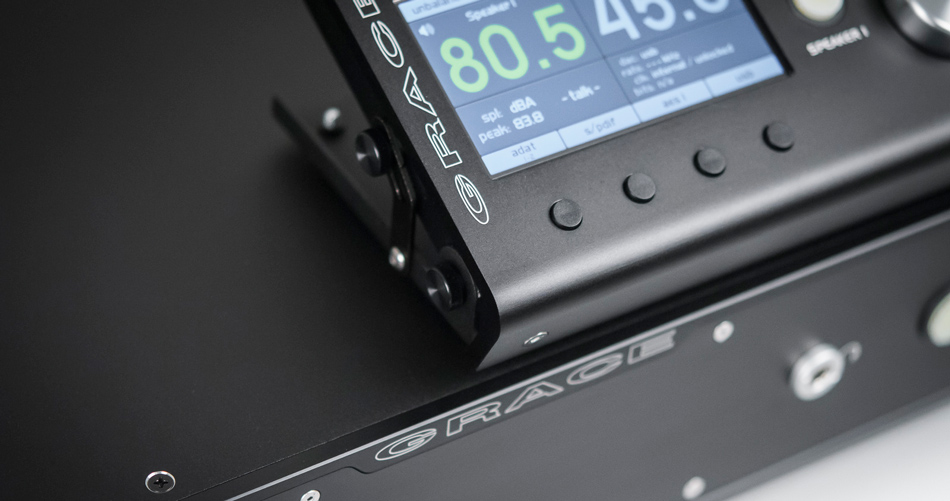

The remote is powerful, clean and ergonomic. It includes a headphone output, talkback microphone, and dedicated real time SPL meter. Controls are designed so that anyone unfamiliar with the system can operate it immediately and intuitively, then with a minimal time investment advanced setup and calibration features are accessed and programmed with ease.

The m905 offers more monitoring management features than any current monitor controller. But its true essence is as the most sonically reliable and innate centerpiece available for your studio – homebase for your ears, eyes and hands.

Χαρακτηριστικά:

• Analog inputs - unbalanced, balanced, CUE, talkback mic (additional balanced input available on the m905 Analog)
• Digital inputs - 2x AES3 (Single or dual-wire), 1 S/PDIF, 1 TOSLINK, ADAT (selectable in 4 pairs, or 2 pairs in S/MUX), USB, DSD128 (5.6448MHz)
• Audio circuitry designed for completely transparent and musical playback performance
• Asynchronous Class 2 USB playback supports up to 24 bit/192kHz
• Mastering quality DAC circuitry with configurable de-emphasis filtering
• Hybrid RCU with hardware switches, large level encoder and graphical LCD
• LCD display shows input, level, output, SPL and DAC status plus a full calibration menu
• RCU includes built in microphone for talkback and onboard SPL meter
• SPL meter features include level, peak, fast and slow modes, A & C weighting
• Precision .5 dB step level control for speakers and headphones
• Reference headphone amplifier circuitry, with outputs on both the RCU and ACU
• Dedicated mono, dim, mute and sub mute switches
• Mono mode can be set to L+R summed, L only in both channels, or R only in both channels L solo, R solo, L-R and sub solo modes are available
• 3 available stereo speaker outputs, with two assignable mono sub outputs (or single stereo sub output)
• Multi-mode SUB/ DAC/ METER out
• SUB out mode for stereo or multiple mono subwoofer outputs
• DAC out mode for a fixed DAC output fed by the selected digital input
• METER out mode fed by selected input signal (digital or analog), configurable with a fixed level or to follow the monitor level
• Detachable RCU tilt base
