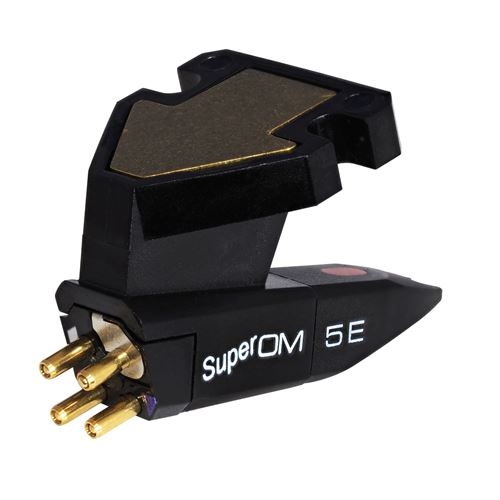

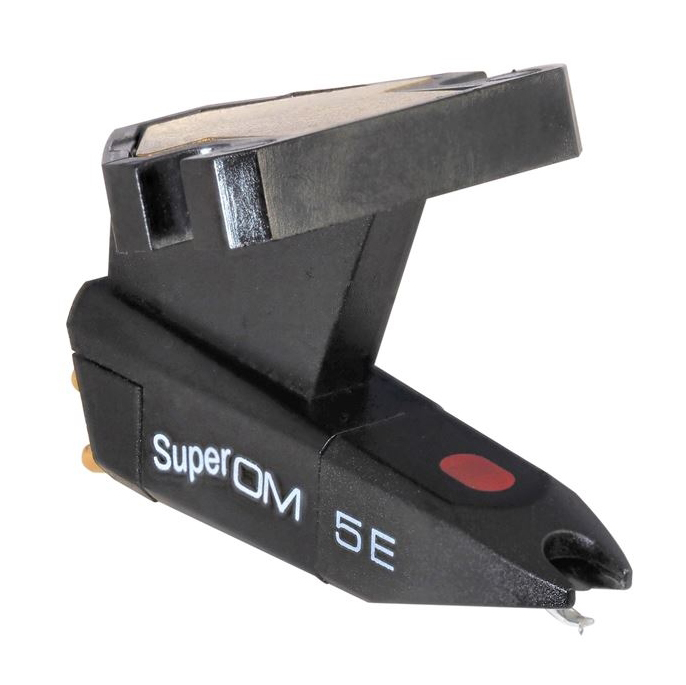

The Super OM 5E major improvements:
1. By means of computer simulations it has been possible to define the natural pivot point of the system with unprecedented accuracy while achieving an optimum oscillation balance. The result: improved linearity, higher channel separation and reduced distortion.
2. Slit less than 1 mm dia. hollow pole pins significantly reduces eddy current losses caused by magnetic hysteresis. This technology extends the frequency range and improves phase linearity.
3. OM Super 5 cartridge body is manufactured from a Noryl (plastic & glass compound) which ensures high rigidity and freedom from resonances.
Optimal fit and sound reproduction
If your tonearm has a standard headshell or a cartridge mount, then step up to optimal sound reproduction with OM’s. A glance at anyone of these cartridges will reveal Ortofon's answer to perfect tonearm matching. Ingeniously tucked into the top of the mounting bracket is a tiny, removable weight-plate.
If your tonearm is an standard tonearm, just leave the weight-plate. If your tonearm is one of the low mass types, then simply remove the weight. The mass of your OM cartridge is now a mere 2.5g.
Super OM 5E features Elliptical stylus that provides balanced and distortion-free playback. Elliptical diamonds are able to follow the groove oscillations more accurately than spherical diamonds due to their contoured shape. This results in better tracking and less distortion.
Styli types and interchangeability
The OM 5s features a Spherical diamond. Spherical diamonds are the simplest and most robust diamonds. The OM 5E and Super OM 5E feature an Elliptical diamond.
In the development of OM cartridges, a major objective was to provide the music lover with the opportunity to optimize sound reproduction without having to replace the entire cartridge. Instead of being merely intended for replacement purposes following wear or damage, the OM 5 Series allows you to step up to better sound by simply upgrading the stylus.
Specifications :
- Output voltage at 1000 Hz, 5cm/sec. - 4 mV
- Channel balance at 1 kHz - 1.5 dB
- Channel separation at 1 kHz - 22 dB
- Channel separation at 15 kHz - 15 dB
- Frequency range at - 3dB - 20-25.000 Hz
- Frequency response - 20-20.000 Hz ± 2 dB
- Tracking ability at 315Hz at recommended tracking force - 65 µm
- Compliance, dynamic, lateral - 20 µm/mN
- Stylus type - Elliptical
- Stylus tip radius - r/R 8/18 µm
- Tracking force range - 1.5-2.0 g (15-20 mN)
- Tracking force, recommended - 1.75 g (17.5 mN)
- Tracking angle - 20°
- Internal impedance, DC resistance - 1 kOhm
- Internal inductance - 580 mH
- Recommended load resistance - 47 kOhm
- Recommended load capacitance - 200-500 pF
- Cartridge colour, body/stylus - Black/Black
- Cartridge weight incl. extra weight - 5 g
- Cartridge weight excl. extra weight - 2.5 g
