Sennheiser SR-IEM-G4-G

Name: Sennheiser SR-IEM-G4-G
Brand: Sennheiser
SKU: APA2022-10255
Price: 643.5 EUR
Availability: BackOrder

Write your review |

SKU: APA2022-10255

643 ,5 €

Available for shipping within 2-3 days

Collect from our store within 2-3 days

Add to cart

Instalments:

List

NEED HELP?

Our expert engineers can assist you!

ONLINE GUIDE

Read our buyer's guide for Aκουστικά

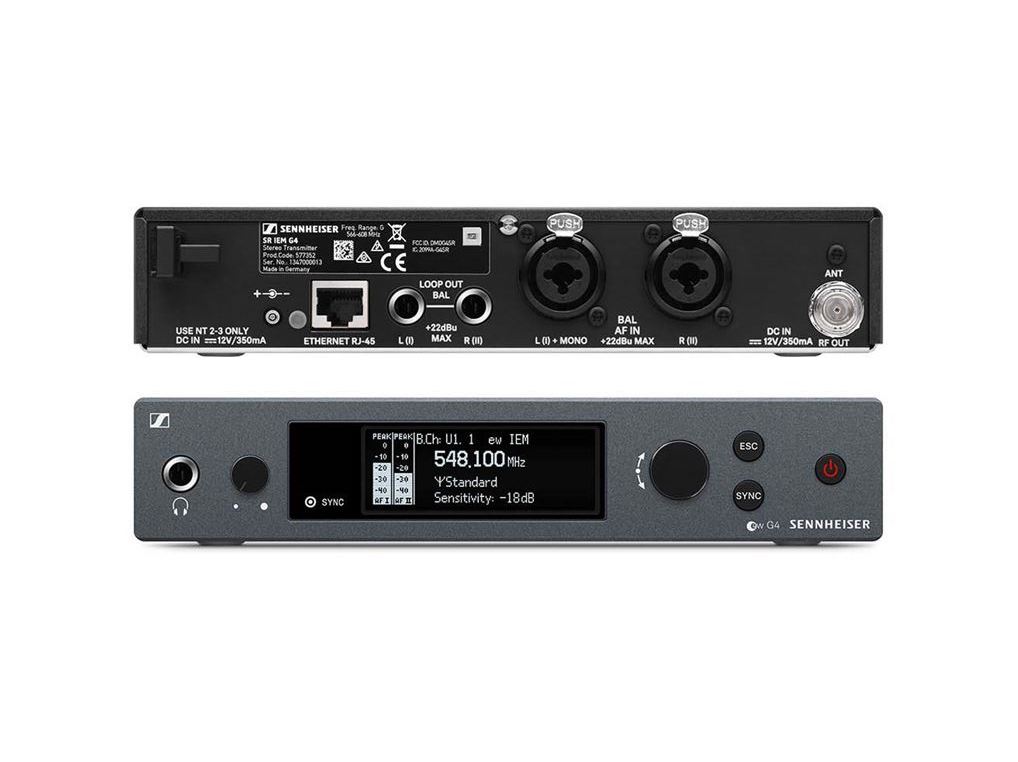

Half-rack stereo transmitter in a full-metal housing with OLED display for full control

Easy and flexible wireless synchronization between transmitter and receiver via infrared

Compatible with Sennheiser WSM control software for flexible frequency allocation

Up to 16 compatible channels

Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range

Transmission Range: up to 100 meters / 300 feet

High RF output power (up to 50 mW) depending on country regulations

Compatible with wireless speaker system LSP 500 PRO

Specifications

Frequency range

Weight: Approx. 980 g
Dimensions: Approx. 202 x 22 x 43 mm
Compander: Sennheiser HDX THD, total harmonic distortion: <0.9 %
Audio input: 2x XLR-3/ (6.3 mm) jack combo socket, electronically balanced
Audio output: (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio: >90 dB
RF output power: switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth: up to 42 MHz
Peak deviation: ±48 kHz
Nominal deviation: ±24 kHz
Modula: ion: Wideband FM stereo (MPX pilot tone)
Power supply: 12 V DC
Current consumption: max. 350 mA
Max. Input voltage: +22 dBu
Transmission frequency: Max. 1680 frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation 6 frequency banks with up to 16 programmable channels
AF frequency response: 25 Hz to 15 kHz
Temperature Range: -10 °C to +55 °C
Frequency stability: ±10 ppm
Antenna Output: BNC socket, 50 Ω
