Apogee Duet 3 Limited Edition

SKU: APA2023-00993
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
868
Available for shipping within 2-3 days
Collect from our store within 2-3 days
Add to cart
apa support icon
NEED HELP?

Our expert engineers can assist you!

guide image
ONLINE GUIDE

Read our buyer's guide for Κάρτες Ήχου

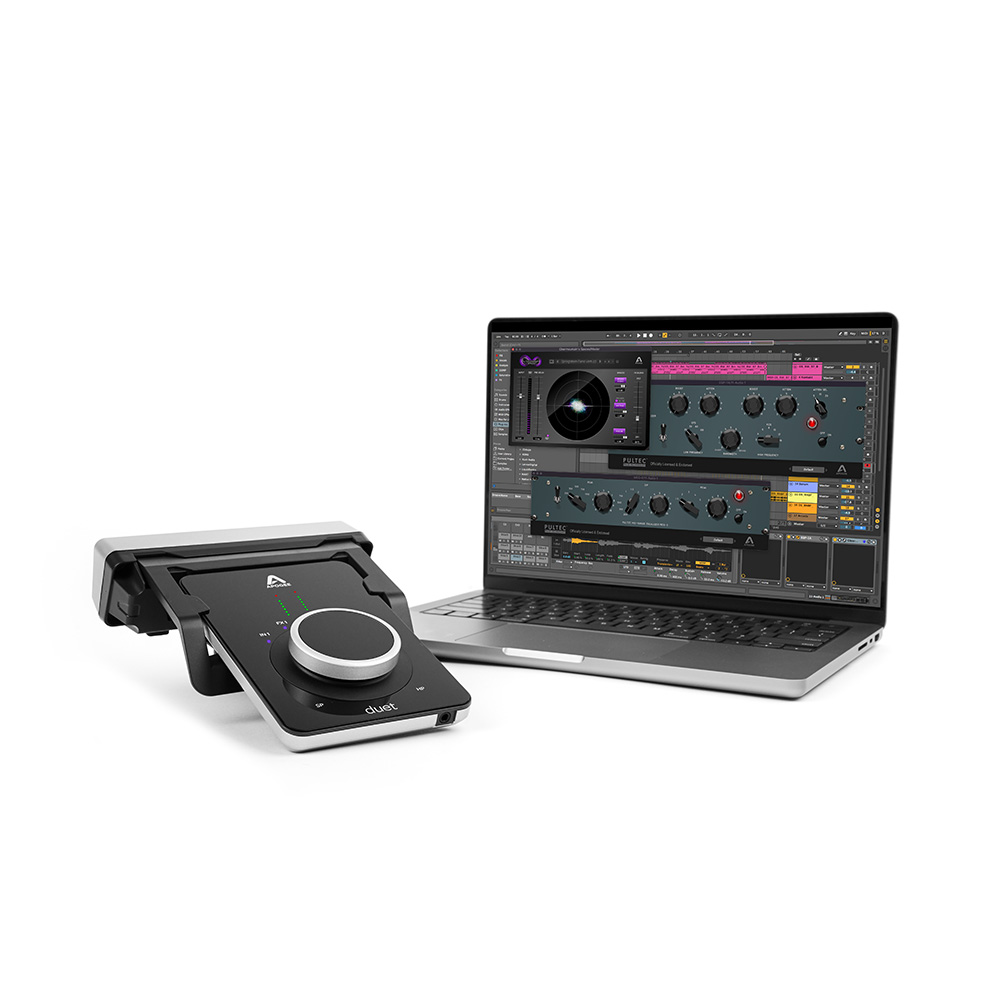

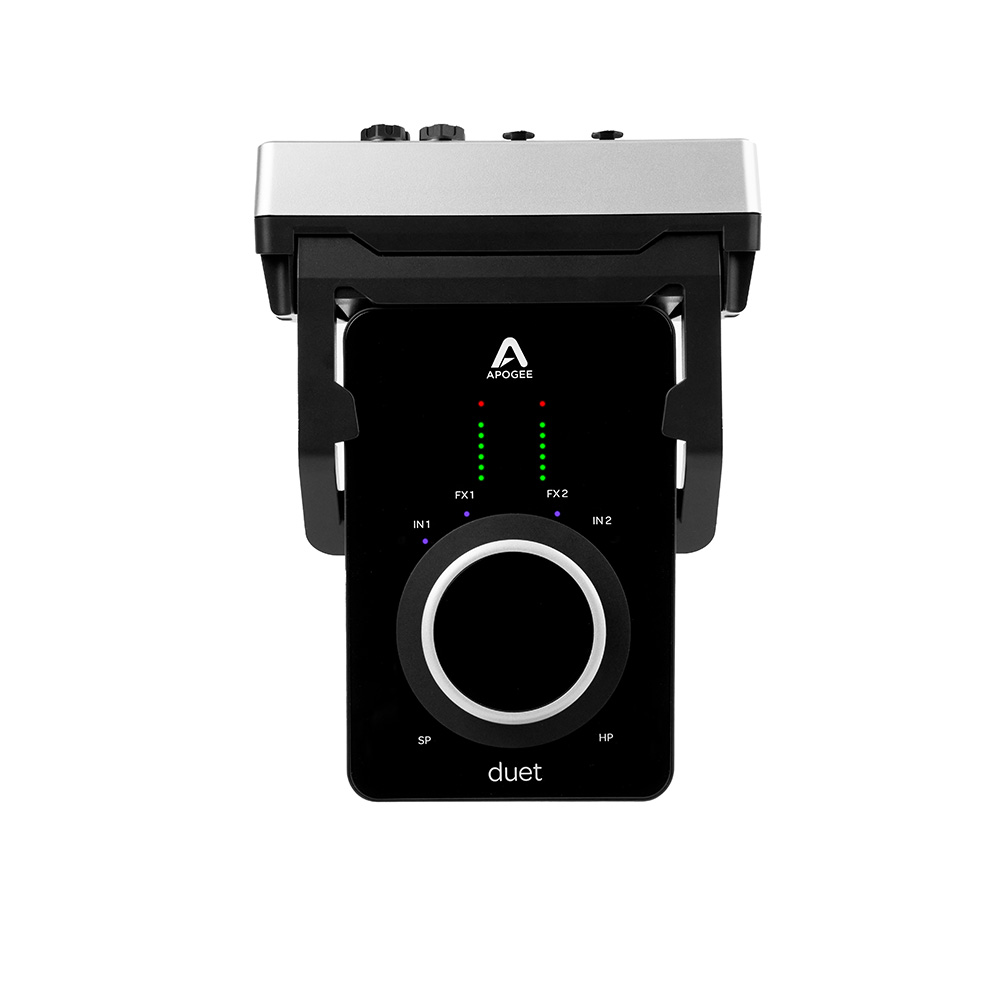

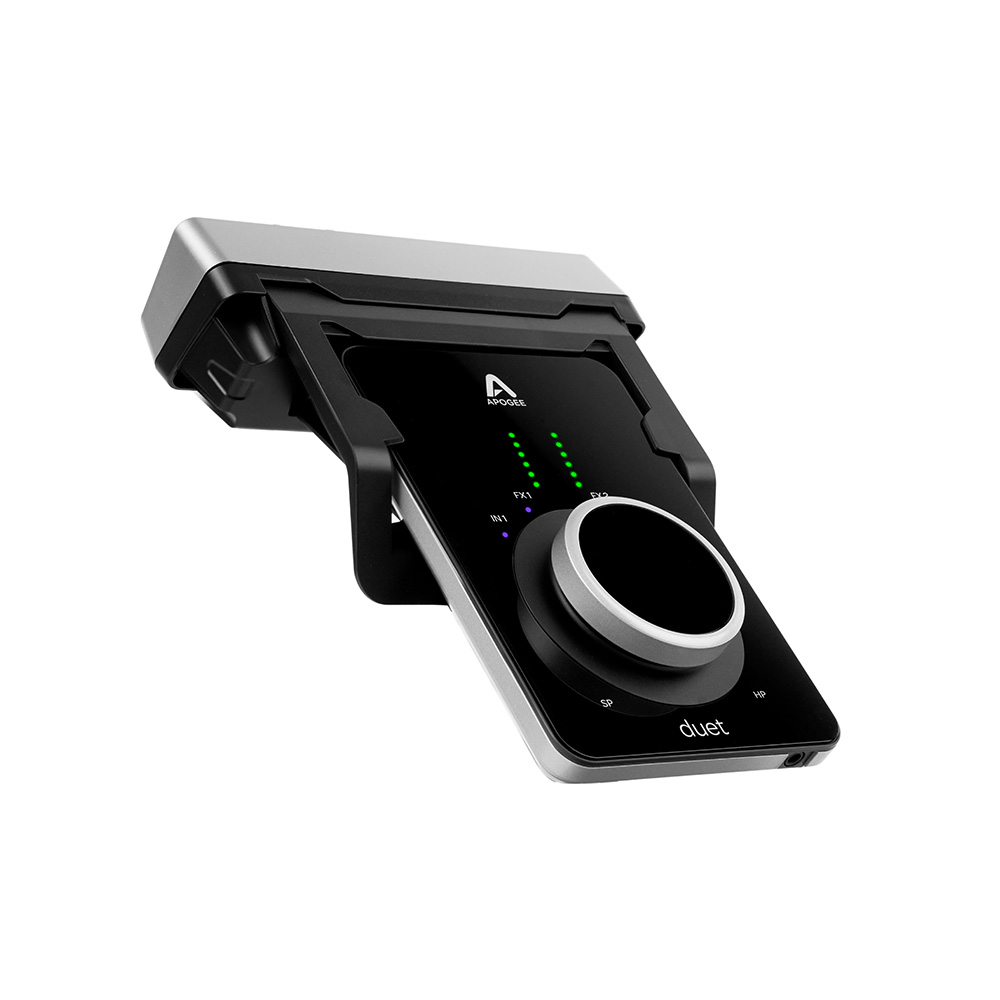

Limited edition of DUET 3 that includes the DUET Dock.

- The legendary DUET 3 with 2 in & 4 out via USB C, built-in Hardware DSP to control Apogee's ECS Channel Strip (sold separately) for zero latency when recording along with the use of Apogee FX.

- Includes top-of-the-line digital AD/DA converters, mic preamps (65dB gain) with +48v phantom power option, slim aluminum design with breakout cable (2 XLR, 4 1/4" Jacks), 2 Mic In, 2 Instr In, 2 Line Out, Headphones Out. All I/O is balanced, 192kHz/24-bit sampling, 2 USB C ports, 2 USB C ports, carrying bag.

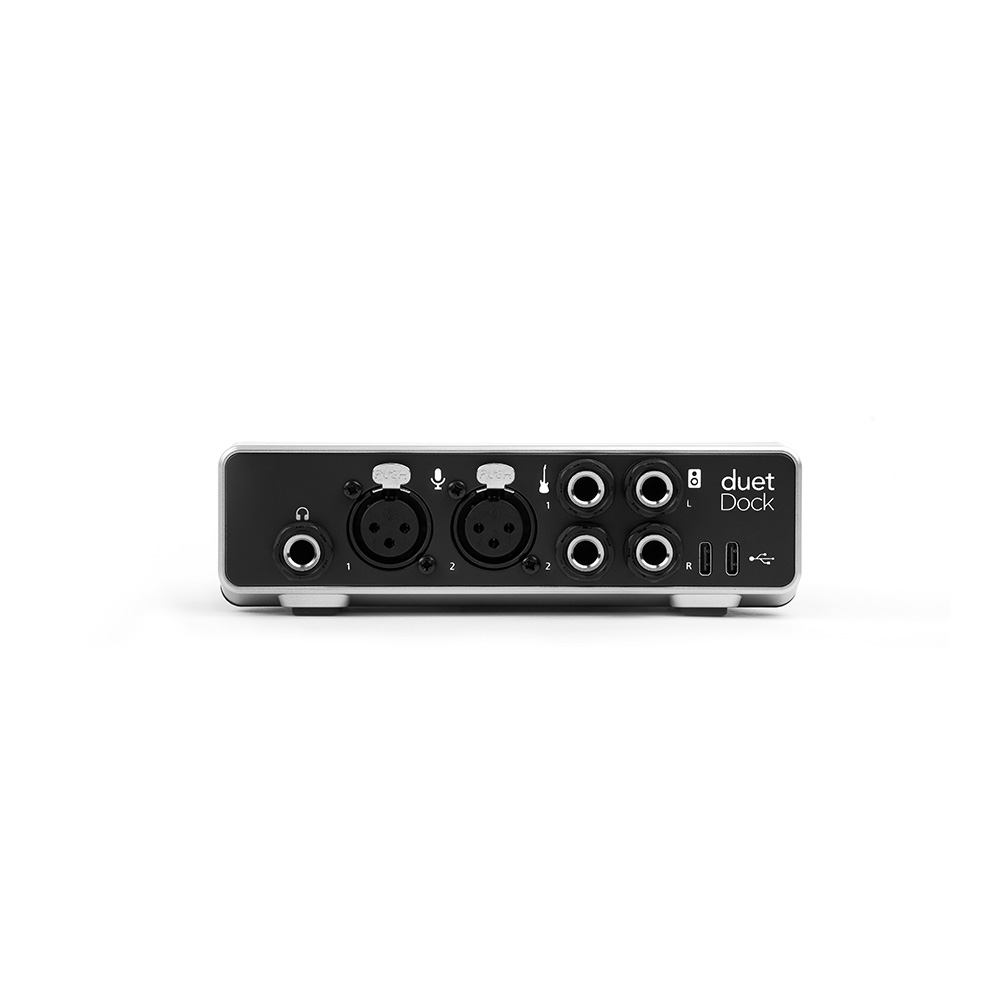

- Compatibility macOS: 10.15 and later, PC: Windows 10 Anniversary update or later. The DUET Dock which connects to the DUET 3 has all I/O without the presence of the Breakout Cable offering flexibility and cable organization.

- The package includes: DUET 3, DUET Dock, Breakout cable, Travel case, USB Type C / Type A cable.

Specifications
  • MIC PRE
  • Gain: Up to 65dB
  • EIN: 128dB (un-weighted) @ 60dB, 150 Ohm input
  • Max Input Level: +18dBu
  • Input Impedance: 4k Ohm
  • D/A CONVERSION
  • Max output level (+4dBu ref): +18dBu
  • Max output level (-10dBV ref): +6 dBu
  • Line output impedance: 50 Ohm
  • Freq resp 20Hz -20 Khz: > +/- 0.05dB
  • Rel. THD+N : -110dB
  • Dyn Range: 125dB (A-weighted)
  • HI-Z
  • Max input level: 14dBu
  • Input Impedance: 3.2kOhm (Pad on), 1MOhm (Pad off)
  • A/D CONVERSION
  • Max input level +4dBu: +18dBu
  • Max input level (-10dBV ref): +6dBV
  • Input impedance: 6.4KOhm
  • Freq resp 20 Hz -20Khz: > +/-0.2dB (@44.1Khz)
  • Rel. THD + N: -101dB
  • Dyn. Range: 122dB (A-weighted)
  • HEADPHONE OUT
  • Max output level headphones: +18dBu
  • Headphone output impedance 0 Ohm
  • Rel. THD+N : -109dB with 300 Ohm Load
  • Dyn Range: 124dB (A-weighted)
  • PRODUCT SIZE
  • Weight: 2lbs. / 0.95 kg
  • Dimensions: 8.85” x 7” x 3.54” / 22.5cm x 18cm x 9cm
