Audioengine D1

SKU: APA2022-00190
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
189
Upon Order
Add to cart
apa support icon
NEED HELP?

Our expert engineers can assist you!

The D1 is a premium 24-bit DAC and headphone amplifier for your computer, TV, and more.

Enhance Your Sound

High Quality Audio

Perfect for providing high quality audio to speakers or headphones, the D1 is a premium 24-bit DAC and headphone amplifier for your computer, TV, and more. The D1 connects to your computer’s USB port or optical output without any software to download, making the D1 quick and easy to set up.

Why You'll Love It

Benefits

  • High-performance DAC and headphone amp
  • USB and optical inputs
  • Stream bit-perfect 24/96 HD audio
  • Desktop or portable DAC
  • Mac or PC, no driver to install

Premium 24-BIT Dac

Digital-To-Analog Converter

Audioengine D1 Premium 24-bit DAC (digital-to-analog converter) allows you to bypass your computer’s soundcard or headphone output and send audio through USB or optical.

D1 will process digital audio at any bit depth up to 24 bits and any sample rate to 192kHz. With it’s high signal-to-noise ratio and low distortion, the D1 delivers sound quality generally heard only in more expensive DACs. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts.

D1 is the perfect digital interface between your computer and music system and will improve the sound of ALL your music.

Plug-And-Play

Always Ready To Go

The D1 accepts inputs from both USB and optical and has outputs for any audio system or headphones. The D1 DAC is the perfect way to get great-sounding music not only from your computer but from your TV, Apple TV, Blu-ray player or CD player. DirecTV and Comcast also have optical outputs for high-res audio.

Setup is easy and no special software, app, or driver is needed, making D1 a true plug-and-play digital audio solution.

Hear The Difference

Your Music Will Sound Better, Guaranteed.

The D1 reflects traditional Audioengine design and the audio fidelity is typical of Audioengine’s commitment to great sound at an affordable price. Even if you’re not an audio enthusiast we guarantee your music will sound better!

Specifications
  • DAC type: USB and Optical
  • Inputs: USB audio, SPDIF Optical
  • D/A converter: AKM4396
  • USB transfer mode: Asynchronous dual clock
  • USB controller: TI1020B
  • USB device class: Type 1.1 or above
  • Input bit depth: 16 bit, 24 bit
  • Input sample rate (USB): 32kHz-96kHz native playback, 188.2kHz & 192kHz re-sampled to 96kHz
  • Input sample rate (optical): 32kHz-192kHz native playback

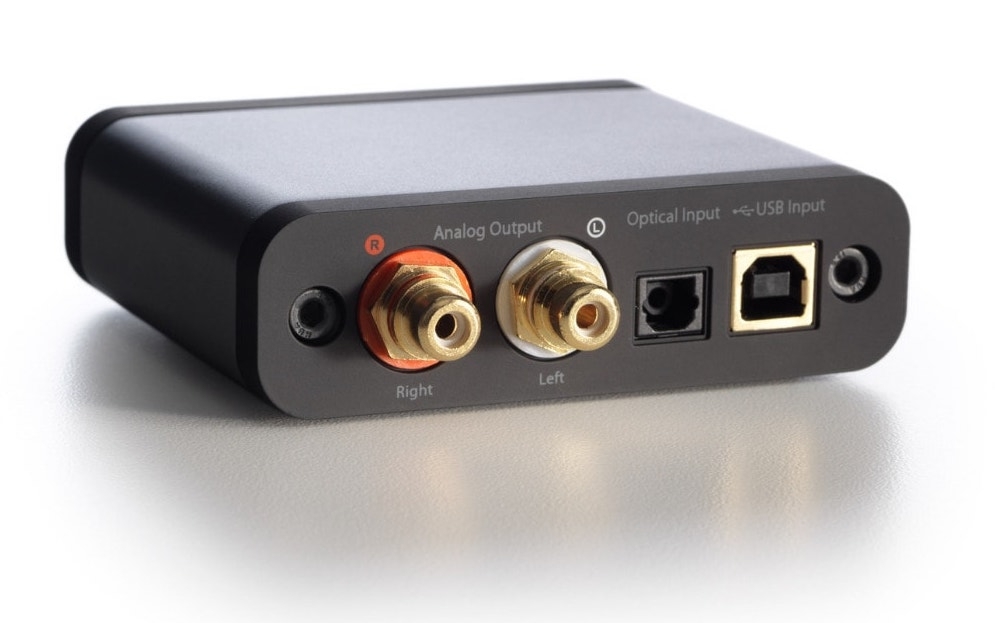

  • Outputs: Analog RCA L/R stereo, Analog 3.5mm mini-jack stereo
  • Full-scale output level: 2.0V RMS
  • Output impedance: 2 ohms
  • Recommended headphone impedance range: 10 ohms to 600 ohms
  • Headphone amplifier: OPA2134
  • Optical receiver: CS8416
  • Frequency response: 10Hz-25KHz (+/- 0.5dB)
  • SNR: (DC to 20 kHz) >110dB
  • THD+N: (1kHz FS 96kS/s) <0.0025%
  • Crosstalk: -85db
  • Input bit depth: 16 bit, 24 bit
  • Input sample rate (USB): 32kHz-96kHz native playback, 188.2kHz & 192kHz re-sampled to 96kHz
  • Input sample rate (optical): 32kHz-192kHz native playback
  • Power requirement: USB 5V DC, 200mA
  • USB power filtering: 2-stage redundant regulation
  • Product dimensions: 3.5×3.75×1″ (89x95x25mm)
  • Shipping weight: 1.0lbs (0.5kg)

Environmental

  • Operating Temperature: 32 to 95 degrees F
  • Non-operating Temp: -4 to 113 degrees F
  • Relative Humidity: 5% to 95% non-condensing

D1 Internal Converter

The D1 uses the AK4396 DAC, which is well-regarded for its low noise and high fidelity. Due to the high signal-to-noise specs of the AK4396 and the added benefit of double redundancy power source conversion and filtering, the D1 presents impressive low noise and low distortion characteristics. The D1 can process digital audio at any bit depth up to 24-bits and any sample rate up to 192kHz.

D1 Headphone Amplifier

The D1 includes a headphone amp based on the TI OPA2134 low noise opamp. The high-performance headphone output was designed for a wide range of headphones and will satisfy even the most demanding headphone enthusiasts.

D1 Power

The D1 is powered directly from the USB bus and power is passed through two stages of regulation to ensure no USB bus power variations affect the audio quality.

D1 Volume Control

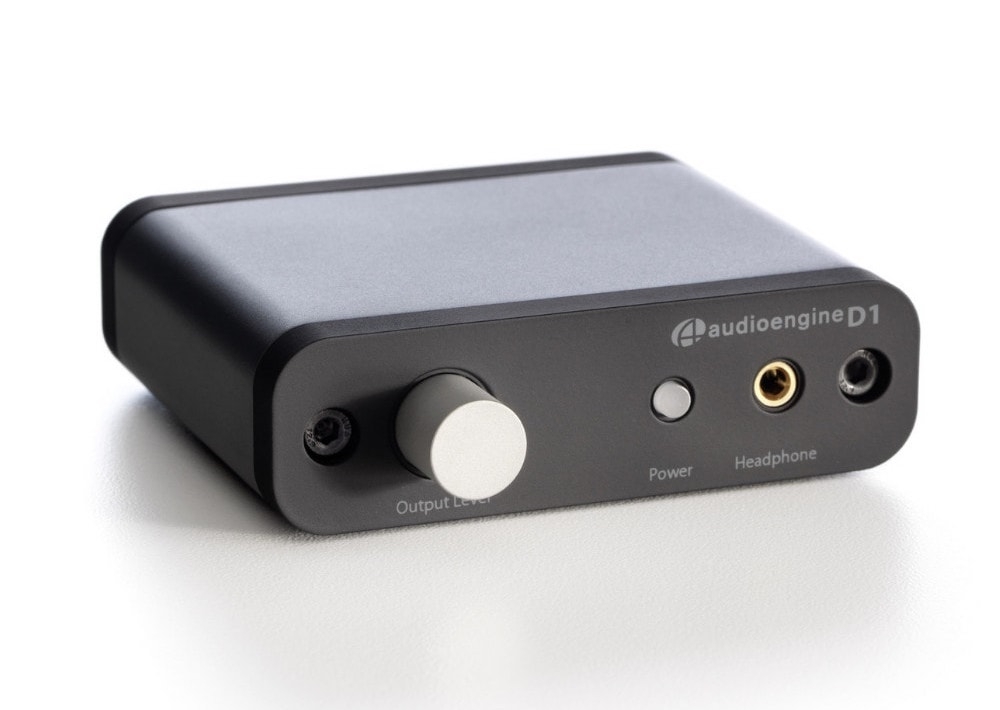

Volume is controlled directly from the D1 front panel via the digitally-controlled analog potentiometer.

What’s In The Box

  • 1 D1 24-bit DAC/ Headphone Amp
  • 1 USB cable
  • 1 Microfiber product bag
  • 1 Setup guide
