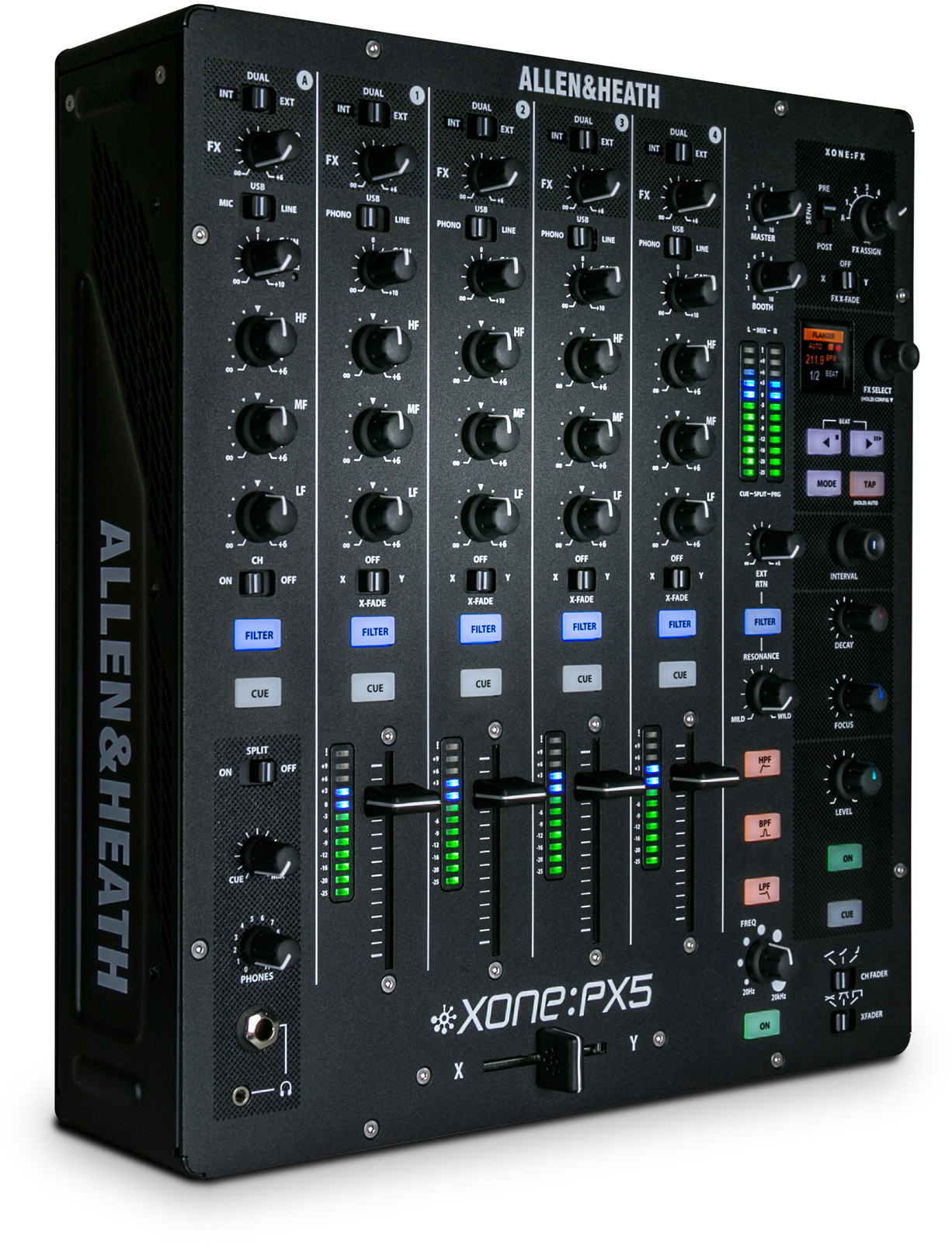

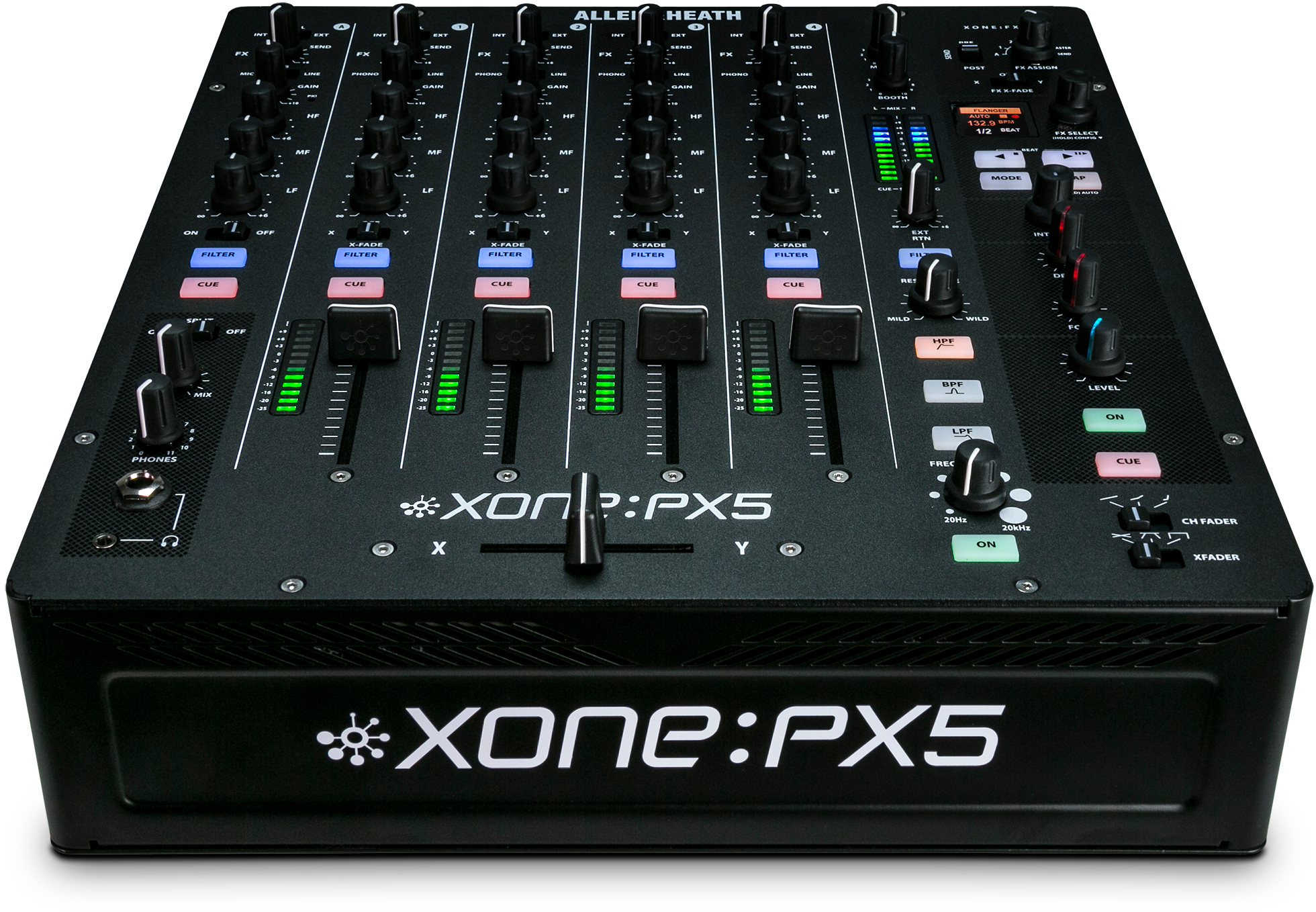

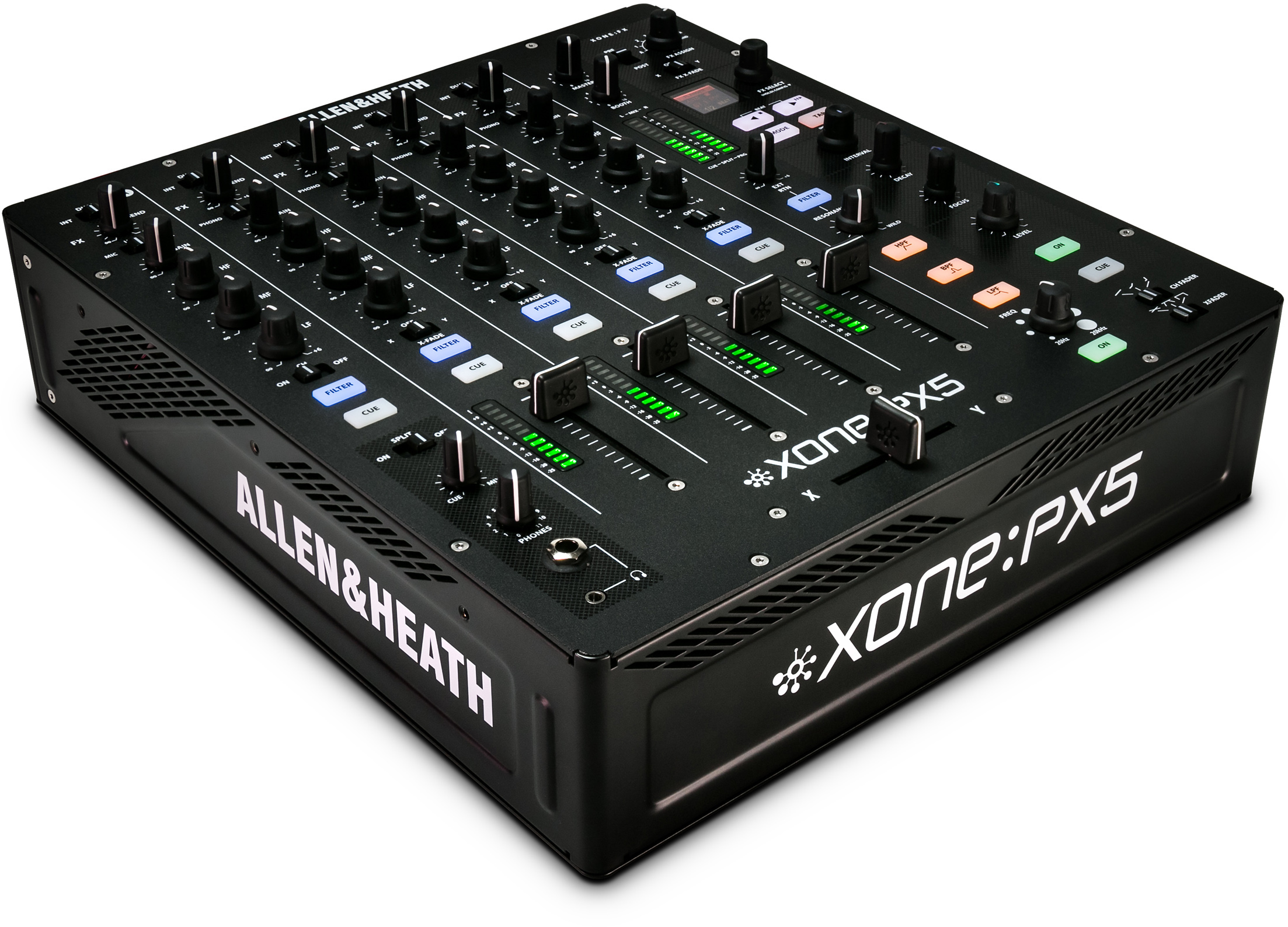

Allen & Heath Xone PX5

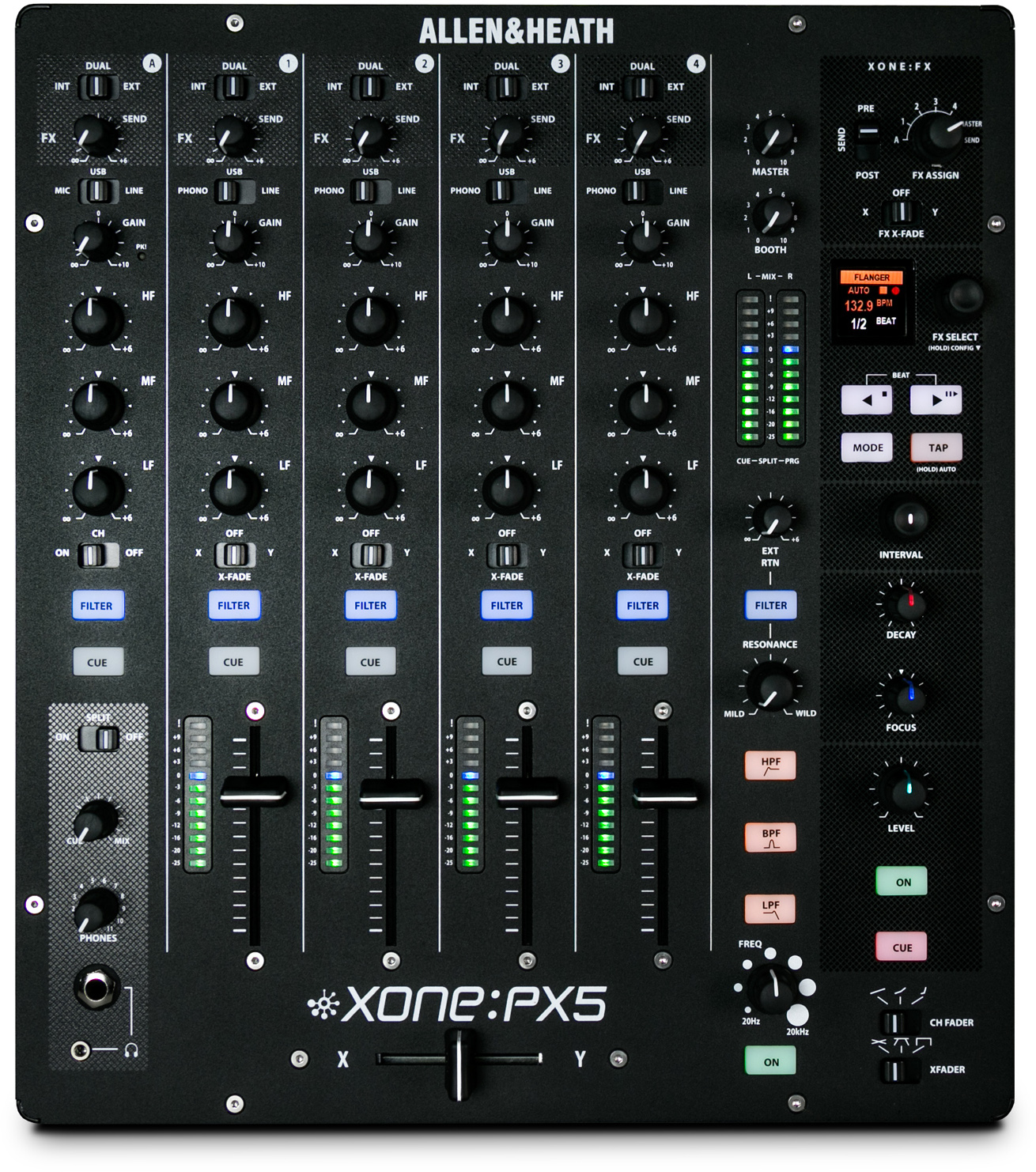

Combining the signature warm analogue Xone sound with class leading digital connectivity, Xone:PX5 breathes life and soul into electronic music performance. The built-in FX technology offers new levels of manipulation with our new Xone:Xcite FX suite of performance-focused delays, reverbs, modulators, flangers and distorters which are all assignable through simple hands-on control for fine-tuning the FX and expressing the DJ’s inner creativity. Xone:PX5 is a 4+1 channel mixer, equipped with the legendary Xone filter, 3 band EQ on all channels and an intuitive layout.

The versatile Send/Return feature allowing for the connection of external FX hardware with both Send/Return and Master Insert mode connections (Line or Hi-Z) equips Xone:PX5 for numerous enhanced setup scenarios. Each channel has its own dedicated send control for external FX processing and can also be routed to the internal Xone:FX engine.

Connect your laptop or computer to the premium internal 20 channel 24bit 96kHz USB2 soundcard for easy integration into digital DJ workflows, plus plug n’ play connection via X:LINK to Xone:K series controllers for expanded MIDI control.

The crossfader has three switchable curve settings for blending or scratching styles and can be easily replaced or upgraded to an Innofader Pro 2 for ultimate crossfader performance. No matter what your mixing style, Xone:PX5 combines a modern approach to DJing with all the tools required for creating your own individual sound.

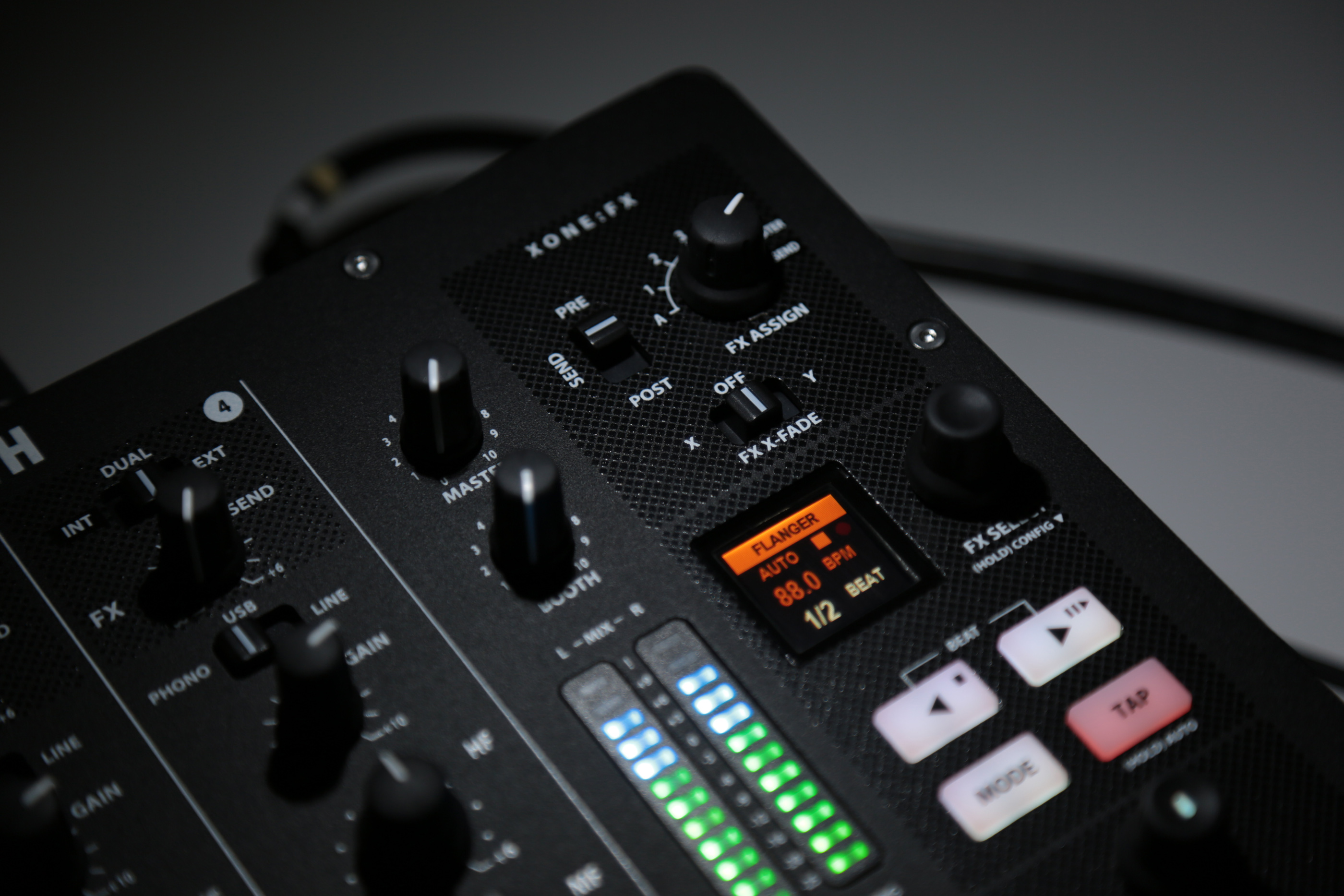

Xone:PX5 features the Xone:Xcite FX suite, a new breed of FX specifically tailored for DJ performance. The array of spectral delays, resonators, gritty reverbs and more is accessed through familiar, hands-on controls for instant, instinctive operation, making it easy to add energy and excitement to a track or create entire FX soundscapes. A hybrid FX mode combines the internal and external send & return FX for more advanced FX processing.

Xone:PX5 features an integrated MIDI clock engine which can send start/stop messages to external equipment. The 5-pin MIDI Sync/Out connection integrates external software/hardware instruments such as drum machines and synthesizers which can be connected via ¼” jack input connections (mono/stereo). Xone:PX5 can also send/receive MIDI clock information through the USB connection.

Specifications:

• Type Analog
• Channels 4 + 1
• EQ 3-band / Total Kill (CH 1-4 + CH A)
• USB Soundcard 20 Channel (10 in / 10 out)
• USB2 / Class Compliant
• 24bit / 96kHz
• 1 x MIDI IN
• 1 x MIDI Out

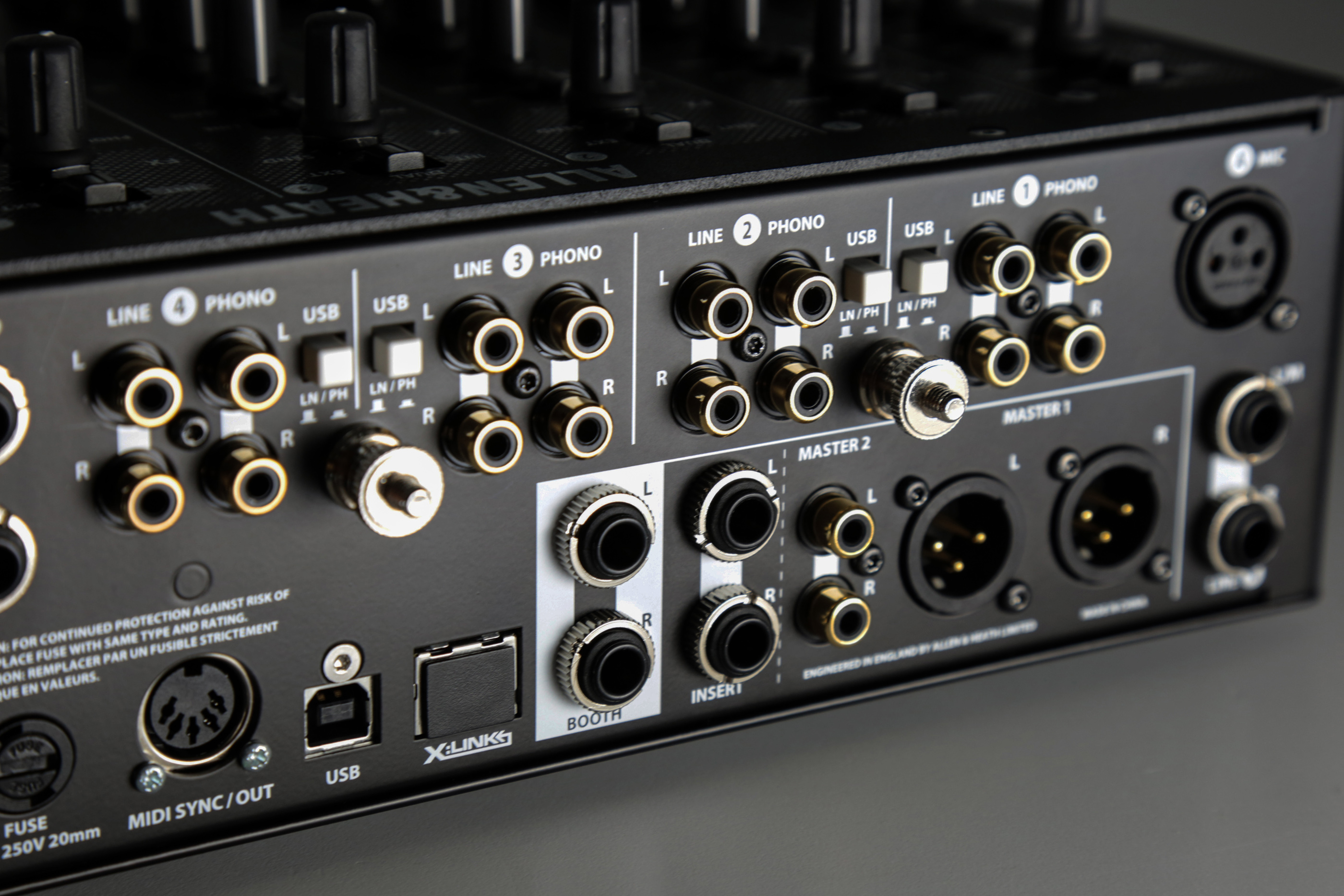

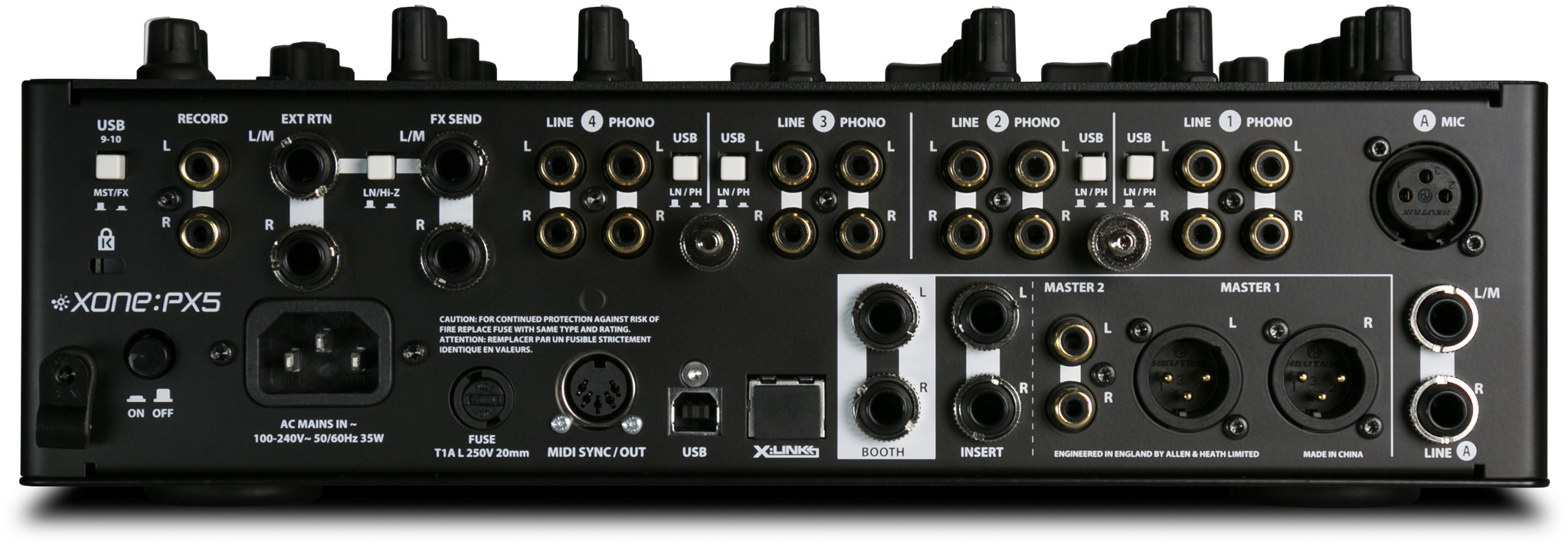

• Line Inputs 4 x RCA (CH 1-4)
• 1 x 1/4″ TRS (CH A) Mono/Stereo
• Phono Inputs 4 x RCA (CH 1-4)
• LN/PH Switch for DVS
• USB Inputs 5 x USB (CH 1-4 + CH A)
• Mic Input 1 x XLR
• Master Output 1 x XLR (Balanced)
• Master 2 Output 1 x RCA (Un-balanced)
• Booth Output 1 x 1/4″ TRS
• Record Output 1 x RCA (Un-balanced)
• Master Insert 1 x 1/4″ TRS
• MIDI Sync/Out 1 x 5-Pin DIN
• DIN Offset Control
