Description
Specifications

Powering the Future of Audio.

The revolutionary STR Integrated Amplifier is based on an entirely new technological platform, for true benchmark performance in stereo amplification. More power, more control, more connection options, and the most advanced technology available in a single, easy-to-use component.

Designed, engineered, and Crafted in Canada, the STR Integrated Amplifier combines the benefits of an advanced preamp with the power of a massive amplifier and processor. It includes leading-edge DAC, onboard Anthem Room Correction (ARC®®), customizable bass manager for mono or stereo sub outs, MM and MC phono inputs—far more than the average integrated amp.

And it includes new generations of many of Anthem’s award-winning, audiophile-loving, review-praised digital signal processing innovations, delivering a noticeably higher level of audio performance realism.

This is the integrated amplifier with the power, features, connections and control to fuel your two-channel dreams, today and into tomorrow.

Two-Channel Nirvana.

More power, more control, more connections, more technology. The STR Integrated Amplifier will change your perception of two-channel amplification. Now, you can have it all, in one component, with the kind of superior response and realism that Anthem is famous for.

More Subwoofer Options

STR Integrated Amplifier gives you more options for subwoofer configuration. Use one subwoofer or two for both channels, or two independent right-and-left channel specific subwoofers. The bass management in conjunction with ARC® is uniquely engineered engineered for seamless subwoofer blending, achieving an incredibly accurate and lifelike performance.

More Attention to Detail

We believe that two-channel listening demands attention to detail. A component must balance extreme power and delicate transparency, with flawless signal integrity being the benchmark of stereo performance. To that ultimate end, the Anthem STR Integrated Amplifier is designed with the shortest possible signal paths, and differential analog to digital circuitry to cancel artifacts and keep noise to a minimum.

More Power, From Oversized Toroidal Transformers

Clarity is maintained using carefully selected components, many of them engineered exclusively in-house at Anthem, like the huge, precision-wound toroidal transformers and their matching oversized filter capacitors. This massive power supply operates in harmony with the high-current, high-output amplifier section to produce an astounding 550W per channel continuously into 2 ohms! Peak production is effortless and instantaneous, cinching even the most challenging material. The use of multiple bipolar output devices dramatically reduces distortion while ensuring extreme linearity, extensive bandwidth, and stress-free reliability.

Moving Magnet and Moving Coil Cartridges

Anthem has also taken into consideration the resurgent popularity of vinyl long-playing records, and has included separate inputs for moving magnet and moving coil cartridges, with the phono section completely shielded to maintain signal purity. The transparency and refinement of the STR Integrated Amplifier reveals the hidden magic of classic media.

More Innovative Electronics

No less important is Anthem’s non-invasive Advanced Load Monitoring (ALM) circuitry, which protects the output section of the STR Integrated Amplifier by constantly monitoring temperature, current and voltage to ensure optimum long-term performance.

And there’s more. The STR Integrated Amplifier has more useful features than the average integrated amp, with no filler. Everything is geared toward giving you the power and control you need to achieve two-channel nirvana.

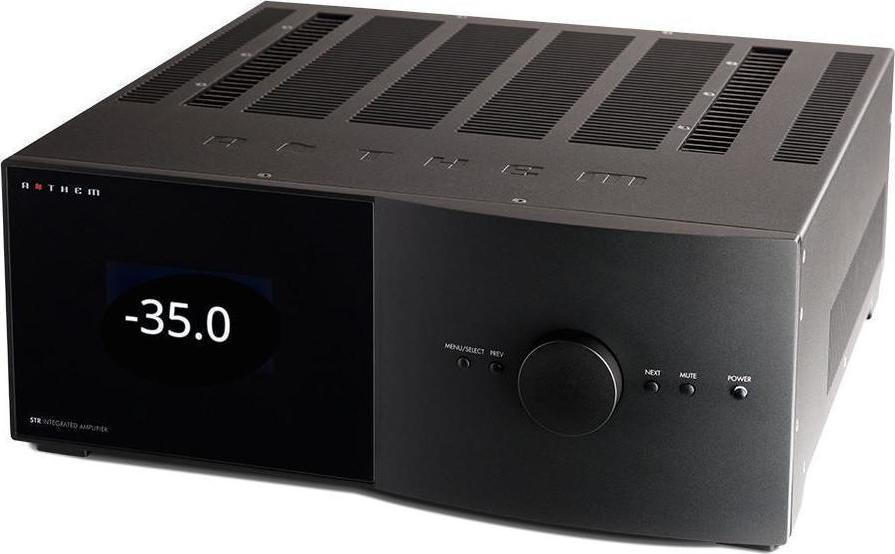

Aside from its cutting-edge technology and Anthem-exclusive innovations, one look tells you that the STR is a different amplifier animal altogether. The large Thin Film Transistor (TFT) display on the front panel can be seen from across the room, and gives you surprisingly easy control over your whole system. It’s a part of the luxurious new industrial design of the STR Integrated Amplifier, a striking look that’s available in two beautiful finishes, Black or Silver.

The Crafted in Canada Difference

The STR Integrated Amplifier is designed, engineered and manufactured in Canada and is part of premium STR Series by Anthem, the leader in audio power and control.

Specifications

PREAMPLIFIER

Input Impedance 100 Ω (MC), 47 kΩ (MM)
Input Capacitance 270 pF (MM)
Maximum Input (at 1 kHz for <0.1% THD 20 Hz - 20 kHz) 3.6 mV (MC), 37.7 mV (MM)
Gain (default at 1 kHz, user adjustable ± 20 dB) 55 dB (MC), 35 dB (MM)
RIAA Response ± 0.1 dB (20 Hz to 20 kHz)
THD+N (at 1 kHz, 20 Hz - 20 kHz BW, 2 Vrms output) 0.008% (MC), 0.005% (MM)
S/N Ratio (at 1 kHz, IEC-A, 2 Vrms output) 82 dB (MC), 96 dB (MM)

PREAMPLIFIER

Frequency Response

digital-in, 192 kHz 10 Hz - 50 kHz (+0.00, -0.50 dB)
digital-in, 96 kHz 10 Hz - 45 kHz (+0.00, -0.50 dB)
digital-in, 44.1 kHz 10 Hz - 20 kHz (+0.00, -0.03 dB)
analog-in, DSP mode 10 Hz - 40 kHz (+0.02, -0.20 dB)
analog-in, direct mode 10 Hz - 80 kHz (+0.00, -0.10 dB)

THD+N (at 1 kHz, 20 Hz - 20 kHz BW, 2 Vrms output)

digital-in, 44.1 kHz, 0 dBFS 0.0008%
analog-in, DSP mode, 1 Vrms input 0.001%
analog-in, direct mode, 1 Vrms input 0.0020%

SNR (at 1 kHz, IEC-A, 2 Vrms output)

digital-in, 44.1 kHz, 0 dBFS 112 dB
analog-in, DSP mode, 2 Vrms input 110 dB
analog-in, direct mode, 2 Vrms input 120 dB
Maximum Output (<0.1% THD) 2.2 Vrms except analog-direct 3.3 Vrms
XLR Configuration Pin 1: Ground, Pin 2: Normal, Pin 3: Inverted

POWER AMPLIFIER

Impedance 8Ω 4Ω 2Ω
Power Output (per channel) (Continuous, 20 Hz - 20 kHz, <1% THD) 200 W 400 W 550 W
THD (100 W): 0.002% (1 kHz), 0.015% (20 kHz)
IMD (100 W): ITU-R (19 kHz + 20 kHz) 0.0007%, SMPTE (60 Hz + 7 kHz) 0.005%
SNR (IEC-A, ref. 200 W) 114 dB
Frequency Response (20 Hz - 20 kHz) ± 0.1 dB
Power Bandwidth (-3 dB at 200 W into 8 ohms) 80 kHz
Slew Rate 30 V/μs
Damping Factor (20 Hz - 1 kHz) 330
Channel Separation 101 dB (100 Hz), 61 dB (10 kHz)

POWER REQUIREMENT

120 V version: In countries where the line voltage is 120 V, this product operates from a single phase AC power source that supplies between 108 V and 132 V at a frequency of 60 Hz.
220-240 V version: In countries where the line voltage is 220, 230, or 240 V, this product operates from a single phase AC power source that supplies between 198 V and 264 V at a frequency of 50 Hz.

POWER CONSUMPTION

Standby 0.38 W (120V), 0.45 W (240V)
Standby + Network 1.1 W (120V), 1.2 W (240V)
Idle 40 W
Typical Use 250 W
High Output 500 W

DIMENSIONS

Height 6-3/4” (17.2 cm)
Width 17” (43.2 cm)
Depth (not including power cord) 17-1/2” (44.5 cm)
Weight (unpacked) 40 lb (18 kg)
