Elipson IC8

The Elipson IC8 in-ceiling speaker is part of the Architect IN range, a collection of visually discreet audio system components. This large, 2-way speaker is compatible with most hi-fi amplifiers and home theater receivers on today's market. It handles immersive, multichannel formats while adding a vertical dimension to your home theater installation.

The in-wall and in-ceiling speakers in Elipson's IN range have been designed for both private and public spaces. They are a testament to Elipson's commitment to offering breathtaking audio quality. The IC8 may be used in a variety of settings: conference rooms, shopping malls, amphitheatres, restaurants, stores, hotels, offices, private screening rooms, schools, private home theaters, integrated hi-fi systems...

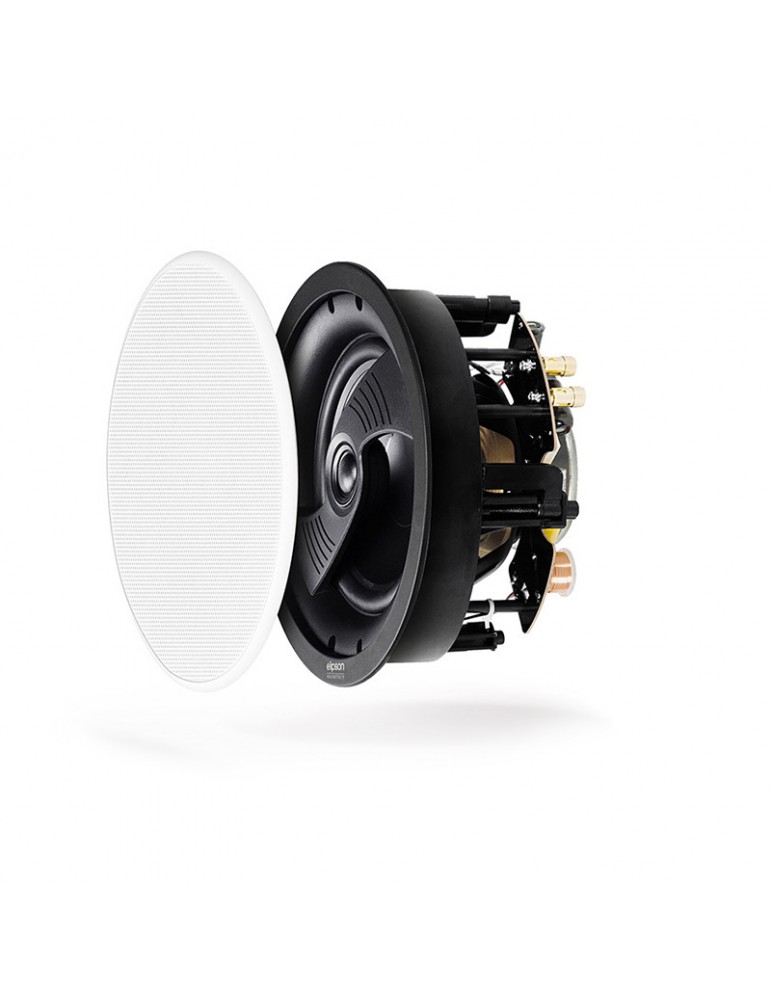

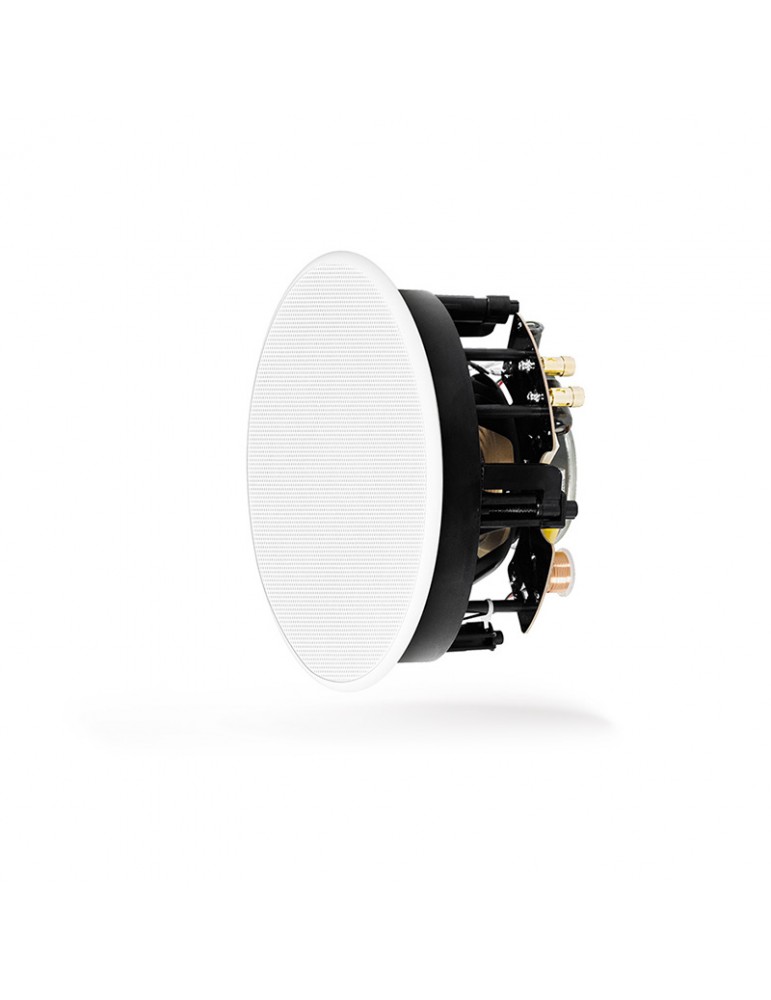

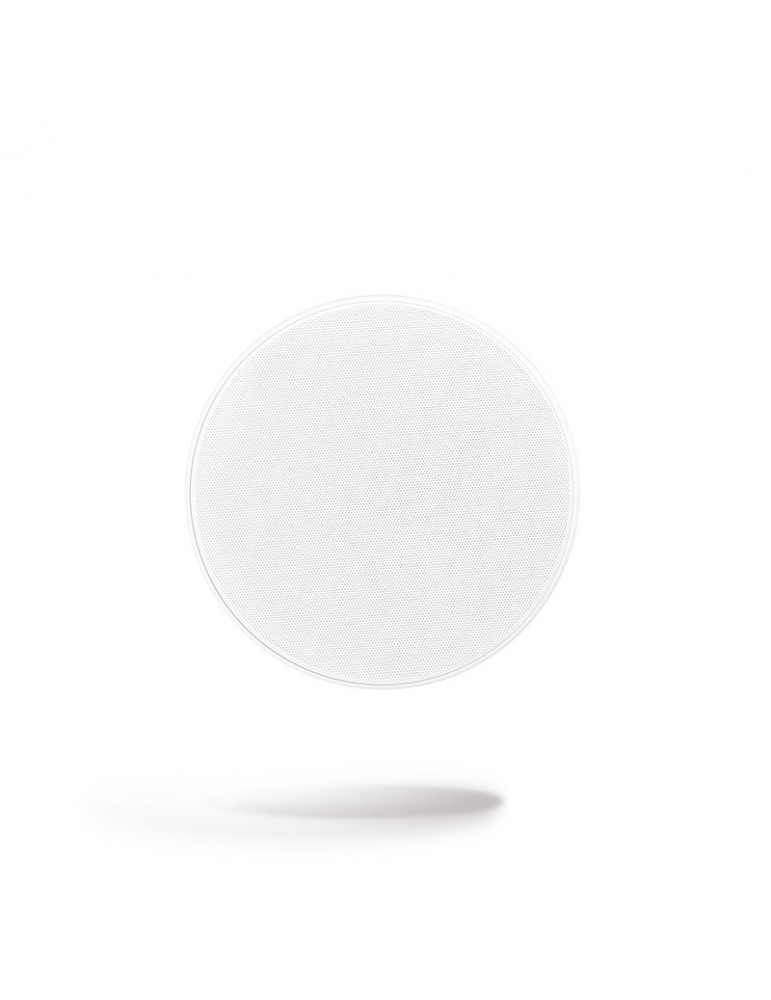

The Elipson IC8 in-ceiling speaker features a 2-way coaxial low-mid driver (21 cm) composed of cellulose fibre and two silk dome tweeters (25 mm) which can be adjusted in order to direct sound waves toward the listening area. The speaker's white, magnetic grille may be painted to ensure perfect integration with your interior decor.

The IC8 speaker has a sensitivity of rating 87 dB and a maximum power handling of 125 W. With a frequency response ranging from 55 Hz to 20 kHz, this model is an ideal surround speaker solution for a home theater installation.

Specifications:

• Speaker: In-Ceiling

• Number of way: 2

• Tweeter: 1" silk dome, orientation 35 to 40° in all directions

• Woofer: 8" paper cone, rubber edge

• Recommended amplifier: 125 W

• Frequency Response (±3 dB): 55 Hz - 20 kHz

• Crossover frequency: 2550 Hz

• Sensitivity: 87 dB / 1W / 1m

• Impedance: 4 Ohms

• Dimensions: 290 x P122 mm

• Cut-out dimension: 242 mm

• Weight: 2,40 kg

• Dimensions packaging (W x H x D): 324 x 338 x 153 mm

• Weight with packaging, unit: 3,15 kg

• Dimensions packaging, x4 (W x H x D): 350 x 660 x 320 mm

• Weight with packaging, x4: 13,4 kg
