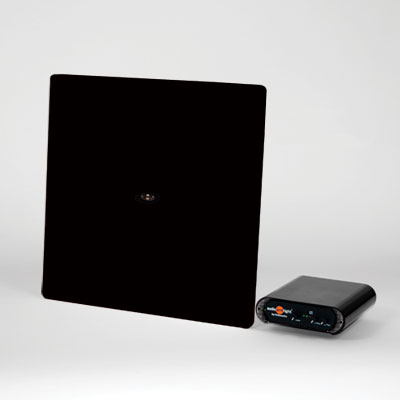

Holosonics AS 16 B

Add sound… and preserve the quiet

The world's most directional audio loudspeaker technology, now twice as powerful.

Sound from other speakers is 90% noise.

Any sound that misses your intended audience is noise. Only the Audio Spotlight system can keep sound focused specifically to your listeners, providing sound where you want it, and quiet everywhere else.

The revolutionary Audio Spotlight technology creates a tight, narrow beam of sound that can be controlled with the same precision as light. Aim the flat, thin speaker to your desired listening area and provide all of the sound with none of the noise.

MAXIMUM SOUND ISOLATION

The Audio Spotlight uses a beam of ultrasound as a "virtual acoustic source", enabling unprecedented control of sound distribution.

The graph below shows the real sound field of the Audio Spotlight versus the theoretical maximum directivity of any loudspeaker, panel, dome, or "shower" of the same size.



As shown by this comparison, no loudspeaker in the world can approach the level of control provided by Audio Spotlight technology.


AS 24

The larger surface of this version (AS 24 speaker dimensions are 60.3cm Χ 60.3cm Χ 1.5cm, its weight is at 6 kgr) provides an extended listening area, as well as more available power.
This makes it better suited for noisier environments, or areas requiring more coverage, such as museums, trade shows, supermarkets, and many retail environments.


• Typical levels are 85 dB SPL at 1kHz for AS 24, and 80 dB SPL for AS 16 models.
• The larger AS 24 can output about twice the power and has twice the low frequency range compared to the AS 16.
• Each AS 24 speaker comes with its own Sound Beam processor - amplifier.
• Sound Beam processor - amplifier specifications:

                     Input: RCA line-level audio
                     Power draw: 65W max (AS 24)
                                           25W max (AS 16)
                     Output: BNC coax cable (7m included)
                     Controls: Volume, tone, on/off
                     Voltage: 100-240V 50/60Hz
                     Dimensions: 15cm x 18cm x 4cm
                     Weight: 1 kgr

• Two speakers, one amplifier configuration is also available.
• Several mounting options available (mounted to ceiling, suspended ceiling, wall, truss, bars, or fitted directly into panelled ceilings).
• Standard finishes are black (AS 24 B) and white (AS 24 W).

Custom Printing Options

Holosonics is now offering custom-printed fabric for all Audio Spotlight models.

In addition to our standard black and white models, any color, pattern, or photograph can now appear in high detail on the front surface of our Audio Spotlight speaker panels.
Audio Spotlight panels can be designed to blend in with any background (stone, wood, brick), or feature a prominent logo.

Our new custom fabric option allows for an unprecedented level of creativity, while making integration options even more seamless.
