DESCRIPTION
Ideal for medium-to-large rooms, the CDD15 is a very high-power, passive two-way system designed for installations that demand the ultimate in sonic performance from a single enclosure. It combines very high output capability with exceptional fidelity and coverage consistency. Its coaxial drive unit comprises a powerful 15” (380mm)/3” (75mm) voice coil LF driver and a 1.4” (35mm) exit HF compression driver with a 3” (75mm) pure titanium diaphragm.
The Coaxial Differential Dispersion technology employed in the CDD15 delivers more consistent audience coverage than systems with fixed X° x Y° coverage patterns — projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves ‘point source’ summation of the LF and HF sections — eliminating off-axis variations in frequency response associated with non-coaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape — maintaining the dispersion pattern out to very high frequencies.

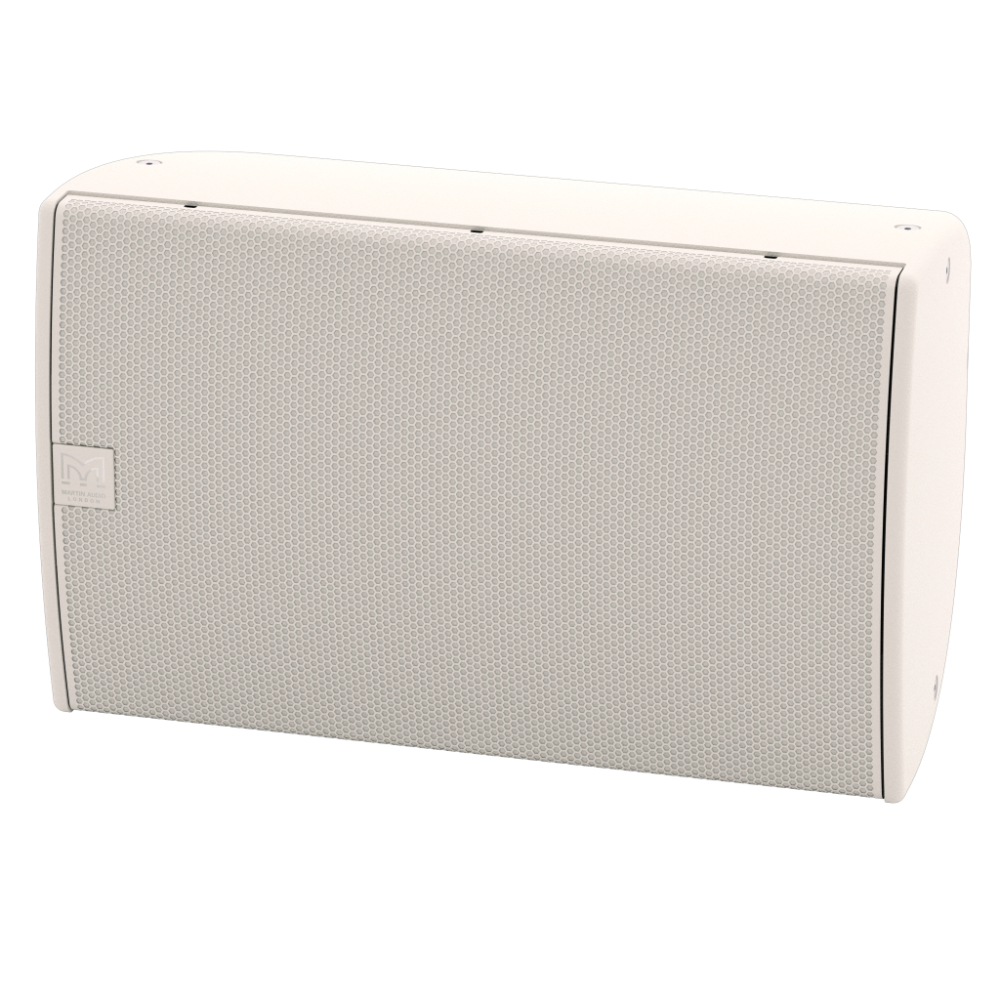

The visually-distinctive birch plywood enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The CDD15 can be suspended by eyebolts or by means of an optional horizontal yoke.
A full-range, passive two-way system, the CDD15 should be used with a compatible controller with appropriate limiter settings to provide system protection.
When used with the DX4.0 controller or an iKON amplifier, there are now enhanced DSP and FIR based pre-sets to deliver the absolute maximum performance and fidelity while limiter settings protect the integrity of the system.
FEATURES
- High-output, CDD™ passive two-way system
- Coaxial Differential Dispersion™ technology
- Elegant birch plywood enclosure
- User-rotatable coaxial drive unit
- Vertical and horizontal mounting options
- Screw-free perforated steel grille
- 8Ω nominal impedance
- Integral inserts for eyebolt suspension
- Black or white standard colour options
APPLICATIONS
- Live Music Clubs and Bars
- Nightclubs
- Bars and Restaurants
- Museums and AV Spaces
- Convention Centres
- Hotels
- Retail Outlets
- Leisure Centres
- Houses of Worship
Specifications
- TYPE
- High-output, Coaxial Differential Dispersion passive two-way system
- FREQUENCY RESPONSE
- 55Hz-18kHz ± 3dB, -10dB @ 45Hz
- DRIVER
- LF: 15” (380mm)/3” (75mm) voice coil, long excursion, shared ferrite motor system with HF
- HF: 1.4” (36mm) exit/3” (75mm) voice coil, titanium dome compression driver
- RATED POWER
- 400W AES, 1600W peak
- SENSITIVITY
- 100dB
- MAXIMUM SPL
- 126dB continuous, 132dB peak
- NOMINAL IMPEDANCE
- 8Ω
- DISPERSION (-6DB)
- 100˚-60˚ horizontal, 60˚ vertical (user-rotatable)
- CROSSOVER
- 1.6kHz passive
- ENCLOSURE
- 68 litre, birch plywood
- FINISH
- Black or white textured paint
- PROTECTIVE GRILLE
- Black or white perforated steel with scrim cloth backing
- CONNECTORS
- Low profile 20A push-lock
- PIN CONNECTIONS
- Left to right: Input+, Input -, Link -, Link+
- FITTINGS
- 10 x M8 fly points
- DIMENSIONS
- (W) 432mm x (H) 685mm x (D) 413mm
- (W) 17.01ins x (H) 26.97ins x (D) 16.26ins
- WEIGHT
- 26kg (57.32lbs)
