Sennheiser EW-100-ENG-G4-Β

EK 100 G4

• Frequency range: B: 626 - 668 MHz
• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: < 0.9 %
• Weight : (incl. batteries) approx. 160 g
• Audio output : 3.5 mm jack socket: +12 dBu (mono, unbalanced)
• Signal-to-noise ratio: > 110 dBA
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with receiver switched off: < 25 µA
• Adjacent channel rejection: > 65 dB
• Intermodulation attenuation: > 65 dB
• Powering : 3 V battery / 2.4 V rechargeable battery
• Receiving frequency : Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity: < 1.6 μV for 52 dBA eff S/N
• Squelch: low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Temperature Range: -10 °C to +55 °C
• Receiver Principle: Adaptive diversity
• Blocking: >70 dB

SK 100 G4

• Dimensions: Approx. 82 x 64 x 24 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion < 0.9 %
• Weight: (incl. batteries) approx. 160 g
• Signal-to-noise ratio >0 dBA
• RF output power: max. 30 mW
• Switching bandwidth : up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption: at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 µA
• Input impedance: 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage: 3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: < ±15 ppm

SKP 100 G4

• Dimensions: Approx. 105 x 43 x 43 mm
• Compander: Sennheiser HDX
• THD, total harmonic distortion: < 0.9 %
• Weight : (incl. batteries) approx. 195 g
• Signal-to-noise ratio: > 110 dBA
• RF output power: Max. 30 mW
• Switching bandwidth: up to 42 MHz
• Peak deviation: ±48 kHz
• Nominal deviation: ±24 kHz
• Operating time: Typically 8 h
• Modulation: Wideband FM
• Power supply: 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption : at nominal voltage: typ. 180 mA with transmitter switched off: ? 25 µA
• Input impedance: 68 kΩ, unbalanced
• Max. Input voltage: 3.3 Veff
• Powering: 3 V battery / 2.4 V rechargeable battery
• Transmission frequency: Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response: 80 – 18,000 Hz
• Temperature Range: -10 °C to +55 °C
• Frequency stability: < ±15 ppm

ME 2

• Connector: 3.5 mm jack
• Frequency response: 50 to 18,000 Hz (ME 2-II)
• Max. sound pressure level :130 dB
• Cable length: approx. 1.60 m
• Transducer principle: pre-polarized condensor microphone
• Pick-up pattern: omni-directional

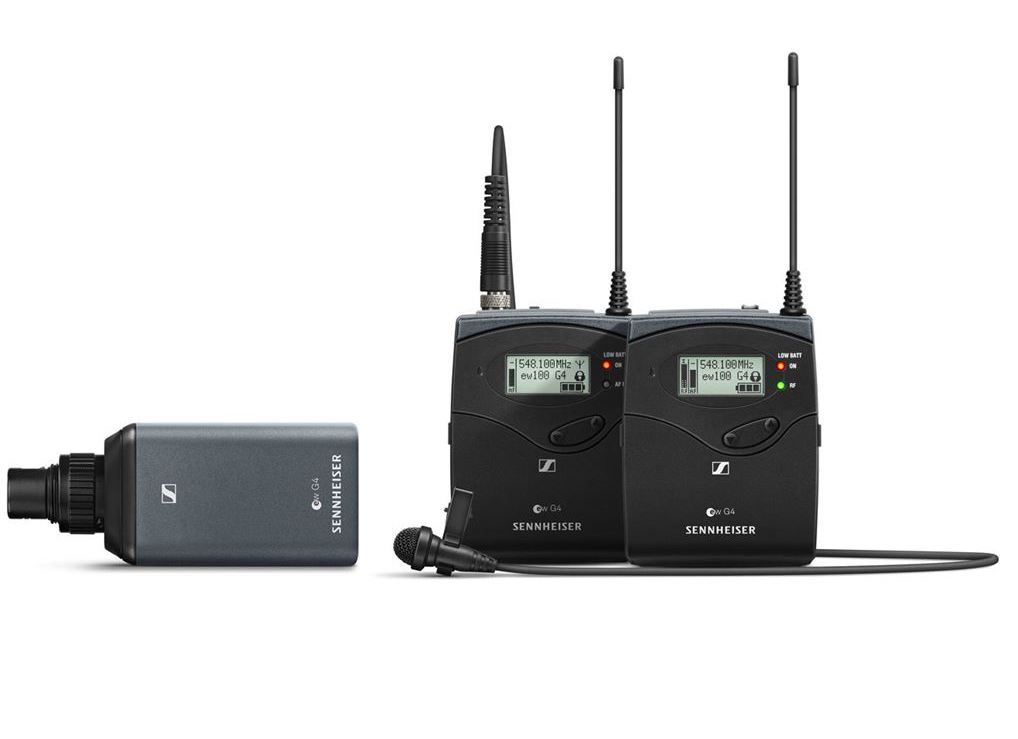

What's in the Box

• EK 100 G4 camera receiver
• SK 100 G4 bodypack transmitter
• SKP 100 G4 plug-on transmitter
• ME 2 clip-on microphone
• 6 AA batteries
• CA 2 camera adapter
• CL 1 3.5 mm jack cable
• CL 100 XLR to 3.5 mm jack adapter cable
• quick guide
• safety guide
• manufacturer declaration sheet
