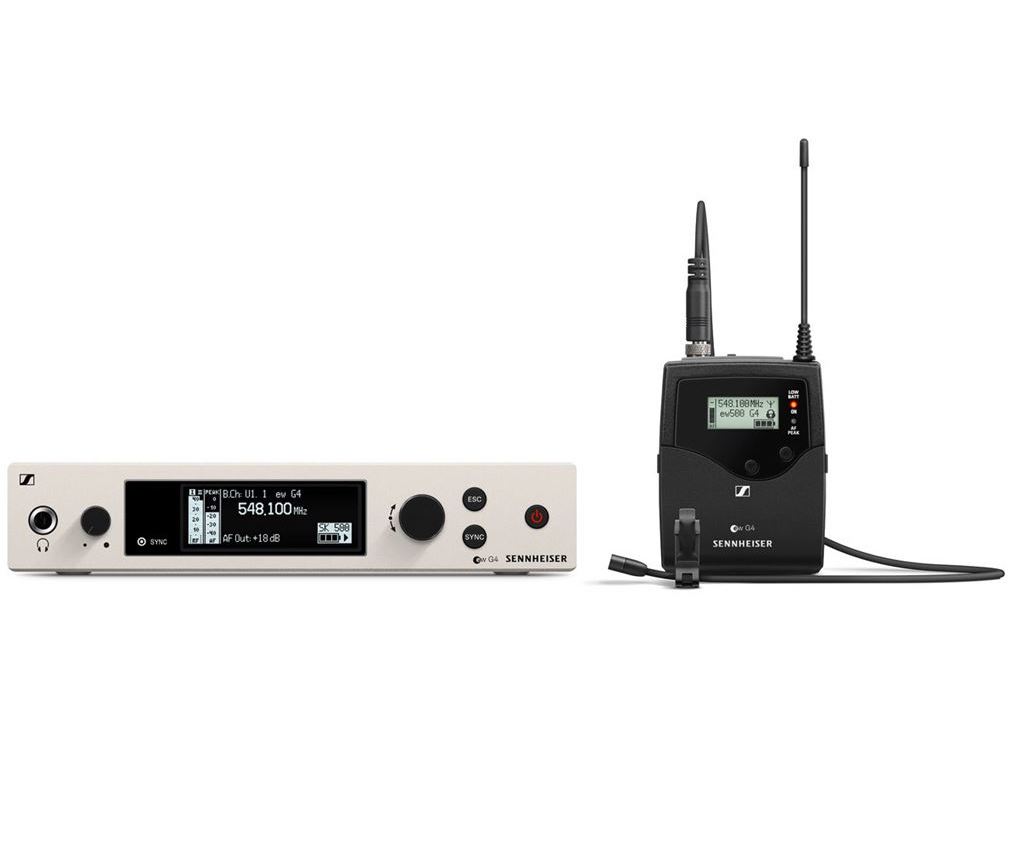

Sennheiser EW-500-G4-MKE2-GW

• Engineered for professional live sound: Rugged all-in-one wireless system for presenters and moderators.
• Robust bodypack transmitter and unobstrusive clip-on microphone ME 2-II (omni-directional) or ME 4 (cardioid) with high speech intelligibility for daily use on stage
• True diversity half-rack receiver in a full-metal housing with intuitive LCD display for full control
• Easy and flexible wireless synchronization between transmitter and receiver via infrared
• Fast frequency allocation for up to 12 receivers via new linking functionality
• Up to 20 compatible channels
• Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
• Transmission Range: up to 100 meters / 300 feet
• High RF output power (up to 30 mW) depending on country regulations

SK 100 G4

• Dimensions Approx. 82 x 64 x 24 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion ? 0.9 %
• Weight (incl. batteries) approx. 160 g
• Signal-to-noise ratio ? 110 dBA
• RF output power Max. 30 mW
• Switching bandwidth up to 42 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Operating time Typically 8 h
• Modulation Wideband FM
• Power supply 2 AA batteries, 1.5 V or BA 2015 accupack
• Current consumption at nominal voltage: typ. 180 mA
• with transmitter switched off: ? 25 µA
• Input impedance 40 kΩ, unbalanced / 1 MΩ
• Max. Input voltage 3 Veff
• Powering 3 V battery / 2.4 V rechargeable battery
• Transmission frequency Max. 1680 transmitting frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• AF frequency response Mic: 80 – 18,000 Hz Line: 25 – 18,000 Hz
• Temperature Range -10 °C to +55 °C
• Frequency stability: ±15 ppm

EM 100 G4

• Dimensions Approx. 190 x 212 x 43 mm
• Compander Sennheiser HDX
• THD, total harmonic distortion ? 0.9 %
• Weight Approx. 980 g
• Audio output 6.3 mm jack socket (unbalanced): +12 dBu
• XLR socket (balanced): +18 dBu
• Signal-to-noise ratio ? 110 dBA
• Switching bandwidth up to 42 MHz
• Peak deviation ±48 kHz
• Nominal deviation ±24 kHz
• Modulation Wideband FM
• Power supply 12 V DC
• Antenna connector 2 BNC sockets
• Current consumption 300 mA
• Adjacent channel rejection Typically: 65 dB
• Intermodulation attenuation Typically: 65 dB
• Receiving frequency Max. 1680 receiving frequencies, adjustable in 25 kHz steps 20 frequency banks, each with up to 12 factory-preset channels, no intermodulation 1 frequency bank with up to 12 programmable channels
• RF sensitivity < 2.5 μV for 52 dBA eff S/N
• Squelch low: 5 dBµV middle: 15 dBµV high: 25 dBμV
• Equalizer Preset 1: Flat
• Preset 2: Low Cut (-3 dB at 180 Hz)
• Preset 3: Low Cut/High Boost (-3 dB at 180 Hz, +6 dB at 10 kHz)
• Preset 4: High Boost (+6 dB at 10 kHz)
• Temperature Range -10 °C to +55 °C
• Receiver Principle True diversity
• Blocking: 70 dB

ME 4

• Connector 3.5 mm jack
• Frequency response 50 to 18,000 Hz
• Max. sound pressure level 120 dB
• Cable length approx. 1.60 m
• Transducer principle pre-polarized condensor microphone
• Pick-up pattern cardioid
• Sensitivity in free field, no load (1kHz) 40 mV/Pa
• Equivalent noise level 31 dB

What's in the box?

• EM 100 G4 true diversity receiver
• SK 100 G4 bodypack transmitter
• ME 2 clip-on microphone (ew 100 G4-ME2 set only)
• ME 4 clip-on microphone (ew 100 G4-ME4 set only)
• GA 3 rackmount set
• power supply
• 2 AA batteries
• 2 rod antennas
• RJ 10 cable
