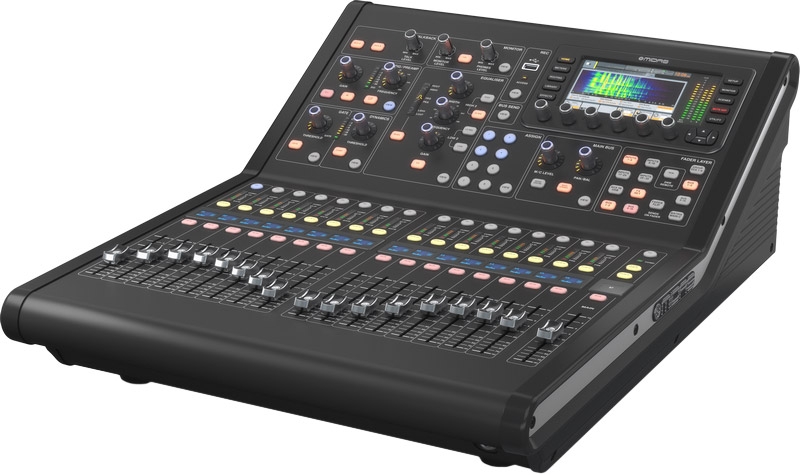

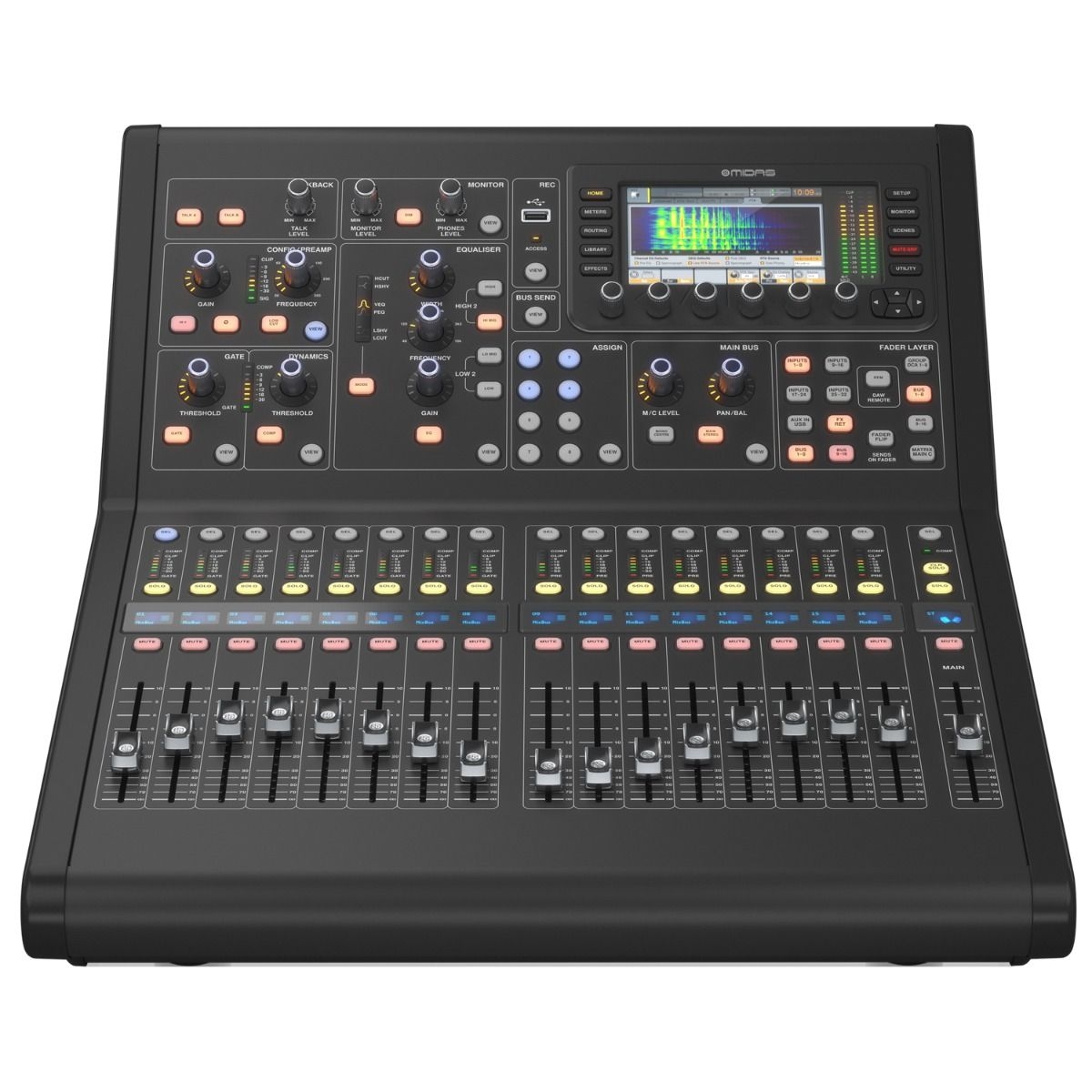

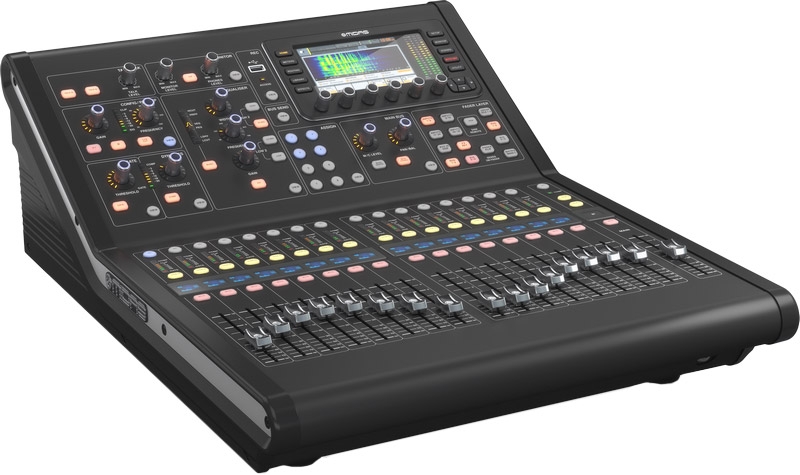

Midas M32R

Digital Console for Live and Studio with 40 Input Channels, 16 Midas PRO Microphone Preamplifiers and 25 Mix Buses

Live performance and studio recording digital console with up to 40 simultaneous input channels

Features:

• 16 award-winning Midas PRO microphone preamplifiers
• 25 time-aligned and phase-coherent mix buses
• AES50 networking allows up to 96 inputs and 96 outputs
• 192 kHz ADC and DAC converters for outstanding audio performance
• Industry-leading design by Bentley* Motors Designer
• High-performance aluminium and high-impact steel structure
• Rack mount brackets included for ultimate flexibility
• 40 bit floating point digital signal processing
• 8 DCA and 6 mute groups
• 8 digital signal processing effects engines
• 17 Midas PRO motorised 100 mm faders
• Daylight viewable 5" full colour TFT display screen
• 32 x 32 channel USB 2.0 audio interface
• DAW remote control emulations of Mackie Control* and HUI* protocols
• Optional wireless remote control with Midas Apps for iPhone* and iPad*
• Auto-ranging universal switch-mode power supply
• 10-Year Warranty Program*
• Designed and engineered in the U.K.

Specifications:

• Input Processing Channels: 32 Input Channels, 8 Aux Channels, 8 FX Return Channels
• Output Processing Channels: 16-Aug
• 16 aux buses, 6 matrices, main LRC: 100
• Internal Effects Engines (True Stereo / Mono): 16-Aug
• Internal Show Automation (structured Cues / Snippets): 500 / 100
• Internal Total Recall Scenes (incl. Preamplifiers and Faders): 100
• Signal Processing: 40-Bit Floating Point
• A/D Conversion (8-channel, 96 kHz ready): 24-Bit, 114 dB Dynamic Range, A-weighted
• D/A Conversion (stereo, 96 kHz ready): 24-Bit, 120 dB Dynamic Range, A-weighted
• I/O Latency (Console Input to Output): 0.8 ms
• Network Latency (Stage Box In > Console > Stage Box Out): 1.1 ms

Connectors

• MIDAS PRO Series Microphone Preamplifier (XLR): 16
• Talkback Microphone Input (XLR): 1
• RCA Inputs / Outputs: 2-Feb
• XLR Outputs: 8
• Monitoring Outputs (XLR / ¼" TRS Balanced): 2-Feb
• Aux Inputs/Outputs (¼" TRS Balanced): 6-Jun
• Phones Output (¼" TRS): 1 (Stereo)
• AES50 Ports (KLARK TEKNIK SuperMAC): 2
• Expansion Card Interface: 32 Channel Audio Input / Output
• ULTRANET P-16 Connector (No Power Supplied): 1
• MIDI Inputs / Outputs: 1-Jan
• USB Type A (Audio and Data Import / Export): 1
• USB Type B, rear panel, for remote control: 1
• Ethernet, RJ45, rear panel, for remote control: 1

Mic Input Characteristics

• Design: MIDAS PRO Series
• THD+N (0 dB gain, 0 dBu output): <0.01% unweighted
• THD+N (+40 dB gain, 0 dBu to +20 dBu output): <0.03% unweighted
• Input Impedance (Unbalanced / Balanced): 10 kO / 10 kO
• Non-Clip Maximum Input Level: +23 dBu
• Phantom Power (Switchable per Input): +48 V
• Equivalent Input Noise @ +45 dB gain (150 ? source): -125 dB 22 Hz-22 kHz, unweighted
• CMRR @ Unity Gain (Typical): >70 dB
• CMRR @ 40 dB Gain (Typical): >90 dB

Input/Output Characteristics

• Frequency Response @ 48 kHz Sample Rate: 0 dB to -1 dB 20 Hz-20 kHz
• Dynamic Range, Analogue In to Analogue Out: 106 dB 22 Hz-22 kHz, unweighted
• A/D Dynamic Range, Preamplifier and Converter (Typical): 109 dB 22 Hz-22 kHz, unweighted
• D/A Dynamic Range, Converter and Output (Typical): 109 dB 22 Hz-22 kHz, unweighted
• Crosstalk Rejection @ 1 kHz, Adjacent Channels: 100 dB
• Output level, XLR Connectors (Nominal / Maximum): +4 dBu / +21 dBu
• Output Impedance, XLR Connectors (Unbalanced / Balanced): 50 O / 50 O
• Input impedance, TRS Connectors (Unbalanced / Balanced): 20 kO / 40 kO
• Non-Clip Maximum Input Level, TRS Connectors: +21 dBu
• Output Level, TRS (Nominal / Maximum): +4 dBu / +21 dBu
• Output Impedance, TRS (Unbalanced / Balanced): 50 O / 50 O
• Phones Output Impedance / Maximum output Level: 40 O / +21 dBu (Stereo)
• Residual Noise Level, Out 1-16 XLR Connectors, Unity Gain: -85 dBu 22 Hz-22 kHz, unweighted
• Residual Noise Level, Out 1-16 XLR Connectors, Muted: -88 dBu 22 Hz-22 kHz, unweighted
• Residual Noise Level, TRS and Monitor out XLR Connectors: -83 dBu 22 Hz-22 kHz, unweighted

Display

• Main Screen: 5" TFT LCD, 800 x 480 Resolution, 262k Colours
• Channel LCD Screen: 128 x 64 LCD with RGB Colour Backlight
• Main Meter: 18 Segment (-45 dB to Clip)

Power

• Switch-Mode Power Supply
• Auto-Ranging 100-240 VAC (50/60 Hz) ± 10%
• Power Consumption: 70 W

Physical

• Standard Operating Temperature Range: 5°C – 40°C (41°F – 104°F)
• Dimensions: 478 x 617 x 208 mm (18.8 x 24.3 x 8.2")
• Weight : 14.3 kg (31.5 lbs)
