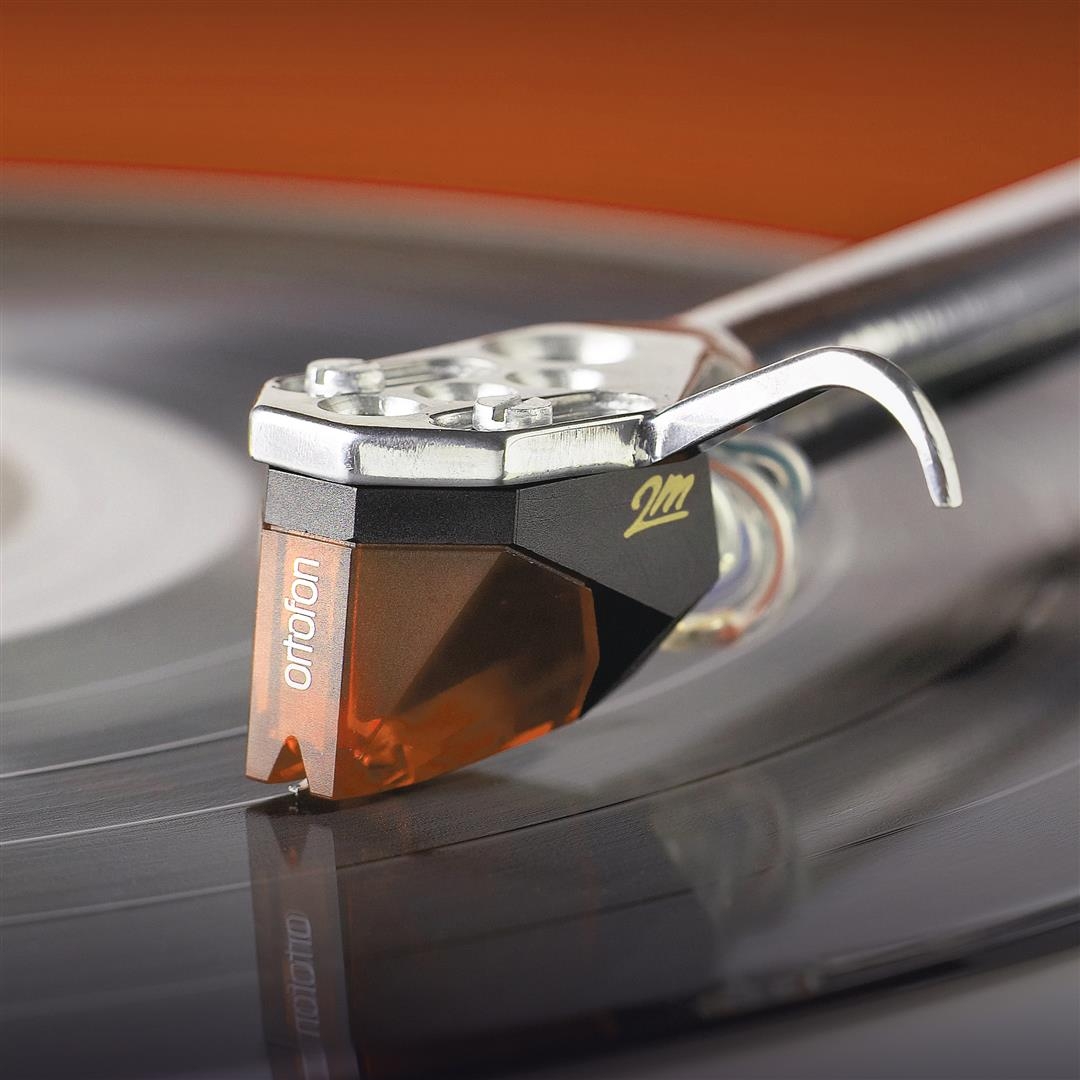

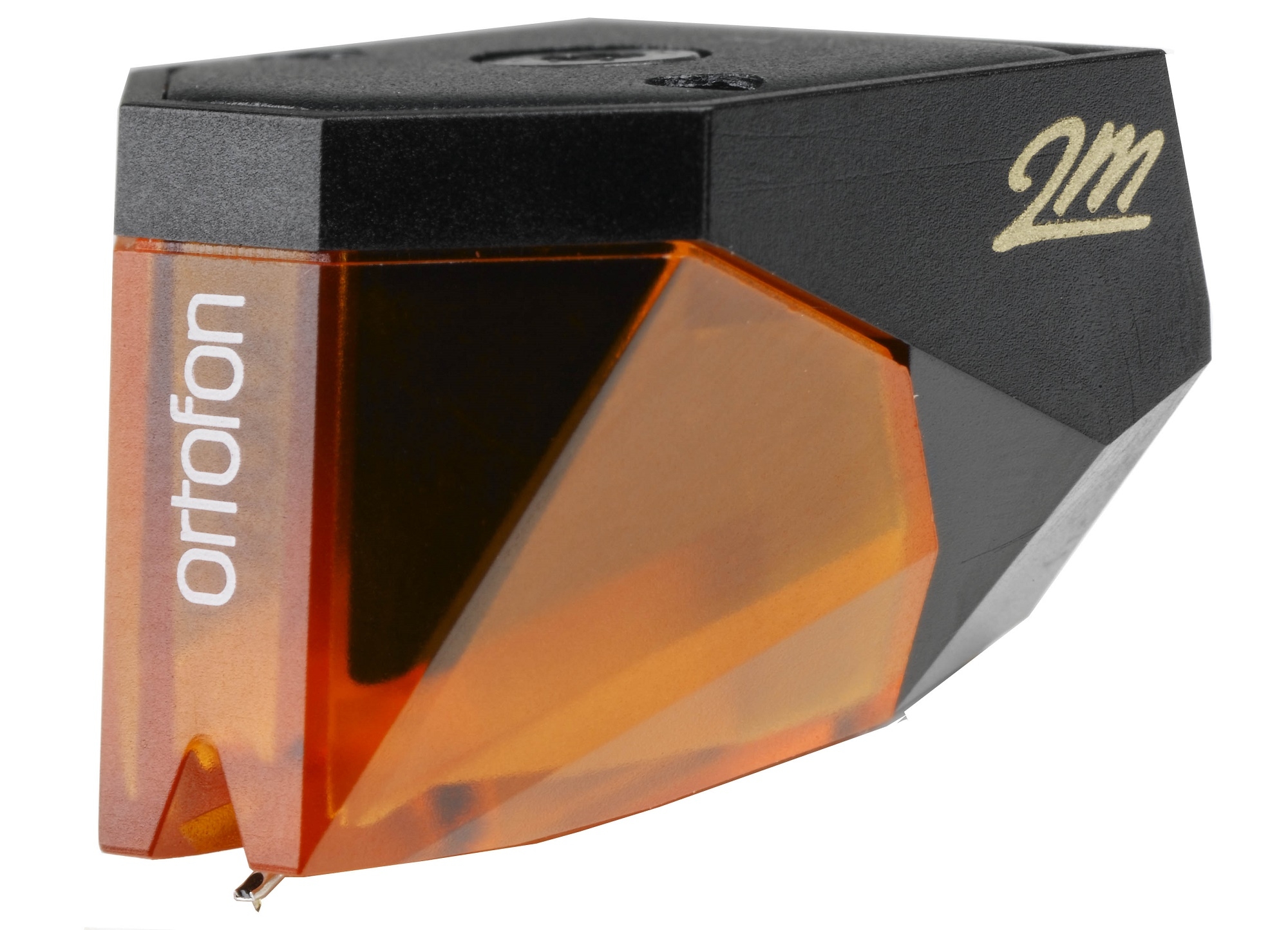

Ortofon 2M Bronze

SKU: APA2018-03436
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
  • 36  Instalments
  • 2 years warranty
    2 Years Warranty
399
In Stock for immediate collection from our store
In Stock for immediate shipment
Add to cart
apa support icon
NEED HELP?

Our expert engineers can assist you!

Κεφαλή ΜΜ(κινητού μαγνήτη)

Προδιαγραφές:

Output voltage at 1000 Hz, 5cm/sec.5 mV
Channel balance at 1 kHz1 dB
Channel separation at 1 kHz26 dB
Channel separation at 15 kHz15 dB
Frequency range at - 3dB20-29.000 Hz
Frequency response20-20.000 + 2 / - 0 dB
Tracking ability at 315Hz at recommended tracking force80 µm
Compliance, dynamic, lateral22 µm/mN
Stylus typeNude Fine Line
Stylus tip radiusr/R 8/40 µm
Tracking force range1,4-1,7g (14-17 mN)
Tracking force, recommended1,5 g (15 mN)
Tracking angle20°
Internal impedance, DC resistance1,2 kOhm
Internal inductance630 mH
Recommended load resistance47 kOhm
Recommended load capacitance150-300 pF
Cartridge colour, body/stylusBlack/Bronze
Cartridge weight 7,2 g
