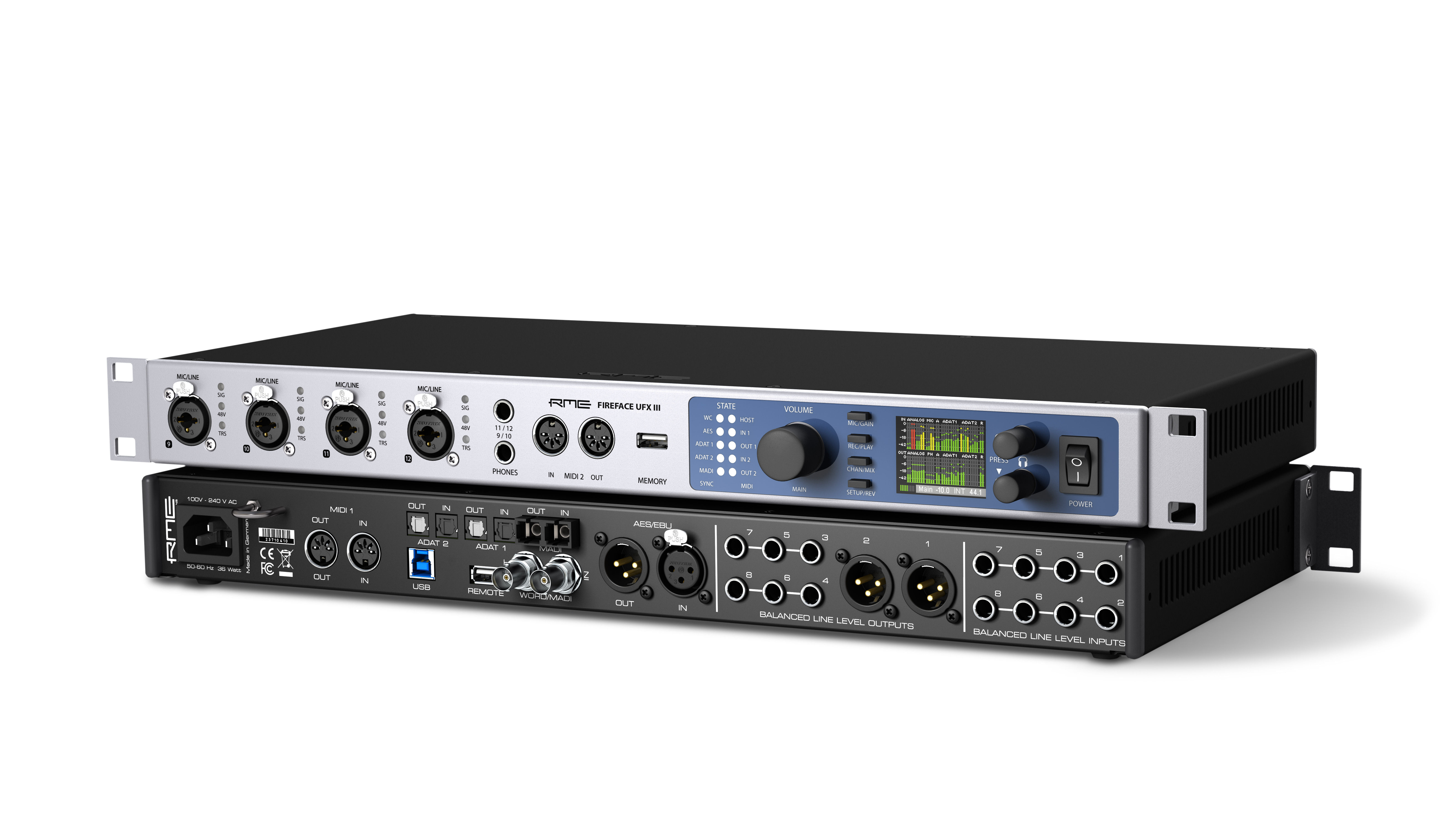

RME Fireface UFX-III USB

Write your review |

SKU: APA2023-00308

Free Shipping
36 Instalments
2 Years Warranty

Free Shipping
36 Instalments
2 Years Warranty

2.439 €

Available for shipping within 2-3 days

Collect from our store within 2-3 days

Add to cart

Instalments:

NEED HELP?

Our expert engineers can assist you!

ONLINE GUIDE

Read our buyer's guide for Κάρτες Ήχου

Description
Specifications

The Fireface UFX III is the center of any multitrack studio, handling up to 94 channels I/O with ease. Its unprecedented flexibility, compatibility, the inclusion of DURec (Direct USB Recording) and RME’s famous low latency hardware and driver designs guarantee flawless operation in any mode and application. Packed with professional features, including SteadyClock FS, MADI I/O (64 channels), a powerful DSP, USB 3.0 (full 94 channel I/O Class Compliant ready), TotalMix FX, Direct USB Recording, and support for the Advanced Remote Control USB (available separately), the Fireface UFX III is the professional’s preferred tool for multitrack recording, mixing and mastering.

Powerful USB 3 Performance

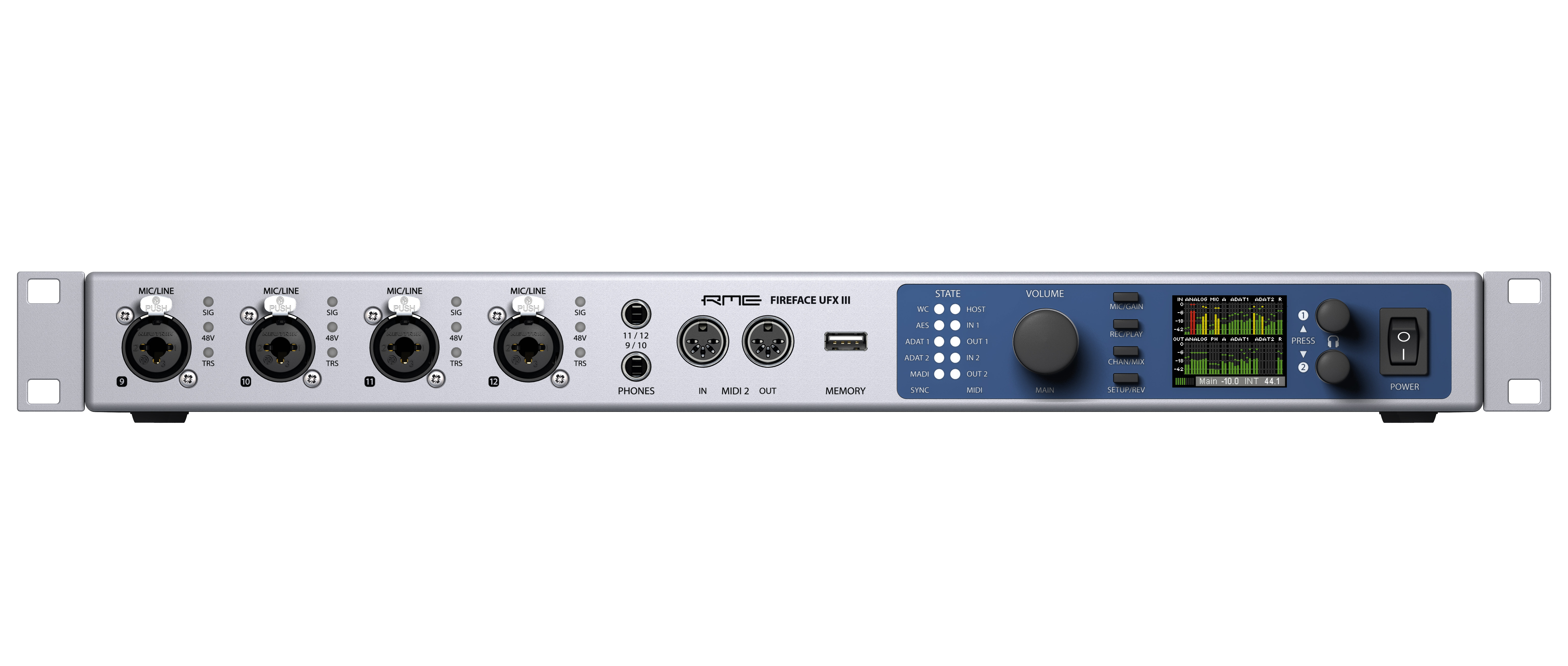

The front panel of the Fireface UFX III provides four high-performance XLR/TRS combo inputs for microphone, instrument and line signals, two stereo headphone jacks with +19 dBu output level, MIDI I/O, and a USB port. In combination with the DURec function (Direct USB Recording), the USB port allows independent recording of selected input and output signals (up to 80 channels) to a connected USB storage medium.

Comprehensive MADI Connectivity

The Fireface UFX III opens the doors to a host of RME and 3rd party digital and analog I/O solutions. Expanding your analog channel count, the ability to route/mix within the digital domain through numerous sources presents many flexible options. Multiple external MADI devices can also be connected in series.

Powerful Applications for Mixing, Monitoring and Measurement included

The Fireface UFX III comes with the TotalMix FX DSP mixer offering comprehensive routing and monitoring options, as well as the DIGICheck Analyzer allowing to measure and analyze the digital data feed in both directions with maximum precision. TotalMix FX can completely replace an external mixer, enabling the creation of multiple latency-free monitor mixes with EQ, Dynamics, Reverb and Delay for any outputs, incl. main monitors and headphone mixes for musicians.

DC-Coupled Outputs - CV/Gate Voltage Control

Most audio interfaces are traditionally designed with what is called 'AC-coupled outputs', where capacitors are used to filter out any extreme low frequencies.Whilst these frequencies are generally considered undesirable for audio - eating into headroom and potentially causing damage to other equipment - one instance where DC-coupling remains desirable is the world of modular synthesizers, where static or slow-moving signals are used for control over various parameters such as pitch note values or LFOs.

USB 3 Class Compliant Audio

The Fireface UFX III operates in two different modes: driver-based USB 3 and Class Compliant. The Class Compliant mode is a standard that is natively supported by operating systems like Windows, Mac OSX and Linux distributions. No proprietary drivers are required, the device will be directly recognized when the CC firmware is loaded.

ARC USB Remote Control - Plug’n Play Plus

The optional available ARC USB connects to your computer via USB, and talks to TotalMix FX directly. It has 15 freely assignable and illuminated buttons, one encoder wheel, and a TS jack to connect a foot switch.

DURec (Direct USB Recording)

DURec is an integrated digital recorder for all inputs and outputs directly to USB memory devices via the front USB port. The Fireface UFX III records on USB thumb drives or hard drives with up to 2 TB capacity. The recording functionality is provided by the internal DSP, and is therefore independent from a connected Windows or Mac computer. The Direct USB Recording converts the Fireface UFX Series both into a stand-alone field recorder and a powerful multichannel live player for previous recordings, e.g. for virtual sound checks. Live concerts, band rehearsals or spontaneous jam sessions can be directly recorded and played back from the medium - even completely stand-alone without computer or software.

More Outstanding Features

TotalMix FX - Mixing/Routing with superior features for Studio and Live Work

Since 2001 TotalMix added unlimited routing and mixing to RME‘s audio interfaces. Its unique capability to create as many independent submixes as output channels available turned it into the most flexible and powerful mixer of its kind.

DigiCheck - The Secret Weapon of High Resolution Audio Measurements

RME Audio interfaces not only provide you with a professional digital audio interface, but also with a free available software tool: DigiCheck, for metering, testing, measuring and analyzing digital audio streams.

SteadyClock FS - Reference class Digital Clocking

Excellent performance in all clock modes and High Quality Analog Conversion to hear your mix as it is, with lowest jitter and highest jitter immunity.

RME USB - Transport audio with lowest latency and industry leading stability

Use your RME audio interface on Mac and PC with reliable, stable, and regularly updated drivers for our products. RME Audio develops its own interface core, it’s not dependent on 3rd parties for upgrades, modifications or bug fixes, so customers can use latest operating systems without interruption or delay.

Specifications

Συνδεσιμότητα

12 x Analog I/O
4 x Mic/Line Input
2 x XLR Out
2 x Phones Output
1 x AES I/O
2 x SPDIF I/O
2 x ADAT I/O
1 x Word Clock I/O
1 x MADI I/O
2 x MIDI I/O
2x MIDI over MADI
USB 3.0 / USB 2.0 compatible

Αναλογικό AD, Line In 1-8, rear

Input: 6.3 mm TRS, electronically balanced
Signal to Noise ratio (SNR) @ LoGain: 116 dB (AES17), 118 dBA
Signal to Noise ratio (SNR) @ +4 dBu: 115 dB (AES17), 117 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 8.9 Hz – 20.4 kHz
Frequency response @ 96 kHz, -0.5 dB: 4.3 Hz – 45.2 kHz
Frequency response @ 192 kHz, -1 dB: 3 Hz – 89 kHz
Filter: Short Delay Sharp, 5 / 5 / 6 samples delay
THD @ -1 dBFS: < -120 dB, < 0.0001 %
THD+N @ -1 dBFS: < -110 dB, < 0.00032 %
Channel separation: > 110 dB
Maximum input level: +19 dBu
Input: 6.3 mm TRS jack, electronically balanced
Input impedance @ 1 kHz: 10 kOhm unbalanced, 10.6 kOhm balanced
Input sensitivity switchable between Lo Gain and +4 dBu
Input level for 0 dBFS @ Lo Gain: +19 dBu
Input level for 0 dBFS @ +4 dBu: +13 dBu
Variable digital gain: 0 to +12 dB
Minimum level for 0 dBFS: +1 dBu, -1.2 dBV

Είσοδος Μικροφώνου 9-12, μπροστά

As AD, but:

Input: XLR, electronically balanced
Input impedance @ 1 kHz: 3.4 kOhm
Signal to Noise ratio (SNR) @ 0 dB Gain: 117 dB (AES17), 119.5 dBA
THD+N @ -1 dBFS, Gain 20 dB: < -110 dB, < 0.00032 %
Frequency response @ 44.1 kHz, -0.1 dB: 10.7 Hz – 20.3 kHz
Frequency response @ 96 kHz, -0.5 dB: 5.1 Hz – 45.0 kHz
Frequency response @ 192 kHz, -1 dB: 3.5 Hz – 88 kHz
EIN @ 60 dB Gain, 150 Ohm, A-Weighted: -129.8 dBu
Gain range: 75 dB
Maximum input level, Gain 0 dB: +18 dBu
Maximum input level, Gain 75 dB: -57 dBu
CLIP LED: 0 dBFS
SIG LED: -60 dBFS

Instrument In 9-12, μπροστά

As AD but:

Input: 6.3 mm TS jack, unbalanced
Input impedance @ 1 kHz: 1 MOhm
Signal to Noise ratio (SNR): 116 dB (AES17), 118.5 dBA
Frequency response @ 44.1 kHz, -0.5 dB: 2.4 Hz – 20.0 kHz
Frequency response @ 96 kHz, -1 dB: 1.6 Hz – 28 kHz
Frequency response @ 192 kHz, -3 dB: 0.8 Hz – 54 kHz
THD+N @ -1 dBFS, Gain 20 dB: < -107 dB, < 0.00045 %
Gain range: 42 dB
Maximum input level, Gain 8 dB: +21 dBu
Maximum input level, Gain 50 dB: -21 dBu

DA, Line Out 3-8, rear

Output: 6.3 mm TRS jack, servo-balanced
Signal to Noise ratio (SNR) @ HiGain: 116.5 dB (AES17), 118.5 dBA
Signal to Noise ratio (SNR) @ +4 dBu: 116 dB (AES17), 118 dBA
Signal to Noise ratio (SNR) @ -10 dBV: 107 dB (AES17), 109 dBA
Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.2 kHz
Frequency response @ 96 kHz, -0.5 dB: 0 Hz – 44.6 kHz
Frequency response @ 192 kHz, -1 dB: 0 Hz – 77.5 kHz
THD+N: < -110 dB, < 0.00032 %
Channel separation: > 110 dB
Output level switchable Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ Hi Gain: +19 dBu
Output level at 0 dBFS @ +4 dBu: +13 dBu
Output level at 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu)
Output impedance: 75 Ohm

DA - Stereo Monitor Output XLR (1-2)

As DA but:

Output: XLR, balanced
Output level switchable 24 dBu, Hi Gain, +4 dBu, -10 dBV
Output level at 0 dBFS @ 24 dBu: +24 dBu
Output level at 0 dBFS @ Hi Gain: +19 dBu
Output level at 0 dBFS @ +4 dBu: +13 dBu
Output level at 0 dBFS @ -10 dBV: +2 dBV (+4.2 dBu)
Output impedance: 150 Ohm
DA - Stereo Monitor Output Phones (9-12)

As DA

Output: 2 x 6.3 mm TRS stereo jack, unbalanced
Maximum output level at 0 dBFS, High: +19 dBu
Maximum output level at 0 dBFS, Low: +2 dBV
Max power per channel @ 32 Ohm load, 0.02% THD: 200 mW (2.5 Vrms, +10 dBu)
Signal to Noise ratio (SNR) @ High: 116.5 dB (AES17), 118.5 dBA
Signal to Noise ratio (SNR) @ Low: 115 dB (AES17), 117 dBA
Output impedance: 2 Ohm

MIDI

2 x MIDI I/O via 5-pin DIN jacks
Galvanically isolated by optocoupled input
Hi-speed mode: Jitter and response time typically below 1 ms
Separate 128 byte FIFOs for input and output

1 x MIDI I/O via MADI

Invisible transmission via User bit of channel 56 (up to 48 kHz)
Invisible transmission via User bit of channel 28 (up to 96 kHz)

Ψηφιακό

Clocks: Internal, ADAT, AES, SPDIF, word clock
Jitter suppression: > 50 dB (> 1 Hz)
Effective clock jitter influence on AD and DA conversion: near zero
PLL ensures zero dropout, even at more than 100 ns jitter
Digital Bitclock PLL for trouble-free varispeed ADAT operation
Supported sample rates: 28 kHz up to 200 kHz

Ψηφιακές Είσοδοι

MADI

Optical via FDDI duplex SC connector
62.5/125 and 50/125 compatible
Coaxial via BNC (Word Clock input), 75 Ohm
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz – 54 kHz
Jitter suppression: > 50 dB (> 1 Hz)

AES/EBU

1 x XLR, transformer-balanced, galvanically isolated, according to AES3-1992
High-sensitivity input stage (< 0.3 Vpp)
SPDIF compatible (IEC 60958)
Accepts Consumer and Professional format
Lock range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)

ADAT Optical

2 x TOSLINK, format according to Alesis specification
Standard: 8 channels 24 bit, up to 48 kHz
Double Speed (S/MUX): 4 channels 24 bit 96 kHz
Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz
Bitclock PLL ensures perfect synchronisation even in varispeed operation
Lock range: 31.5 kHz – 50 kHz
Jitter suppression: > 50 dB (> 1 Hz)

SPDIF optical (ADAT 2)

1 x optical, according to IEC 60958
Accepts Consumer and Professional format
Lock range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)

Word Clock

BNC
Internal termination 75 Ohm switchable
Automatic Double/Quad Speed detection and internal conversion to Single Speed
SteadyClock guarantees super low jitter synchronization even in varispeed operation
Not affected by DC-offsets within the network
Signal Adaptation Circuit: signal refresh through auto-center and hysteresis
Overvoltage protection
Level range: 1.0 Vpp – 5.6 Vpp
Lock Range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)

Ψηφιακές Έξοδοι

MADI

Optical via FDDI duplex SC connector
62.5/125 and 50/125 compatible
Coaxial via BNC (Word Clock input), 75 Ohm
High-sensitivity input stage (< 0.2 Vpp)
Accepts 56 channel and 64 channel mode, plus 96k Frame
Standard: up to 64 channels 24 bit 48 kHz
S/MUX: up to 32 channels 24 bit 96 kHz
S/MUX4: up to 16 channels 24 bit 192 kHz
Lock range: 25 kHz – 54 kHz
Jitter suppression: > 50 dB (> 1 Hz)

AES/EBU

XLR, transformer-balanced, galvanically isolated, according to AES3-1992
Output level Professional 4.5 Vpp, Consumer 2.6 Vpp
Format Professional according to AES3-1992 Amendment 4
Format Consumer (SPDIF) according to IEC 60958
Single Wire mode, sample rate 28 kHz up to 200 kHz

ADAT

1 x TOSLINK, format according to Alesis specification
Standard: 8 channels 24 bit, up to 48 kHz
Double Speed (S/MUX): 4 channels 24 bit 96 kHz
Quad Speed (S/MUX4): 2 channels 24 bit 192 kHz

SPDIF optical (ADAT 2)

1 x optical, according to IEC 60958
Accepts Consumer and Professional format
Lock range: 27 kHz – 200 kHz
Jitter suppression: > 50 dB (> 1 Hz)

Word Clock

BNC
Max. output voltage: 5 Vpp
Output voltage @ 75 Ohm termination: 4.0 Vpp
Output impedance: 10 Ohm
Frequency range: 27 kHz – 200 kHz

Γενικά

Power supply: Internal switching PSU, 100 - 240 V AC, 36 Watts
Idle power consumption: 19 Watts
Typical power consumption: 22-25 Watts
Dimensions including rack ears (WxHxD): 483 x 44 x 210 mm (19" x 1.73" x 8.5")
Dimensions without rack ears (WxHxD): 440 x 44 x 210 mm (17.3" x 1.73" x 8.3")
Total depth: 240 mm (9.4”)
Weight: 3 kg ( 6.6 lbs)
Temperature range: +5° up to +50° Celsius (41° F up to 122°F)
Relative humidity: < 75%, non condensingAll trademarks are the property of their owners
