Antelope Orion 32+ Gen 4

Write your review |

SKU: APA2023-00924

Free Shipping
6
Interest FreeInstalments
2 Years Warranty

Free Shipping
6
Interest FreeInstalments
2 Years Warranty

2.594 €

Upon Order

Add to cart

Instalments:

432,33 € / month

NEED HELP?

Our expert engineers can assist you!

ONLINE GUIDE

Read our buyer's guide for Κάρτες Ήχου

Description
Specifications

UNMATCHED PRECISION. UNWAVERING LEGACY.

For over a decade now the Orion 32 line of interfaces has been revolutionizing the world of professional audio recording and production. The latest revision of this iconic 1U studio centerpiece steps up the game by taking the best of its predecessors and adjusting it to the ever- growing needs and standards of the industry. Orion 32+ Gen4 incorporates the latest Antelope Audio tech, drastically boosting the unit’s potential.

STANDARD-SETTING CONVERSION

Antelope Audio interfaces are globally renowned for their industry-leading conversion and clocking, and the new Orion 32 is, as always, at the forefront. Its AD/DA converters perform at up to 130dB dynamic range, ensuring Gen4’s leading position among high-end multichannel interfaces. The high-performing conversion is powered by the same proprietary 64-bit Acoustically Focused Clocking technology & jitter management algorithm, which over the years has proven irreplaceable for countless productions.

MORE AUDIO THAN YOU CAN HANDLE

The Orion 32+ Gen4 offers double the Thunderbolt™ channel streaming and MADI connectivity compared to its predecessor. With 128 channels available, up to four units can be daisy-chained through a single computer connection, making it ideal for large recording sessions, live sound, complex post-production setups, and broadcast facilities. It is the preferred companion for large mixing consoles, hardware effects processing, analog summing boxes, reel-to-reel setups, hardware synthesizers, and more.

MORE THAN JUST A PRETTY FACE

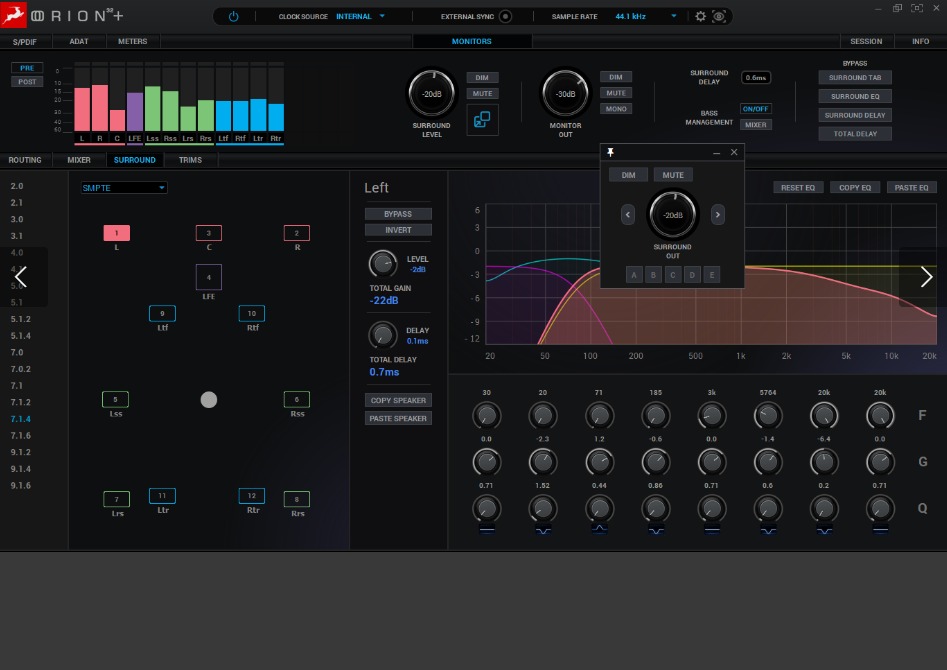

Orion 32+ Gen4 comes not only with an updated look and drastically boosted hardware but with a redesigned Software Control Panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level adjustments, mixer settings and monitoring controls, among others. A handy monitoring pop-out widget has been introduced for hands-on output level control and preset recall, featuring an always-on-top function. The unit’s signal routing matrix is now fully customizable with convenient patching and less complexity in mind.

Specifications

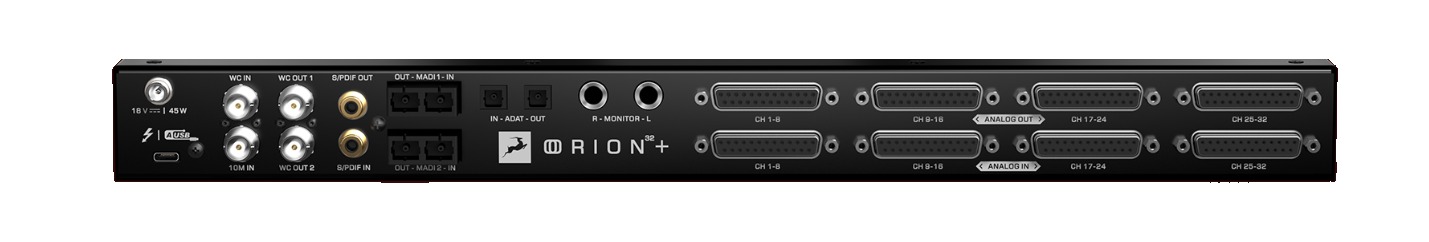

CONNECTIVITY

32 analog input channels over 4 × D-Sub 25 connectors with AC/DC coupling switch (TASCAM standard);
32 analog output channels over 4 × DC-coupled D-Sub 25 connectors (TASCAM standard);
1 × Dedicated stereo monitor output over 1⁄4 TRS;
Computer connectivity via single USB-C port supporting either Thunderbolt™ 3 or USB 2.0, for 128 and 32 channels of I/O respectively, at up to 192kHz (Thunderbolt™ 2 also supported via а Thunderbolt™ 3 to 2 adapter);
Custom macOS & Windows drivers for low latency performance in native DAW applications over both Thunderbolt™ and USB;
Digital I/O: 128 channels of optical MADI (up to 48kHz, reduced at higher SRs), 8 channels of ADAT (up to 48kHz, reduced at higher SRs), and 2 channels over S/PDIF (up to 192kHz);
Clocking I/O: 1 × word clock input, 2 × word clock outputs, 1 × 10М input.

CLOCKING & CONVERSION

Proprietary 64-bit AFC™ (Acoustically Focused Clocking) technology delivering spacious stereo image with distinct separation for an unrivalled level of detail;
High-resolution A/D and D/A conversion ensuring artefact-free audio with 130dB dynamic range on line and monitor outputs and 122dB on line inputs and D/A conversion ensuring artefact-free audio with 130dB dynamic range on line and monitor outputs and 122dB on line inputs.

OPTIONAL MULTICHANNEL MONITORING SYSTEM*

23+ formats readily compatible, from stereo through surround and immersive audio;
Speaker calibration processing for up to 16 channels or 9.1.6 Dolby Atmos;
Extensive monitoring control functionality designed for seamless workflow;
MRC remote controller compatible as an optional system add on; *Feature can be unlocked either via purchasable license available in our software store or with the purchase of an MRC remote controller.

IN-THE-BOX CONTENT
