Royer dBooster2

The Royer model R-DB22 dBooster2 features two channels of dBooster ribbon & dynamic micro-phone signal boosting and impedance buffering technology. Each channel also doubles as a high-impedance DI.

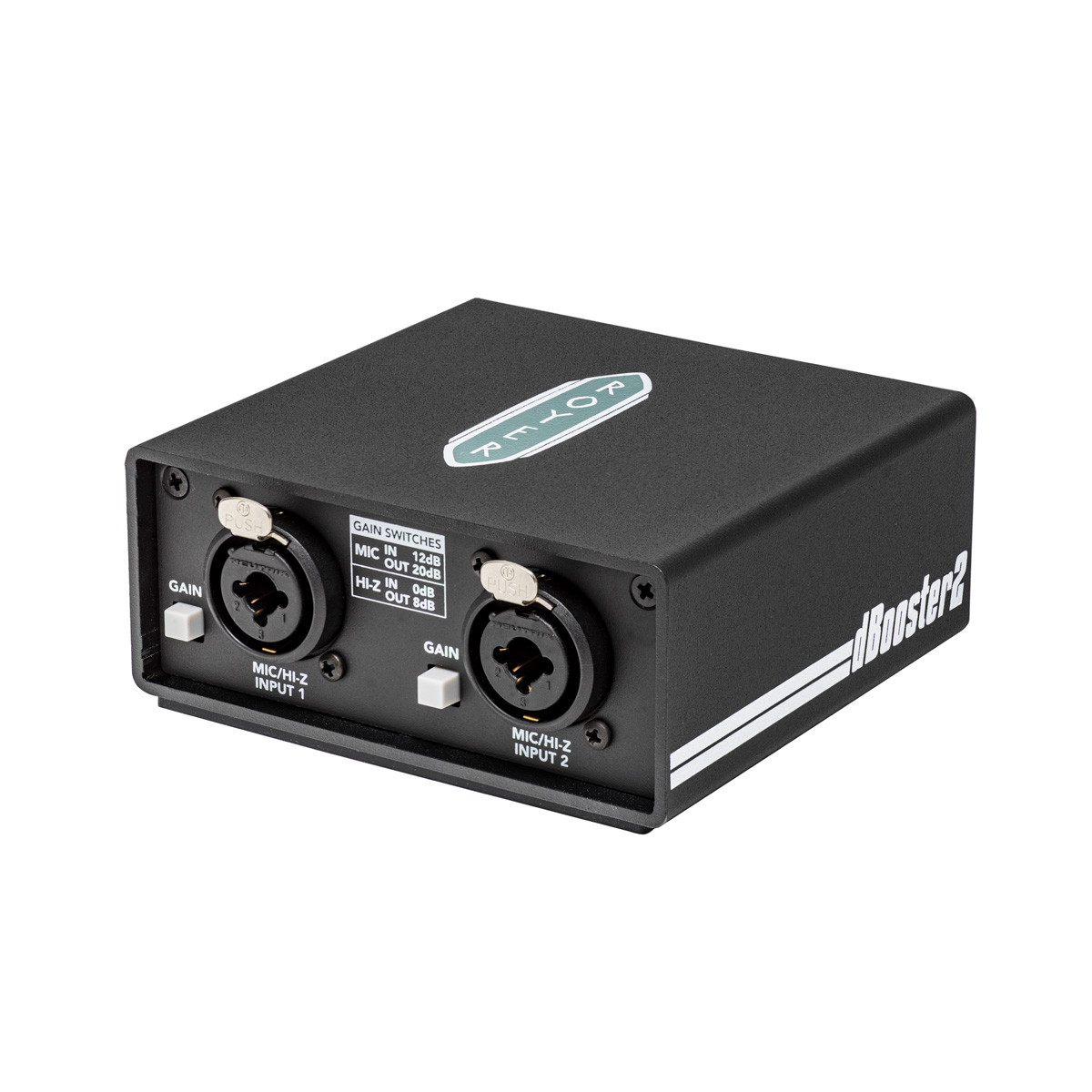

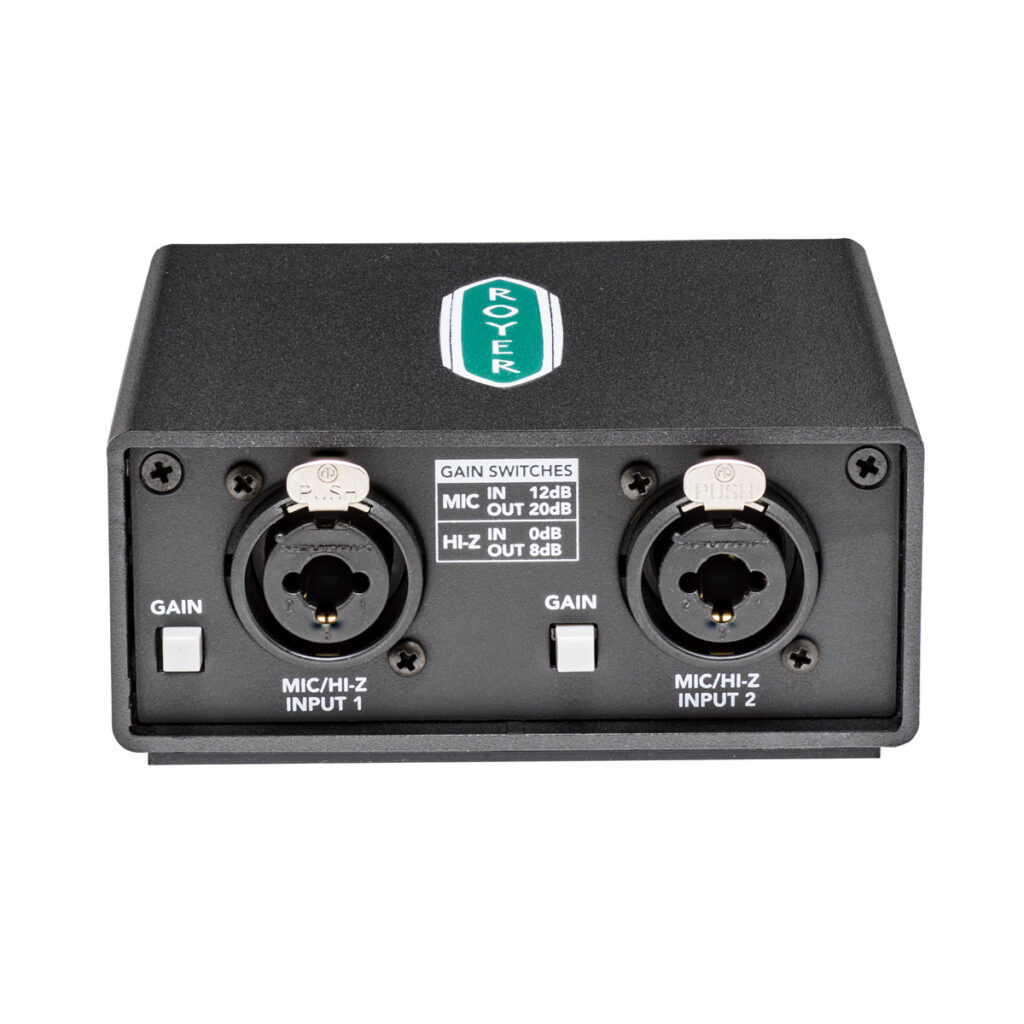

When used as a signal booster, both channels of the dBooster2 increase the level of passive low-output ribbon and dynamic microphones with a minimum of distortion or coloration. Designed for professional applications, each dBooster2 channel offers two levels of clean gain boost: 12dB or 20dB, selectable by a front panel switch.

The dBooster2’s Class A input presents a high source impedance to microphones, minimizing loading (damping) and improving headroom. By utilizing the 12/20dB gain switch, optimum balance between gain and headroom can be achieved for a variety of uses.

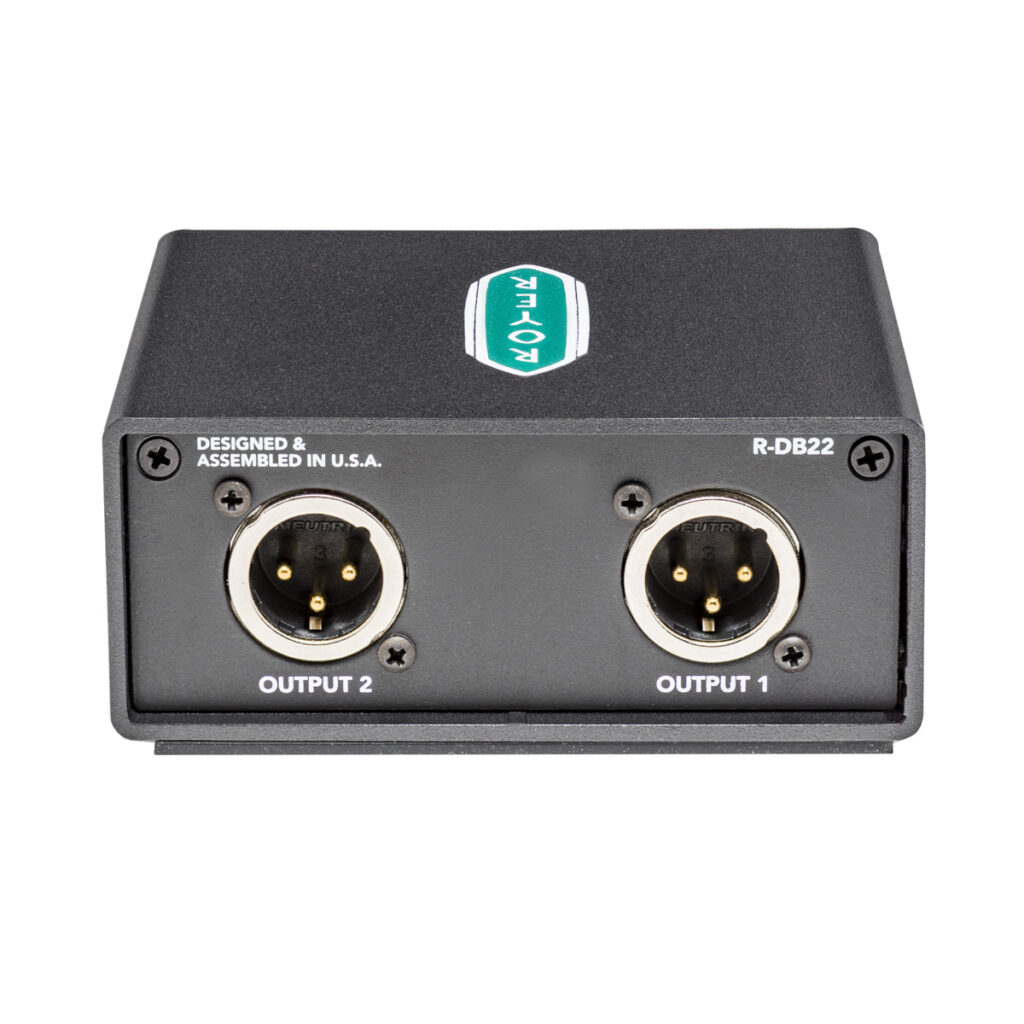

The dBooster2’s low-impedance output is an increased microphone-level signal that can drive a digital interface directly or a standard microphone preamplifier. It also minimizes signal loss on long cable runs.

When used as a DI for unbalanced guitar level sources, the dBooster2 provides either 0dB or 8dB of gain, selectable from the front panel switch. The single ended high-impedance (230K-Ohm) DI input maintains headroom and gain regardless of load, with minimal distortion or coloration.

RECOMMENDED APPLICATIONS

• Miking any low-volume sound source (acoustic instruments, vocals, etc.)
• Recording direct to a DAW interface
• Use on long cable runs to retain sound quality
• DI for direct electric guitar, electric bass, and other instruments
