Wharfedale Diamond 12.2 Light Oak (Pair)

Still compact but with increased cabinet volume and driver size for even more potency, the Wharfedale DIAMOND 12.2 offers a little more from a traditional standmount (or bookshelf) speaker format and embodies the history and performance values of the Wharfedale DIAMOND series.

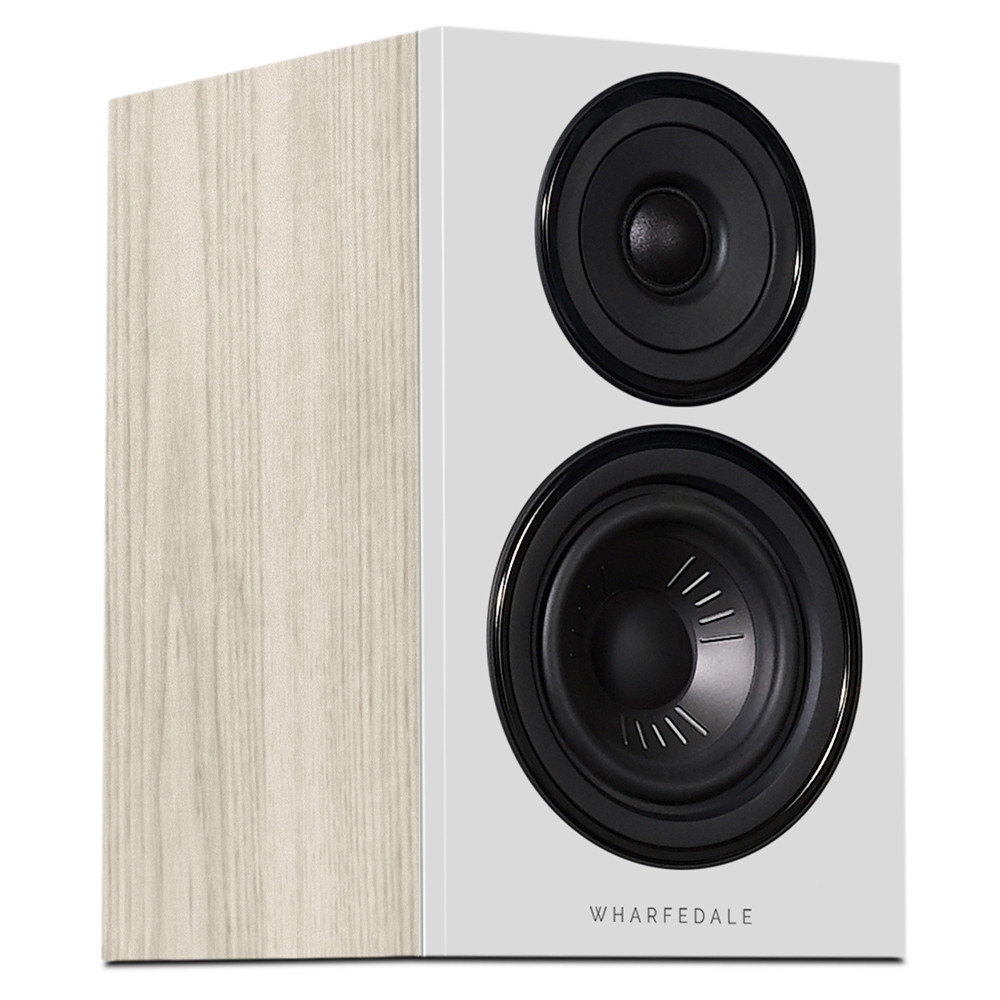

Perfect for larger rooms and more powerful 2-channel hi-fi systems, the DIAMOND 12. features a high-performance 150mm (6.5”) KlarityTM driver for extended, tight bass, and a superb 25mm (1”) woven polyester dome tweeter for open and smoothly extended high frequencies.

A voice coil beyond this class

The voice coil is wound on a high-power epoxy/glass fibre bobbin highly unusual in speakers at this price level. This has the advantage of not adding eddy currents and delivering greater power handling than an aluminium bobbin, whilst also being much stiffer than the Kapton type associated with this price-class.

DIAMOND highs

The 25mm dome is made from a woven polyester film with a high-loss coating to deliver open and smoothly extended high frequencies. The magnet system and the front plate have been optimised for wide dispersion and uncompressed behaviour. The front plate is flat and exposes the dome as much as possible; only a very short duct on the front plate balances the acoustic load and improves the SPL (sound pressure level) measurement.

A crossover of style

The crossover network uses an acoustic LKR 24dB topology. This includes air-core inductors of the type more commonly found in high-end speakers, selected because they produce the lowest distortion of all inductor types. As the resistance of the coil is higher than a standard laminated steel or ferrite core inductor, the magnetic structure of the mid/bass driver has been modified to compensate, resulting in fast, clean bass with no distortion from the inductor.

Firm and fair

The DIAMOND 12.1 ’s rear-ported enclosure is precisely sized so that the internal volume works in harmony with the drive unit system to deliver the desired sonic result. A multi-layered sandwich design subdues the identifiable characteristics of the cabinet’s ‘sound’. Even the resonant properties of the glue between the layers was measured to determine the optimum combination.

Brace yourself

Inside the cabinet, Intelligent Spot Bracing connects opposite walls with a specific form of the wood brace to achieve an optimal reduction of cabinet resonance. These braces are precisely modelled by computer simulation to improve upon the commonplace ‘figure of eight’ brace, which may simply transfer resonance from one wall to another.
